InnoSwitch3-Pro

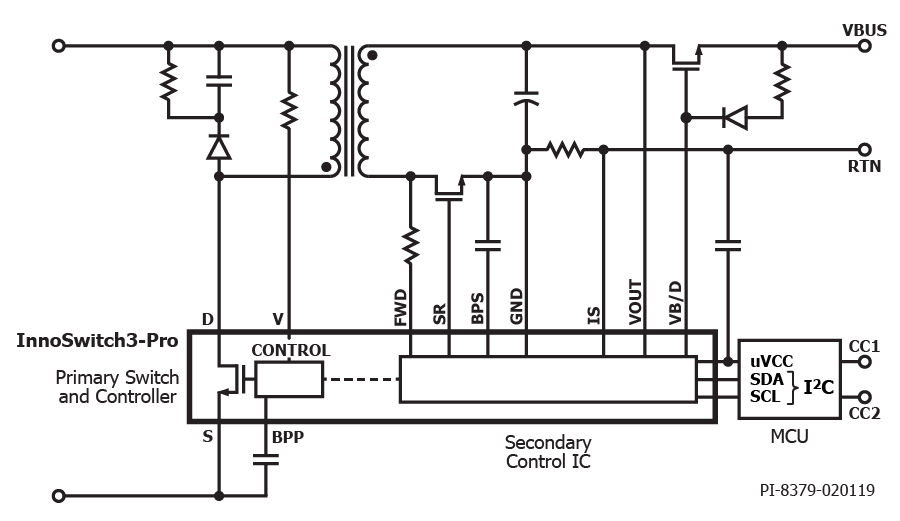

內含整合式高壓切換器、同步整流和 FluxLink 回授的數位控制的離線式 CV/CC QR 返馳式切換開關 IC

應用
過濾器 Filter Products
顯示1 - 17項產品, 共17項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 230V
輸出功率 (最大) - 敞開式, 230V
PowiGaN?
擊穿電壓
輸出功率 (最大) - 封閉式, 通用
輸出功率 (最大) - 敞開式, 通用
保護功能
輸出配置
控制方式
拓撲結構
過熱反應
自動重啟和過壓反應
產品類別
輸入電壓 (最大)
輸入電壓 (最小)
運作溫度 (最大)
運作溫度 (最小)
內部開關
電纜壓降補償
IC封裝
輸出電壓 (最小)
輸出電壓 (最大)
開關頻率 (最大)
開關頻率 (最小)
MSL等級
次級回應
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off

InnoSwitch3-Pro 系列的 IC 可大幅簡化完全程式化之高效電源供應器的開發和製造,尤其針對小型機殼的電源供應器。通用 I²C 介面可動態控制輸出電壓與電流以及多個可配置的功能。遙測提供程式化功能和故障模式的報告。

InnoSwitch3-Pro 裝置適用於AC/DC 電源供應器應用,其中微調 (10 mV,50 mA) 輸出電壓和調整是必要的。典型實作由搭載 I²C 連接埠的系統微處理器或專用微處理器構成,該微處理器用於配置、控制和監督電源子系統的操作。uVCC 接腳在獨立實作中提供偏壓至微處理器,例如 USB PD 轉換器和充電器。

產品特色

透過 I²C 介面進行數位控制

  • 動態調整電源供應器電壓與電流
  • 在處理器中斷時遙測狀態讀回
  • 完整的可配置功能集

PowiGaN 技術

高度整合、佔用面積小

  • 多模準諧振 (QR)/CCM 返馳式控制器、高壓切換器、二次側感測和同步整流驅動器
  • 最佳化整個線電壓和負載範圍內的效率
  • 整合式 FluxLink、HIPOT 隔離式回授連結
  • 瞬間暫態響應
  • 驅動低成本 N 通道 FET 系列負載切換開關
  • 外部 MCU 的整合式 3.6 V 供應
  • 4.7 Ω 高速SR下拉電阻 (僅限H302 零件)

EcoSmart – 節能

  • 無負載時低於 30 mW,包括線路感測和 MCU
  • 輕鬆符合全球所有節能法規
  • 低散熱

進階保護/安全功能

  • 具有精準電壓啟動/關閉和過壓保護的輸入電壓監測器
  • 具有獨立配置響應的輸出 OV/UV 故障偵測
  • 開路 SR FET 閘極偵測
  • 磁滯回復過溫保護
  • 可針對系統故障設定監視程式計時器功能
  • 針對電源供應器狀態和故障監控進行遙測
  • IS引腳短路/輸出短路故障檢測 (僅限H302 零件)

絕對安全且符合法規

  • 增強絕緣
  • 絕緣電壓大於 4000 VAC
  • 100% 符合生產 HIPOT 測試
  • 通過 UL1577 和 TUV (EN60950, EN62368) 安全認證

綠色環保封裝

  • 無鹵素,符合 RoHS 標準

應用

  • 高效的 USB PD 3.0 + PPS/QC 轉換器
  • 多通訊協定轉換器,包括 QuickCharge、AFC、FCP、SCP
  • 直充式行動裝置充電器
  • 多化學成分工具和通用電池充電器
  • 可調整 CV 和 CC LED 鎮流器設計

資源
