InnoSwitch3-CE

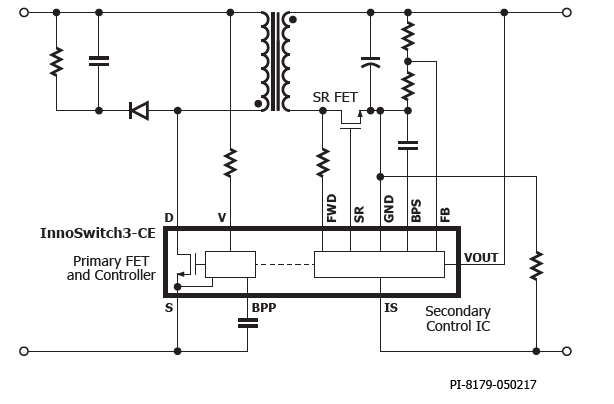

離線 CV/CC QR 返馳式切換開關 IC 具有整合式 650 V MOSFET、同步整流和 FluxLink 回授。適用於最高達 65 W 的應用

過濾器 Filter Products
顯示1 - 29項產品, 共29項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 230V
輸出功率 (最大) - 敞開式, 230V
電纜壓降補償
自動重啟閾值
過熱反應
輸出功率 (最大) - 封閉式, 通用
輸出功率 (最大) - 敞開式, 通用
自動重啟和過壓反應
次級回應
擊穿電壓
拓撲結構
控制方式
輸出配置
輸出電壓 (最大)
輸出電壓 (最小)
產品類別
IC封裝
輸入電壓 (最大)
輸入電壓 (最小)
運作溫度 (最大)
運作溫度 (最小)
保護功能
內部開關
開關頻率 (最大)
開關頻率 (最小)
MSL等級
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Cable Drop Compensation 300 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 12.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 12.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 12.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
Cable Drop Compensation 300 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 12.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Cable Drop Compensation 300 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 300 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 250 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 270 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 240 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 300 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 240 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Cable Drop Compensation 240 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 240 mV
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 0 mV
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Cable Drop Compensation 380 mV
Auto-Restart Threshold OL
Over-Temperature Response Latch Off
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Breakdown Voltage 650 V
Topology Flyback
Control Scheme Fluxlink
Output Profile CC
Voltage - Output (Max) 24 V
Voltage - Output (Min) 5 V
Product Type IC
IC Package inSOP-24D
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3

InnoSwitch3-CE IC 系列產品大幅簡化了返馳式功率轉換器的設計與製造程序,特別是要求高效率和 (或) 小型尺寸的功率轉換器。InnoSwitch3-CE 系列產品將一次側和二次側控制器及安全額定回授機制整合在單一 IC 中。

InnoSwitch3-CE 系列裝置整合了多種保護功能,包括線電壓過壓和欠壓保護、輸出過壓和過電流限制,以及過溫關機。此系列裝置支援常見的鎖定與自動重新啟動機制組合,可滿足多種應用的要求,如充電器、轉換器、消費性電子產品和工業系統。此裝置分為具有和不具有纜線壓降補償兩款。

產品特色

高度整合、佔用面積小

  • 整個滿載範圍內的效率高達 94%
  • 整合了多模準諧振 (QR)/CCM 返馳式控制器、650 V MOSFET、二次側感測和同步整流驅動器
  • 整合式 FluxLink、HIPOT 隔離回授連結
  • 卓越的 CV/CC 準確度,不受外部元件的影響
  • 使用外部感測電阻器實現精準的可調輸出電流感測

EcoSmart – 節能

  • 無負載時功率低於 15 mW (包含線電壓感測)
  • 輕鬆符合全球所有節能法規
  • 低散熱

進階保護/安全功能

  • 二次側 MOSFET 或二極體短路保護
  • 開路 SR FET 閘極偵測
  • 快速輸入線電壓 UV/OV 保護

選用功能

  • 具有多種設定的纜線壓降補償
  • 可變輸出電壓、定電流分析
  • 輸出 OVP/UVP 的自動重新啟動或鎖定故障回應
  • 多重輸出 UV 故障臨界值
  • 鎖定或磁滯一次側過溫保護

全面的安全性與合規性

  • 增強絕緣
  • 絕緣電壓大於 4000 VAC
  • 100% 生產 HIPOT 測試
  • 通過 UL1577 和 TUV (EN60950, EN62368) 安全認證
  • 優異的雜訊耐受性,讓設計達到一系列 EN61000-4 (包括 EN61000-4-2、4-3 (30 V/m)、4-4、4-5、4-6、4-8 (100 A/m) 和 4-9 (1000 A/m)) 及 Ford FMC1278 (RI-115) 要求的 A 級效能標準。
