InnoSwitch3-Pro

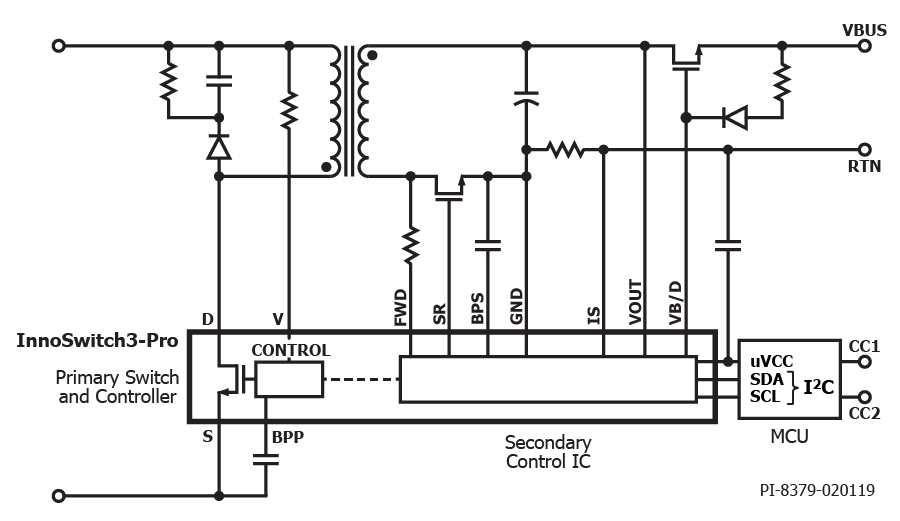

高耐圧スイッチ、同期整流回路、及び FluxLink フィードバックを内蔵したデジタル制御可能なオフライン CV/CC QR フライバック スイッチング電源用 IC

アプリケーション
フィルタ 製品を隠す
1 ~ 17個の商品を表示、 合計17個
Product Parts Table
製品
データ シート
出力 (最大) 密閉型, 230V
出力 (最大) オープンフレーム, 230V
PowiGaN?
絶縁破壊電圧
出力 (最大) 密閉型, ユニバーサル
出力 (最大) オープンフレーム, ユニバーサル
保護機能
出力プロファイル
制御方式
トポロジー
過熱応答
自動再起動と過電圧応答
製品タイプ
入力電圧 (最大)
入力電圧 (最小)
動作温度 - 最大
動作温度 - 最小
内部スイッチ
ケーブル落下補償
ICパッケージ
出力電圧 (最小)
出力電圧 (最大)
スイッチング周波数 (最大)
スイッチング周波数 (最小)
MSL評価
二次応答
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off

製品ハイライト

I2C インターフェイスによってデジタル制御

  • 電源の電圧と電流を動的に調整
  • プロセッサ割り込みによるテレメトリ ステータスのリードバック
  • さまざまな構成可能な機能

PowiGaN 技術

高集積化、小さな実装面積

  • マルチモード擬似共振 (QR)/CCM フライバック コントローラ、高耐圧スイッチ、二次側制御、及び同期整流ドライバ
  • あらゆる入力、出力範囲で効率を最適化
  • FluxLink、HIPOT 絶縁、フィードバック リンクを内蔵
  • 優れた過渡応答特性
  • 低コストの N チャンネル FET直列負荷スイッチを駆動
  • 外付け MCU 用の3.6 V 電源内蔵
  • 4.7 Ω SRプルダウン抵抗 (H302 部品で利用可能)

EcoSmart - 高エネルギー効率

  • 入力センスと MCU を含めて無負荷時に 30 mW 未満を達成
  • 世界中のあらゆるエネルギー効率規制に容易に適合
  • 低電力損失

優れた保護/安全特性

  • 高精度な起動/停止と過電圧保護に対応した入力電圧モニタ機能
  • 個別に構成可能な出力 OV/UV 異常の検出
  • SR FET ゲートのオープン検出
  • 自動復帰タイプ過熱保護機能
  • システム異常のための設定可能ウォッチドッグ タイマー機能
  • 電源のステータスと異常の監視のためのテレメトリ
  • ISピン短絡/出力短絡障害検出 (H302 部品で利用可能)

安全規格及び規制に完全に準拠

  • 強化絶縁
  • 絶縁電圧 > 4000 VAC
  • 生産ラインでの HIPOT 100% 試験に対応
  • UL1577 及び TUV (EN60950, EN62368) 安全認証を取得

グリーンパッケージ

  • ハロゲン化合物不使用、RoHS 指令適合

応用例

  • 高効率の USB PD 3.0 及び PPS/QC アダプタ
  • QuickCharge、AFC、FCP、SCP を含むマルチプロトコル アダプタ
  • 直接充電モバイル デバイス充電器
  • マルチケミストリの工具充電器及び汎用充電器
  • 調整可能 CV/CC の LED バラスト設計

リソース
