InnoSwitch3-CP

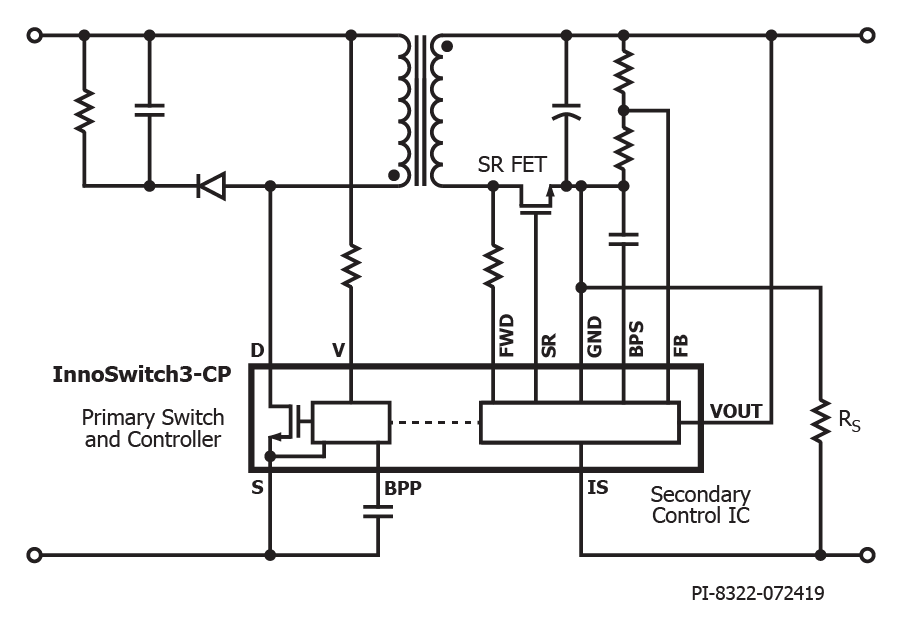

高電圧スイッチ、同期整流、FluxLink フィードバック、及び定電力プロファイル内蔵のオフライン CV/CC QR フライバック スイッチング電源用 IC

アプリケーション
フィルタ 製品を隠す
1 ~ 34個の商品を表示、 合計34個
Product Parts Table
製品
データ シート
出力 (最大) 密閉型, 230V
出力 (最大) オープンフレーム, 230V
PowiGaN?
絶縁破壊電圧
ケーブル落下補償
出力 (最大) 密閉型, ユニバーサル
出力 (最大) オープンフレーム, ユニバーサル
自動再起動しきい値
過熱応答
出力プロファイル
自動再起動と過電圧応答
二次応答
制御方式
出力電圧 (最小)
製品タイプ
入力電圧 (最大)
入力電圧 (最小)
動作温度 - 最大
動作温度 - 最小
保護機能
内部スイッチ
ICパッケージ
出力電圧 (最大)
スイッチング周波数 (最大)
スイッチング周波数 (最小)
トポロジー
MSL評価
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CP
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Auto-Restart Threshold 55%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CV/CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 300 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Hysteretic
Output Profile CP
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Output Profile CC
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Cable Drop Compensation 0 mV
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Auto-Restart Threshold 3.45 V
Over-Temperature Response Auto-restart
Output Profile CC
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Latch Off
Control Scheme Fluxlink
Voltage - Output (Min) 5 V
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Internal Switch Yes
IC Package inSOP-24D
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
Topology Flyback
MSL Rating 3

InnoSwitch3-CP ファミリーの IC は、特に高い効率や小型化を必要とするフライバック電源コンバータの設計と製造を飛躍的に簡素化します。InnoSwitch3-CP ファミリーは、一次側コントローラと二次側コントローラ及び安全規格取得のフィードバックを単一の IC に内蔵しています。

InnoSwitch3-CP ファミリーのデバイスは、入力過電圧保護、入力低電圧保護、出力過電流制限、過熱シャットダウン機能を含む複数の保護機能を内蔵しています。デバイスは、急速充電、USB、PD の設計などのアプリケーションに必要なラッチ タイプとオートリスタートの動作の一般的な組み合わせをサポートします。デバイスには、ケーブル電圧降下補正があるタイプとないタイプがあります。

製品ハイライト

高集積化、小さな実装面積

  • 擬似共振 (QR)/CCM フライバック コントローラ、高電圧一次側スイッチ、二次側検出回路及び同期整流ドライバ
  • FluxLink、HIPOT 絶縁対応フィードバック回路内蔵
  • 負荷指向型および急速充電型のプロトコルICと容易にインタフェース
  • 定電力 (CP) プロファイルは、出力電流及び電圧を連続的に調整して充電時間を最小化
  • 高精度 CV/CC/CP、外付け部品から独立
  • 外付け IS 抵抗により、カスタム CC プログラミングが可能
  • 0%-100%-0% 負荷ステップで瞬間的な過渡応答

PowiGaN 技術

EcoSmart– 高エネルギー効率

  • 全負荷範囲で最大 95% の効率
  • ラインセンスを含めて30 mW未満の無負荷
  • 世界中のあらゆるエネルギー効率規制に容易に適合
  • 低放熱ロス

優れた保護/安全特性

  • 二次側 スイッチまたはダイオードによる短絡保護
  • SR FET ゲートのオープン検出
  • 高速入力 UV/OV 保護

オプション機能

  • 複数の設定によるケーブル電圧降下補正
  • 可変出力電圧、定電流のプロファイル
  • 出力 OVP/UVP のためのオートリスタートまたはラッチ タイプの異常応答
  • 多出力 UV 不良スレッシュホールド
  • ラッチ タイプまたは自動復帰タイプの一次側過熱保護

安全規格及び規制に完全に準拠

  • 強化絶縁
  • 絶縁電圧 > 4000 VAC
  • 生産ラインでの HIPOT 100% 試験
  • UL1577 及び TUV (EN60950, EN62368) 安全認証を取得
  • 優れたノイズ耐性により、EN61000-4 (EN61000-4-2、4-3 (30 V/m)、4-4、4-5、4-6、4-8 (100 A/m)、及び 4-9 (1000 A/m)) と Ford FMC1278 (RI-115) に対してクラス "A" 性能を達成する設計が可能

リソース
