Product Parts Table
Product
Data Sheet
Max X Capacitance
Total Series Resistance
Breakdown Voltage
IC Package
Mounting Type
Product Type
Temperature - Operating (Max)
Temperature - Operating (Min)
Data Sheet View PDF
Max X Capacitance 100 nF to 6 microF
Total Series Resistance 7.5 MOhm to 142 kOhm
Breakdown Voltage 1000 V
IC Package SO-8
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 110 °C
Temperature - Operating (Min) -10 °C

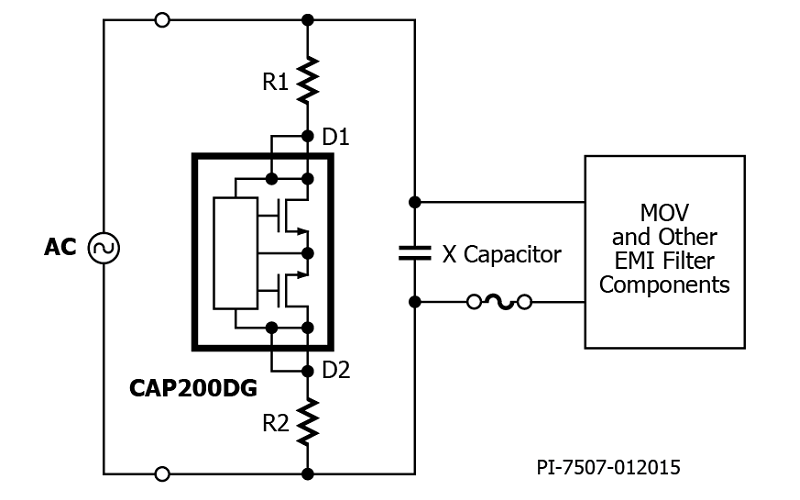

When AC voltage is applied, CAP200DG blocks current flow in the X capacitor safety discharge resistors, reducing the power loss to less than 5 mW, or essentially zero at 230 VAC. When AC voltage is disconnected, CAP200DG automatically discharges the X capacitor by connecting the series discharge resistors. This operation allows total flexibility in the choice of the X capacitor to optimize differential mode EMI filtering and reduce inductor costs, with no change in power consumption.

Designing with CAP200DG is simply a matter of selecting the appropriate external resistor values for the X capacitor value being used to achieve the necessary time constant. The simplicity and ruggedness of the two terminal CAP200DG IC makes it an ideal choice in systems designed to meet EuP Lot 6 requirements.

Key Features

  • One part to cover X capacitor values from 100 nF to 6 mF
  • Blocks current through X capacitor discharge resistors when AC voltage is connected
  • Automatically discharges X capacitors through discharge resistors when AC is disconnected
  • Simplifies EMI filter design – larger X capacitor allows smaller inductive components with no change in consumption
  • Only two terminals – meets safety standards for use before or after system input fuse
  • >4 mm creepage on package and PCB
  • Self supplied – no external bias required
  • High common mode surge immunity – no external ground connection
  • High differential surge withstand – 1000 V internal MOSFETs
  • NEMKO and CB certification
