BridgeSwitch

High-Voltage, Self-Powered, Half-bridge Motor Driver with Integrated Device Protection and System Monitoring

Applications
Filters Filter Products
Showing 1 - 10 of 10 Products
Product Parts Table
Product
Data Sheet
Current - Continuous RMS
Control Features
Breakdown Voltage
IC Package
Protection Features
Topology
MSL Rating
Product Type
Mounting Type
Temperature - Operating (Min)
Temperature - Operating (Max)
Current - Output (Max)
Data Sheet View PDF
Current - Continuous RMS 0.22 A
Control Features Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 1A
Data Sheet View PDF
Current - Continuous RMS 0.50 A
Control Features Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 2A
Data Sheet View PDF
Current - Continuous RMS 0.75 A
Control Features Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 3A
Data Sheet View PDF
Current - Continuous RMS 1.00 A
Control Features Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 6A
Data Sheet View PDF
Current - Continuous RMS 1.33 A
Control Features Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 12A
Data Sheet View PDF
Current - Continuous RMS 0.22 A
Control Features Phase Current Info, Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 1A
Data Sheet View PDF
Current - Continuous RMS 0.50 A
Control Features Phase Current Info, Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 2A
Data Sheet View PDF
Current - Continuous RMS 0.75 A
Control Features Phase Current Info, Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 3A
Data Sheet View PDF
Current - Continuous RMS 1.00 A
Control Features Phase Current Info, Remote Fault Reset, Self-Biased Drivers, Status Interface
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 6A
Data Sheet View PDF
Current - Continuous RMS 1.33 A
Control Features Phase Current Info, Self-Biased Drivers, Status Interface, Remote Fault Reset
Breakdown Voltage 600 V
IC Package InSOP-24C
Protection Features Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Undervoltage, Overtemperature, System Temperature, Thermal Overload
Topology LLC Half Bridge
MSL Rating 3
Product Type IC
Mounting Type Surface Mount
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Current - Output (Max) 12A

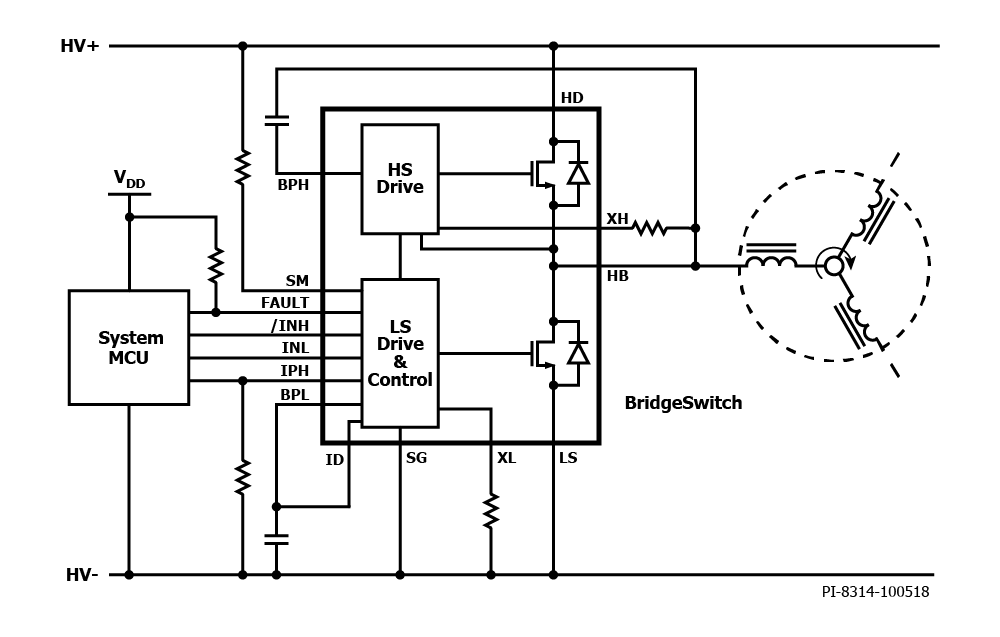

The BridgeSwitch family of integrated half-bridges dramatically simplifies the development and production of high-voltage inverter driven single- or multi-phase PM or BLDC motor drives. It incorporates two high-voltage N-channel power FREDFETs with low and high-side drivers in a single small-outline package. The internal power FREDFETs offer ultra-soft and ultrafast diodes ideally suited for hard switched inverter drives. Both drivers are self-supplied eliminating the need for an external auxiliary power supply. BridgeSwitch provides a unique instantaneous phase current output signal simplifying implementation of sensor-less control schemes. The low-profile, compact footprint surface mount package offers extended creepage distances and allows heat sinking of both power FREDFETs through the printed circuit board.

BridgeSwitch offers internal fault protection functions and external system level monitoring. Internal fault protection includes cycle-by-cycle current limit for both FREDFETs and two level thermal overload protection. External system level monitoring includes DC bus sensing with four undervoltage levels and one overvoltage level as well as driving external sensors such as an NTC. The bi-directional bussed single wire status interface reports observed status changes.

Key Benefits

Product Highlights

Highest Performance and Design Flexibility

  • Fully integrated half-bridge stage with up to 98% efficiency
    • Eliminates external heat sink at rated continuous RMS current
  • 600 V N-channel power FREDFETs
    • Ultra-soft, fast recovery diode
  • Accurate instantaneous phase current information output (BRD126X)
    • Eliminates external sensing and amplification circuitry
  • Self-biased low-side and high-side drivers
    • Eliminates need for auxiliary power supply
  • Small footprint surface mount inSOP-24C package
    • Exposed pads enable heat sinking through PCB
  • Controlled FREDFET switching speed reduces EMI

Enhanced Safety and Reliability Features

Status Interface

  • Bi-directional bussed open Drain single wire interface
  • Reports status updates to system MCU
    • Successful power-up
    • Internal over-current or temperature faults
    • System level faults
    • Includes device identification
  • Status query through system MCU
  • Device fault reset through system MCU

Applications

  • Single- or multi-phase high-voltage PM and BLDC motor drives
    • Up to 400 W typical inverter output power
  • Appliances including dish washers and refrigerators
  • Condenser fans in high efficiency air conditioners
