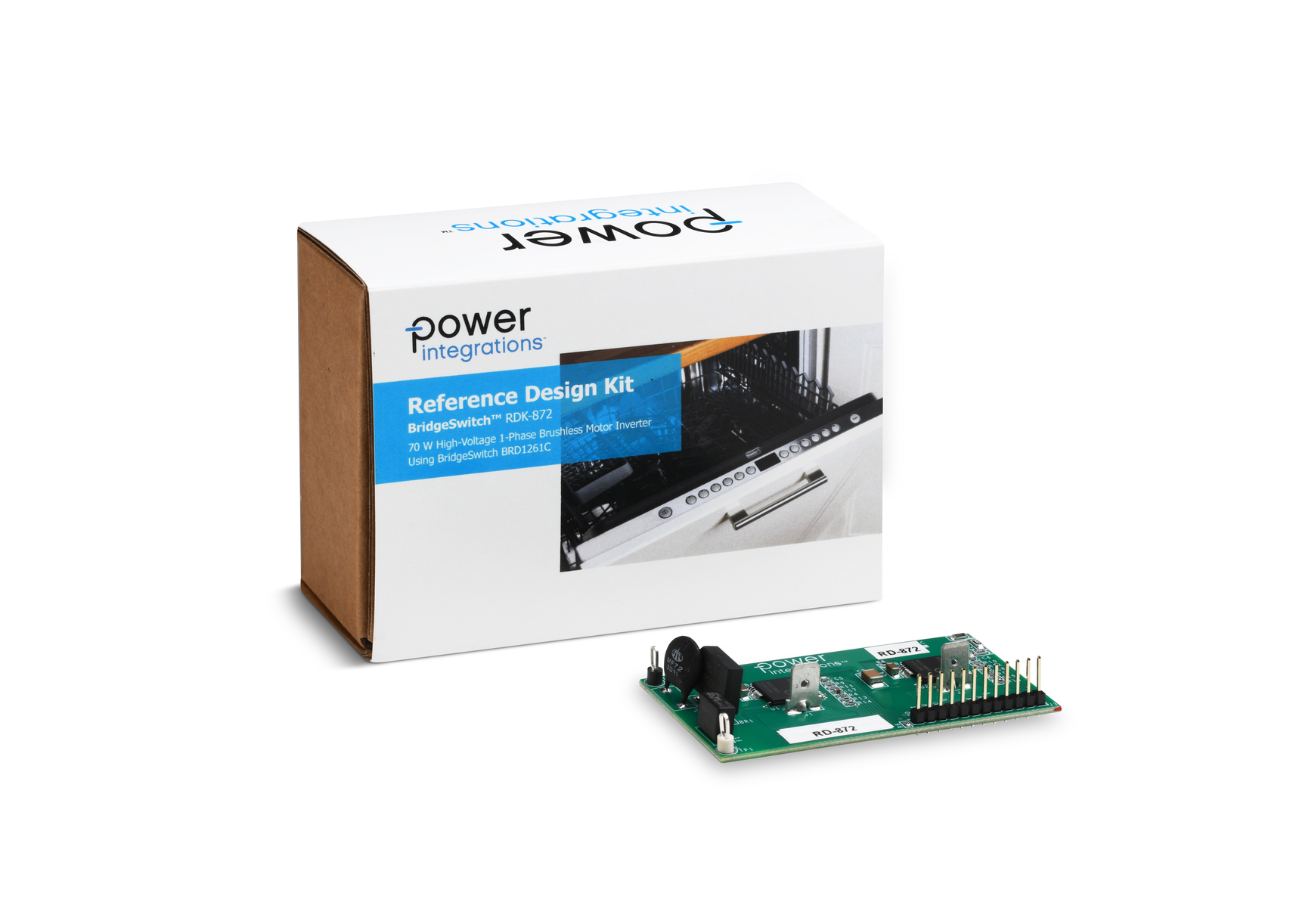

RDK-872 - Reference Design Kit for BridgeSwitch

70 W Single-Phase Inverter Using BridgeSwitch for Fan Application

Applications
Design Document
Download PDF View PDF
Specifications
Associated Product Numbers BRD1261C
Design Type Reference Design Reports (RDR)
Topology LLC Half Bridge
Vin (min) 180
Vin (max) 265
P (NoLoad) 200.00 mW
Efficiency 97.00%
Number of outputs 1
Output Power 70.00 W
Associated Parts BRD1261C
Gerber File rdr-872_gerber.zip
