InnoSwitch4-CZ

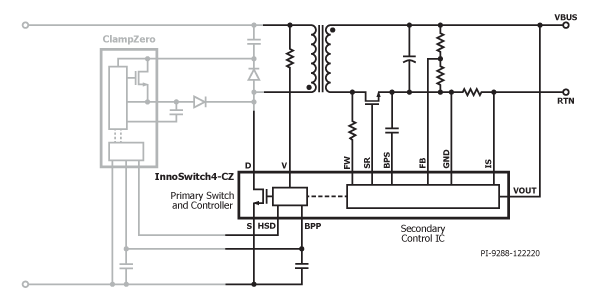

採用 750 V PowiGaN、主動箝位驅動和同步整流的離線式 CV/CC ZVS 返馳式整合切換開關 IC 與 ClampZero 主動箝位 IC 搭配使用

應用
過濾器 Filter Products
顯示1 - 15項產品, 共15項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 230V
輸出功率 (最大) - 敞開式, 230V
輸出功率 (最大) - 封閉式, 通用
輸出功率 (最大) - 敞開式, 通用
保護功能
自動重啟和過壓反應
自動重啟閾值
輸出配置
過熱反應
次級回應
擊穿電壓
IC封裝
輸入電壓 (最小)
輸入電壓 (最大)
輸出電壓 (最小)
輸出電壓 (最大)
PowiGaN?
控制方式
內部開關
電纜壓降補償
產品類別
開關頻率 (最大)
拓撲結構
運作溫度 (最小)
運作溫度 (最大)
MSL等級
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 75.0 W
Output Power (Max) - Open Frame, 230V 80.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 75.0 W
Output Power (Max) - Open Frame, 230V 80.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 75.0 W
Output Power (Max) - Open Frame, 230V 80.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 75.0 W
Output Power (Max) - Open Frame, 230V 80.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 75.0 W
Output Power (Max) - Open Frame, 230V 80.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 95.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 95.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 95.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 95.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 95.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 110.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 110.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 110.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Output Profile CC
Over-Temperature Response Latch Off
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 110.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 110.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Output Profile CV
Over-Temperature Response Hysteretic
Secondary Response Latch Off
Breakdown Voltage 750 V
IC Package inSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available

InnoSwitch4-CZ 系列 IC 與 ClampZero 系列主動箝位 IC 搭配使用,可大幅提高返馳式功率轉換器的效率,尤其是那些要求小型外觀尺寸的轉換器。InnoSwitch4-CZ 系列將一次側和二次側控制器以及安全額定回授整合在單一 IC 中。

InnoSwitch4-CZ 與 ClampZero 的組合大幅降低了系統和一次側切換開關損失,從而實現了極高的功率密度。InnoSwitch4-CZ 還整合了多項保護功能,包括輸出過壓和過電流限制以及過溫關機。現有裝置支援充電器、轉換器、消費性電子產品和工業系統等應用所需的鎖定和自動重新啟動保護模式的常見組合。

產品特色

高度整合、佔用面積小

  • 具有適用於 ClampZero (主動箝位 IC) 的驅動器的零電壓切換 (ZVS) 返馳式控制器
  • 穩健的 750 V PowiGaN 一次側切換開關
  • 穩態切換頻率 (最高至 140 kHz) 可使變壓器尺寸減至最小
  • 同步整流驅動器和二次側感測
  • 整合式 FluxLink、HIPOT 隔離式回授連結
  • 卓越的 CV/CC 準確度,不受外部元件的影響
  • 使用外部感測電阻器,實現精準的輸出電流感測調整

EcoSmart – 節能型

  • 效率高達 95%
  • 無負載功耗低於 30 mW,包括線路感測進階保護/安全功能
  • 開路 SR FET 閘極偵測
  • 快速輸入線路 UV/OV 保護

選用功能

  • 可變輸出電壓、定電流分析
  • 輸出 OVP/UVP 的自動重新啟動或鎖定故障回應
  • 多重輸出 UV 故障臨界值
  • 鎖定或磁滯一次側過溫保護

絕對安全且符合法規

  • 增強型絕緣大於 4000 VAC
  • 100% 生產 HIPOT 測試
  • 通過 UL1577 和 TUV (EN60950) 安全認證
  • 優異的噪音耐受性讓設計輕鬆符合達到 A 級效能的 EN61000-4 一系列測試標準;EN61000-4-2、4-3 (30 V/m)、4-4、4-5、4-6、4-8 (100 A/m) 和 4-9 (1000 A/m)

綠色環保封裝

  • 無鹵素,符合 RoHS 標準

Related Products
