HiperPFS-5

採用整合式 750 V  PowiGaN 切換開關的進階功率因數修正 (PFC) 控制器 IC 進行了最佳化,以在整個負載範圍內實現高功率因數 (PF) 和效率。

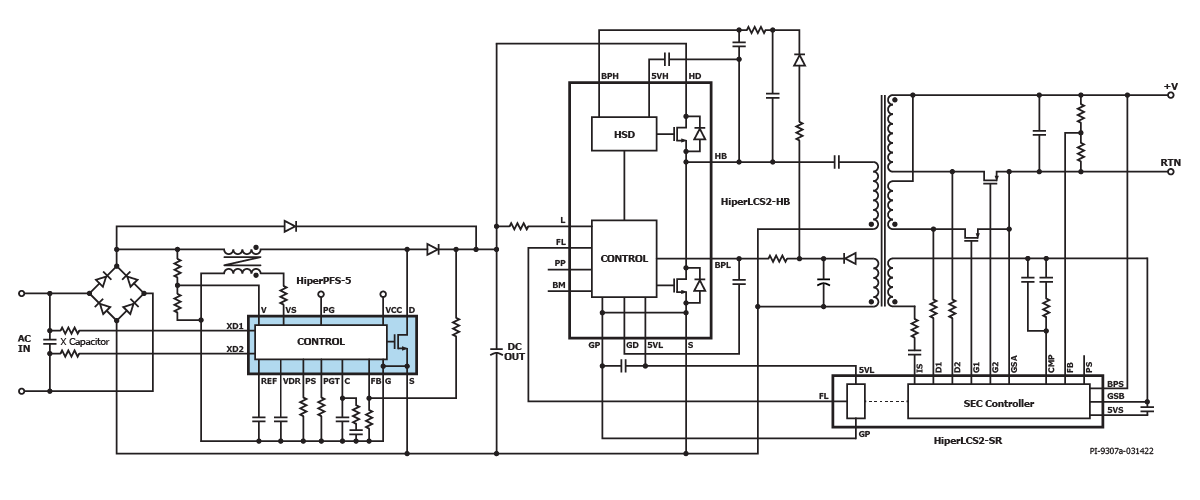

  • 對於高達 240 W 的 LLC 架構,將 PFS517xF 與 HiperLCS-2 晶片組配對
  • 對於高達 110 W 的返馳式架構,將 PFS527xF (自偏壓式) 與 InnoSwitch4-CZ 切換開關 IC 配對

過濾器 Filter Products
隱藏篩選器
Filter Products
顯示1 - 9項產品, 共9項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 通用
擊穿電壓
PowiGaN?
輸出電壓 (最小)
輸出電壓 (最大)
IC封裝
控制功能
保護功能
平均開關頻率 (90 VAC)
平均開關頻率 (230 VAC)
產品類別
拓撲結構
輸出配置
內部開關
輸入電壓 (最小)
輸入電壓 (最大)
自動重啟和過壓反應
運作溫度 (最小)
運作溫度 (最大)
MSL等級
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 77.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 115.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 130.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 165.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 185.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 240.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Control Features Self-Biased Drivers
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 115.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 130.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, Univ 165.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
Voltage - Output (Min) 400 V
Voltage - Output (Max) 440 V
IC Package InSOP-T28F
Protection Features Input Undervoltage, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Switching Frequency (Avg. 90 VAC) 70 kHz
Switching Frequency (Avg. 230 VAC) 100 kHz
Product Type IC
Topology Boost
Output Profile CV
Internal Switch Yes
Voltage - Input (Min) 90 V
Voltage - Input (Max) 305 V
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3

產品詳情

HiperPFS™-5 系列進階功率因數修正 IC 利用 750 V PowiGaN™ 切換開關的低切換損失來最佳化效率。高整合度和新穎的控制算法透過減少整體元件數量和縮小電感器尺寸來最小化系統佔位面積。該裝置採用薄型的表面黏著式 InSOP-T28F 封裝,可將熱量直接發散到 PCB 基板上,從而免除了體積龐大的散熱片。穩健的 HiperPFS-5 裝置在低線電壓至 305 VAC 的範圍內運作,降額超過 80%。

產品特色

高度整合、佔位面積小

  • 通用應用的峰值輸出功率高達 240 W,無需散熱片
  • 具有無功損電流感測功能的整合式 750 V PowiGaN
  • 維持高達 305 VAC 的高功率因數 (PF),並且可以在線電壓上升期間以高達 460 VAC 的電壓持續運作
  • 準諧振 DCM 控制可確保低切換損失且電感器尺寸比傳統 CrM PFC 更小,並允許使用低成本升壓式二極體
  • 整合了自動 X 電容器放電和高電壓啟動以用於自偏壓
  • InSOP 封裝中的源電位冷卻墊可實現高效率的 PCB 製冷能力並將 EMI 降至最低

在整個負載範圍內都具有高效率和高功率因數 (PF)

  • 在 10% 到 100% 的負載條件下,效率高達 98.3%
  • 在 230 VAC 條件下,無負載功耗小於 40 mW
  • 在 20% 負載條件下,功率因數 (PF) 高達 0.96
  • 可設定的電源備妥 (PG) 訊號,用於主動突波控制
  • 使用者可選的功率限制功能可實現快速製作原型:在同一設計中測試不同尺寸的 HiperPFS-5 IC 以實現快速最佳化
  • 數位線峰值偵測提供強大效能,即使使用的是 UPS 或發電機產生的失真輸入電壓
  • 數位功率因數增強器可針對 EMI 濾波器和橋式整流器失真進行補償
  • 啟用 PFC 架構並聯以增加輸出功率
  • 通過 IEC62368 安全認證

應用

  • 電腦、印表機、LCD 電視
  • 電玩遊戲主機
  • 高功率轉換器和 USB PD 3.1 快速充電
  • 高功率 LED 照明設備
  • 工業機具和家電用品
  • 80 Plus™ Platinum
  • 一般 PFC 轉換器
