1SC0450

单通道SCALE-2驱动核,最高的集成水平,集成DC/DC电源和光纤接口的灵活的4.5 kV和6.5 kV门极驱动器

筛选器 筛选产品
显示1 - 8项产品, 共8项
Product Parts
产品
数据手册
IGBT电压等级
接口类型
逻辑输入电压
支持的模块
支持的拓扑
输出功率/通道-最大
并行支持?
時間 - 輸出下降
時間 - 輸出上升
电源电压 (典型)
保护功能
栅极导通电压
驱动模式
Gate Peak Current (Max)
栅极关断电压
Isolation Technology
隔离类型
主/外围
最大开关频率
通道数
三防漆?
技术
Data Sheet 查看PDF
IGBT Voltage Class 4500 V
Interface Type Electrical
Logic Input Voltage 15
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 6500 V
Interface Type Electrical
Logic Input Voltage 15
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 4500 V
Interface Type Electrical
Logic Input Voltage 15
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 6500 V
Interface Type Electrical
Logic Input Voltage 15
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 4500 V
Interface Type Fiber Optic
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 6500 V
Interface Type Fiber Optic
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 4500 V
Interface Type Fiber Optic
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2
Data Sheet 查看PDF
IGBT Voltage Class 6500 V
Interface Type Fiber Optic
Supported Module Type IGBT
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Power - Output/Channel (Max) 8.0 W
Paralleling Support? No
Time - Output Fall 25 ns
Time - Output Rise 30 ns
Supply Voltage (Typ) 15 V
Protection Features Adv Active Clamping, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Gate Turn-on Voltage +15.0 V
Driving Mode Direct-Independent
Gate Peak Current (Max) +50 A
Gate Turn-off Voltage --9.5 V
Isolation Technology Galvanic
Isolation Type Basic
Main/Peripheral N/A
Max Switching Frequency 10.0 kHz
Number of Channels 1
Conformal Coated? No
Technology SCALE-2

坚固耐用且极具性价比,专用于4.5 kV和6.5 kV IGBT模块的单通道门极驱动解决方案。1SC0450V和1SC0450E的门极电流水平和DC/DC电源可支持IGBT模块并联使用,相比分立器件的方案,大大减少了元件数量,因此能够显著地提高可靠性,并减低成本。此外,还实现了额外的功能(例如,可在发生VISO至COM或门极-发射极短路时为驱动器提供保护的电源短路保护),并提供进一步的驱动优势。可以保证超过15年的工作寿命。

高度集成和高可靠性的4.5kV和6.5kV门极驱动器可降低多电平应用的设计成本,并且支持IGBT的串联应用。

  • 单通道驱动器,可驱动4.5kV和6.5kV的IGBT

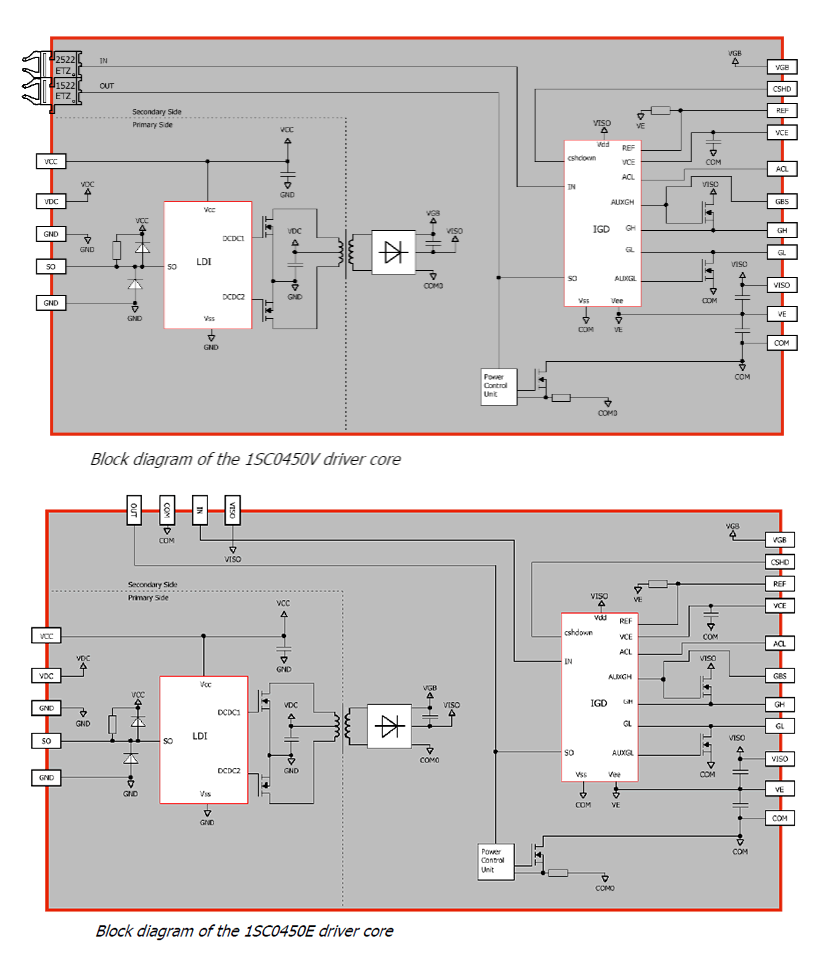

  • 两个版本:光纤接口(1SC0450V)和非隔离电气接口(1SC0450E)
  • 高级有源钳位,动态钳位
  • ±50A门极电流,+15V/-10V门极驱动电压
  • 驱动功率6W(85℃)
  • 高可靠性(元件数量减少)
  • 支持IGBT模块并联
  • 较高的设计灵活性
  • 支持IGBT传统并联方式
  • 高级有源钳位功能
  • 短路保护和欠压保护功能
  • 符合IEC 61800-5-1和IEC 60664-1的安全隔离标准
  • 符合UL标准
  • 通过RoHS认证
