HiperPFS-3

采用集成高压MOSFET和Qspeed二极管的PFC控制器可在整个负载范围内提供高功率因数及高效率

筛选器 筛选产品
显示1 - 17项产品, 共17项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 持续性, 通用
輸出功率 (最大) - 峰值, 通用
輸出功率 (最大) - 持续性, 230V
輸出功率 (最大) - 峰值, 230V
IC封装
输入电压 (最小)
输入电压 (最大)
拓扑结构
保护功能
击穿电压
启动电压
电源电压 (Vcc/Vdd)
过热反应
安装类型
产品类型
运作温度 (最大)
运作温度 (最小)
自动重启和过压反应
输出配置
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 110 W
Output Power (Max) - Peak, Univ 120 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 110 W
Output Power (Max) - Peak, Univ 120 W
IC Package eSIP-16G
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 130 W
Output Power (Max) - Peak, Univ 150 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 130 W
Output Power (Max) - Peak, Univ 150 W
IC Package eSIP-16G
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 185 W
Output Power (Max) - Peak, Univ 205 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 185 W
Output Power (Max) - Peak, Univ 205 W
IC Package eSIP-16G
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 230 W
Output Power (Max) - Peak, Univ 260 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 290 W
Output Power (Max) - Peak, Univ 320 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 350 W
Output Power (Max) - Peak, Univ 385 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 405 W
Output Power (Max) - Peak, Univ 450 W
IC Package eSIP-16D
Voltage - Input (Min) 90 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 0.74V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 255 W
Output Power (Max) - Peak, 230V 280W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 315 W
Output Power (Max) - Peak, 230V 350W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 435 W
Output Power (Max) - Peak, 230V 480W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 550 W
Output Power (Max) - Peak, 230V 610W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 675 W
Output Power (Max) - Peak, 230V 750W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 810 W
Output Power (Max) - Peak, 230V 900W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC
Data Sheet 查看PDF
Output Power (Max) - Continuous, 230V 900 W
Output Power (Max) - Peak, 230V 1000W
IC Package eSIP-16D
Voltage - Input (Min) 180 V
Voltage - Input (Max) 264 V
Topology Boost PFC
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Breakdown Voltage 530 V
Voltage - Start-up 1.57V
Voltage - Supply (Vcc/Vdd) 12V
Over-Temperature Response Hysteretic
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Auto-Restart & Overvoltage Response Hysteretic
Output Profile CC

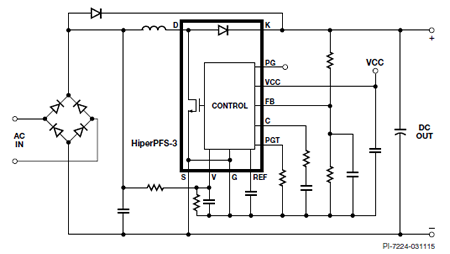

HiperPFS™-3系列器件将一个连续导通模式(CCM)升压PFC控制器、栅极驱动器、超低反向恢复二极管和高压功率MOSFET集成在一个紧凑且具良好散热性能的封装中。HiperPFS-3产品系列采用数字增强电路,可在高压输入下将20%负载点的功率因数提高到0.92以上,该产品系列还采用高效的“轻载”工作模式,可实现低于60 mW的空载功耗。

HiperPFS-3产品系列的变频连续导通工作模式可通过维持较低的平均开关频率和频率调制来降低损耗,从而抑制峰值EMI。采用HiperPFS-3器件的系统通常能降低转换器的总X和Y电容要求以及升压扼流圈和EMI噪声抑制扼流圈的电感,从而降低整体系统尺寸和成本。

HiperPFS-3器件所需的外围元件极少,不仅节省电路板空间,还能降低系统BOM成本以及与检测电阻相关的功率损耗。
