HiperLCS

集成的LLC控制器、高压功率MOSFET及驱动器

筛选器 筛选产品
显示1 - 12项产品, 共12项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 持续性, 通用
IC封装
拓扑结构
输出配置
开关频率 (最大)
击穿电压
输入电压 (最小)
输入电压 (最大)
保护功能
控制功能
过热反应
自动重启和过压反应
电源电压 (Vcc/Vdd)
安装类型
产品类型
运作温度 (最大)
运作温度 (最小)
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 110 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 110 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 170 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 170 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 220 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 220 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 275 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 275 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 350 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 350 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 440 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 查看PDF
Output Power (Max) - Continuous, Univ 440 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C

说明

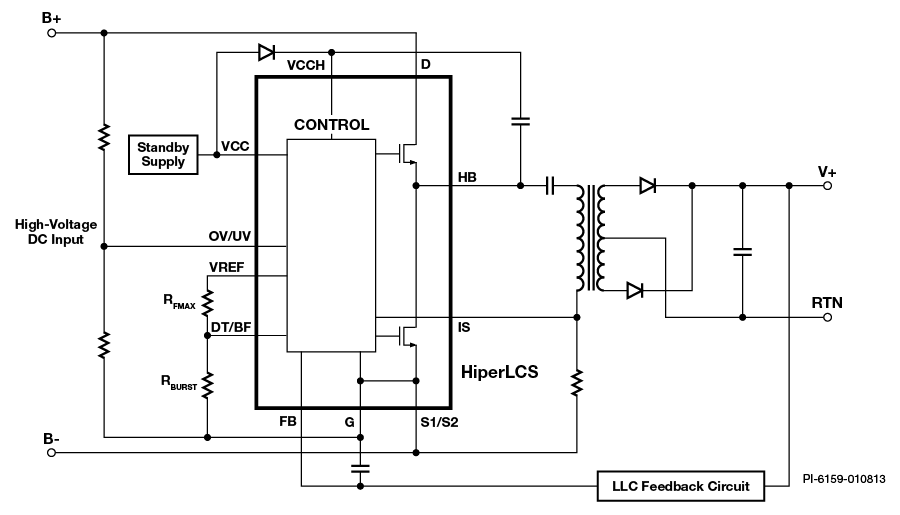

HiperLCS是一款集成了多功能控制器、高压端和低压端栅极驱动以及两个功率MOSFET的LLC半桥功率级。图1(上)所示为采用HiperLCS器件的功率级结构简图,其中LLC谐振电感集成在变压器中。

产品特色

特性

  • 集成了控制器、高压端和低压端栅极驱动以及高压功率MOSFET的LLC半桥功率级
    • 可最多省去30个外围元件
    • 降低装配成本并减小PCB布局的环路面积
  • 最高工作频率为1 MHz
    • 大幅降低磁芯尺寸并允许使用SMD陶瓷输出电容
  • 全面的故障处理及电流限制
    • 可编程的电压缓升/跌落阈值和迟滞
    • 欠压(UV)及过压(OV)保护
    • 可编程的过流保护(OCP)
    • 短路保护(SCP)
    • 过热保护(OTP)
  • 可编程的死区时间可优化设计并提升效率
  • 可编程的脉冲串模式可在空载条件下维持稳压,并提升轻载效率
  • 可编程的软启动时间及软启动前延迟
  • 适合高功率及高频率的单封装设计
    • 可通过夹片快速安装到散热片
    • 外露的散热金属部分与地电位相连 – 封装和散热片之间不需要绝缘垫片
    • 引脚交错排列,可简化PCB的走线路径并满足高压爬电要求
  • 与HiperPFS PFC产品配合使用可提供功能完整、高效率、低元件数的电源解决方案

应用

  • 高效率电源(80 PLUS银牌、金牌和白金级)
  • 液晶电视电源
  • LED路灯和室外照明
  • 打印机电源
  • 音频放大器
