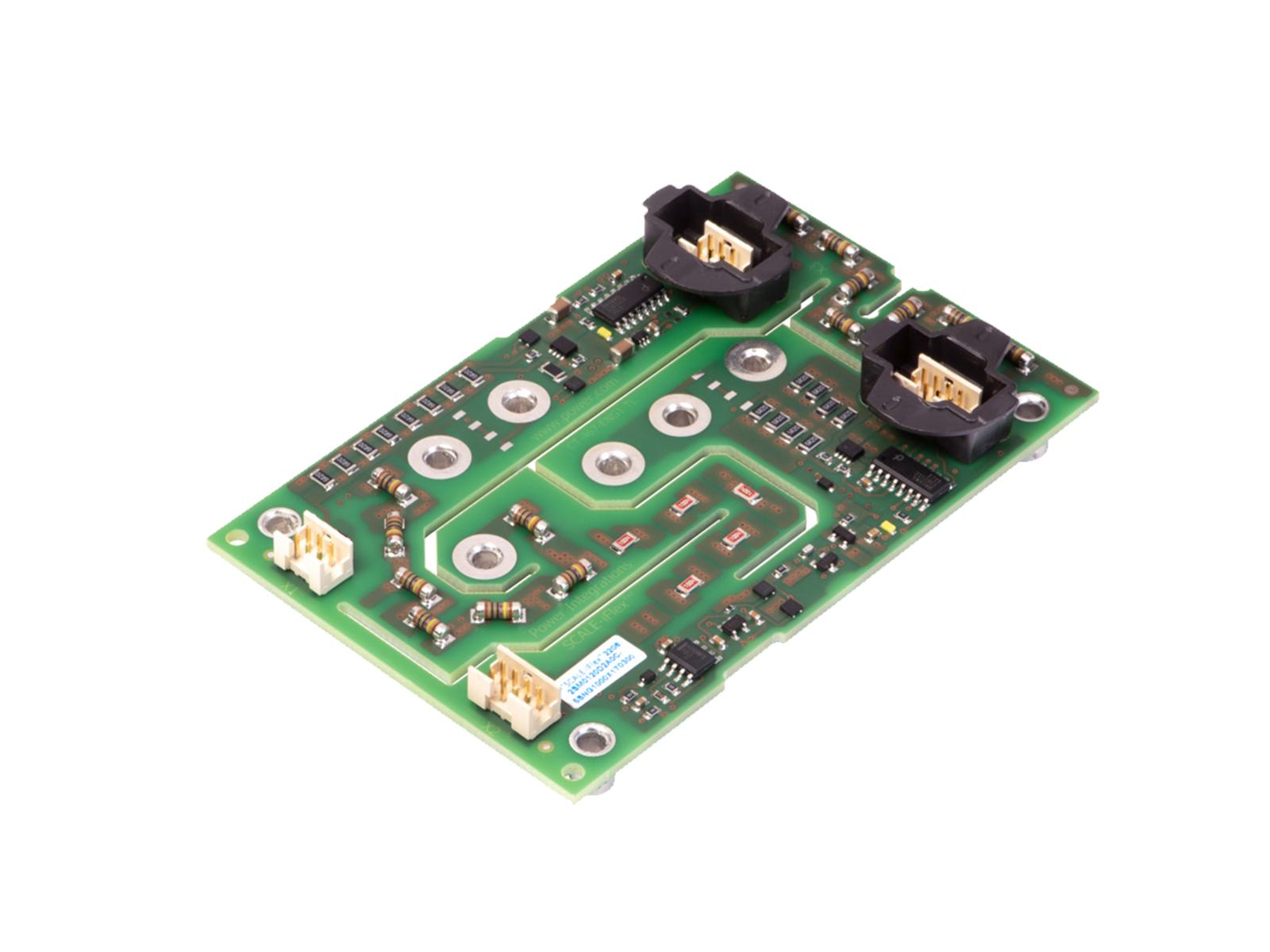

2SM0120D2A1C-MBM1000FS17G
Ready-to-use gate driver solution optimized for power modules from 1200 V to 3300 V blocking voltage consists of a central Isolated Master Control (IMC) 2SI0400x2xxC and up to four Module Adapted Gate Drivers (MAGs) 2SM0120D2xxC together with a cable set.
Applications
Product Details
The SCALE-iFlex™ gate driver family consists of a central Isolated Master Control (IMC) 2SI0400x2xxC and up to four Module Adapted Gate Drivers (MAGs) 2SM0120D2xxC together with a cable set. The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for power modules from different suppliers and with various device technologies in the 3300 V voltage class.
Product Features
- Ready-to-use gate driver system (IMC + MAGs)
- Easy paralleling of up to 4 modules
- Factory conformal coating
Specifications
| Supported Module(s) | MBM1000FS17G |
| Max Switching Frequency | 25.00 kHz |
| IGBT Voltage Class | 1700 V |
| Technology | SCALE-2 |
| Power - Output/Channel (Max) | 1.00 W |
| Temperature - Operating (Min) | -40 ℃ |
| Temperature - Operating (Max) | 85 ℃ |
| Interface Type | Electrical |
| Module Housing | LinPak |
| IGBT Manufacturer | Hitachi |
| Number of Channels | 2 |
| Product Type | Board |
| Product Sub-Type | PnP Driver |
| Supported Module Type | IGBT |
| Main/Peripheral | N/A |
| Supported Topologies |
2-level Voltage Source
3-level NP-Clamped - Type 1
3-level NP-Clamped - Type 2
|
| Paralleling Support? | Yes |
| Protection Features |
Adv Soft Shutdown
Short Circuit
UVLO(Sec-side)
UVLO(Pri-side)
|
| Conformal Coated? | Yes |
| Driving Mode | Direct-Independent |
| Connection Type to IGBT | Direct |
| Gate Turn-on Voltage | +15.00 V |
| Gate Turn-off Voltage | -9.60 V |
| Isolation Technology | Galvanic |
| Isolation Type | Basic |
