SCALE-iFlex Single

Plug-and-play gate drivers for 100x140 mm IGBT modules up to 3.3 kV, particularly applicable to use in electric railway trains and trams.

Applications
Filters Filter Products
Hide Filters
Filter Products
Showing 1 - 2 of 2 Products
Product Parts
Product
Data Sheet
IGBT Voltage Class
Conformal Coated?
Supported Module Type
Supported Module(s)
Protection Features
Temperature - Storage (Min)
Interface Type
Supported Topologies
Technology
Number of Channels
Isolation Technology
Gate Turn-off Voltage
Gate Turn-on Voltage
Temperature - Storage (Max)
Paralleling Support?
Isolation Type
IGBT Manufacturer
Logic Input Voltage
Temperature - Operating (Max)
Driving Mode
Temperature - Operating (Min)
Connection Type to IGBT
Supply Voltage (Typ)
Module Housing
Data Sheet View PDF
IGBT Voltage Class 1200 V, 1700 V, 3300 V
Conformal Coated? Yes
Supported Module Type IGBT
Protection Features Adv Active Clamping, Over-voltage, UVLO(Sec-side), UVLO(Pri-side)
Temperature - Storage (Min) -40 ℃
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1
Technology SCALE-2
Number of Channels 2
Isolation Technology Galvanic
Gate Turn-off Voltage --10.0 V
Gate Turn-on Voltage +15.0 V
Temperature - Storage (Max) 50 ℃
Paralleling Support? No
Isolation Type Reinforced
Logic Input Voltage 15
Temperature - Operating (Max) 85 ℃
Driving Mode Halfbridge, Direct-Independent
Temperature - Operating (Min) -40 ℃
Connection Type to IGBT Direct
Supply Voltage (Typ) 15 V
Data Sheet View PDF
IGBT Voltage Class 1700 V
Conformal Coated? Yes
Supported Module Type Silicon Carbide
Supported Module(s) CM1200DC-34X
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side)
Temperature - Storage (Min) -40 ℃
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1
Technology SCALE-2
Number of Channels 2
Gate Turn-off Voltage --10.0 V
Gate Turn-on Voltage +15.0 V
Temperature - Storage (Max) 50 ℃
Paralleling Support? No
Isolation Type Basic
IGBT Manufacturer Mitsubishi
Temperature - Operating (Max) 85 ℃
Driving Mode Halfbridge, Direct-Independent
Temperature - Operating (Min) -40 ℃
Connection Type to IGBT Direct
Supply Voltage (Typ) 15 V
Module Housing 100x140mm

Product Details

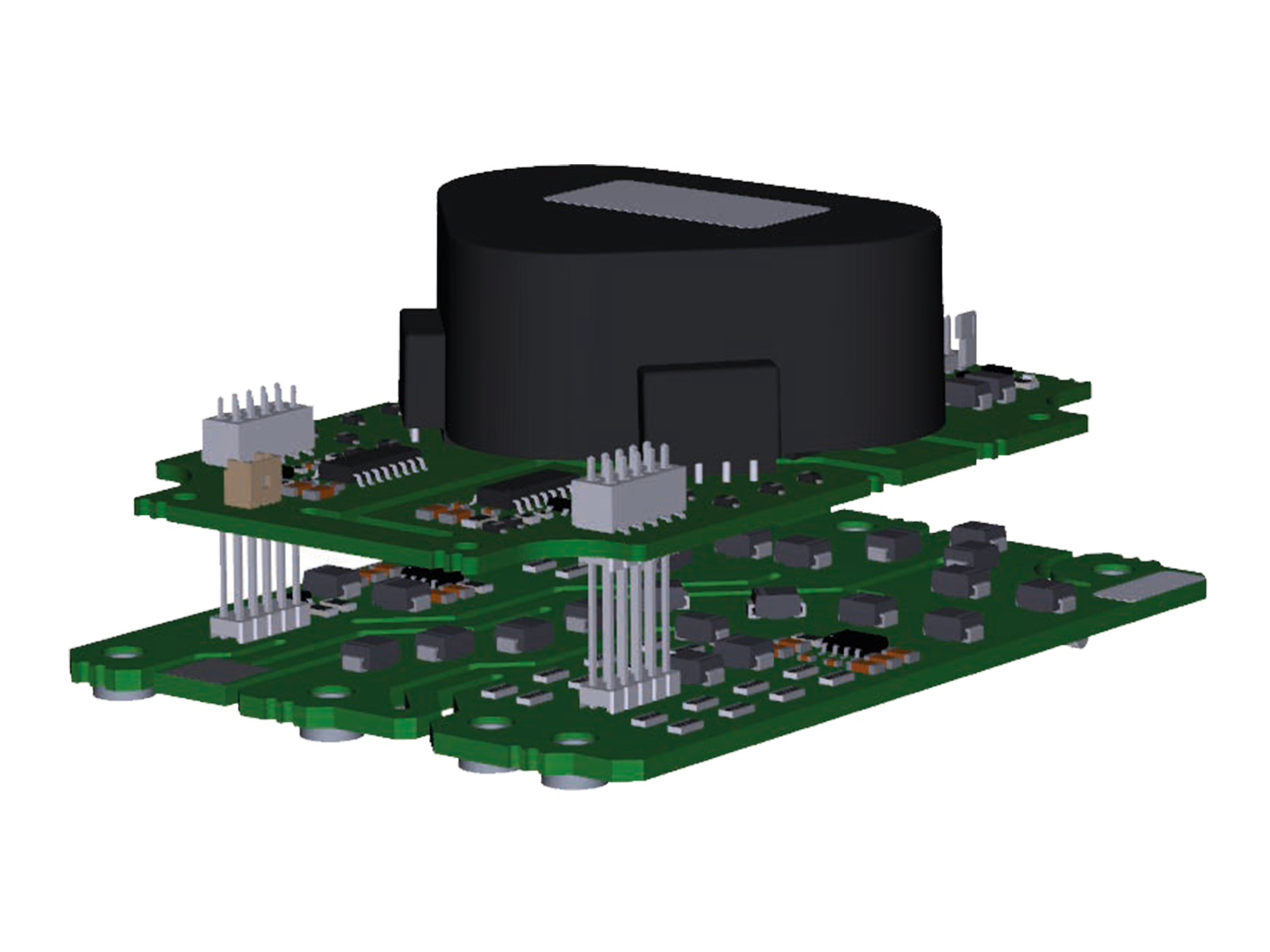

SCALE-iFlex Single are gate-drivers for “New Dual” 100 x 140 mm IGBT modules. Each consists of an Isolated Master Control (IMC), and a Module Adapted Gate Driver (MAG).   The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for different power modules, suppliers and chip technologies in the voltage classes up to 3300 V.

Key Features

Highly Integrated, Compact Footprint

  • Ready-to-use gate driver solution for power modules up to 1700 V blocking voltage
  • Optimized for Mitsubishi’s Half-Bridge Power Modules (e.g., CM1200DC-34X)
  • -40 °C to +85 °C operating ambient temperature

Protection / Safety Features

  • Undervoltage lock-out (UVLO)
  • Overvoltage protection by Advanced Active Clamping (AAC)
  • Short circuit protection
  • Applied double sided conformal coating

Full Safety and Regulatory Compliance

  • 100% production partial discharge and HIPOT test of transformer
  • Clearance and creepage distances between primary and secondary sides meet requirements for reinforced isolation
  • RoHS compliant
