Bulk Capacitor Miniaturization and Inrush Management IC for Very High Power Density AC/DC Converters, Featuring PowiGaN Technology

Product Details

The MinE-CAP™ IC dramatically shrinks the size of input bulk capacitors without compromising output ripple, operating efficiency or requiring redesign of the transformer. When compared to traditional techniques such as very high switching frequency operation, MinE-CAP achieves the same or greater overall power supply size reduction whilst avoiding the challenges of complex EMI filtering and the increased transformer/clamp dissipation associated with very high frequency designs.

Disconnect MOSFETs 2

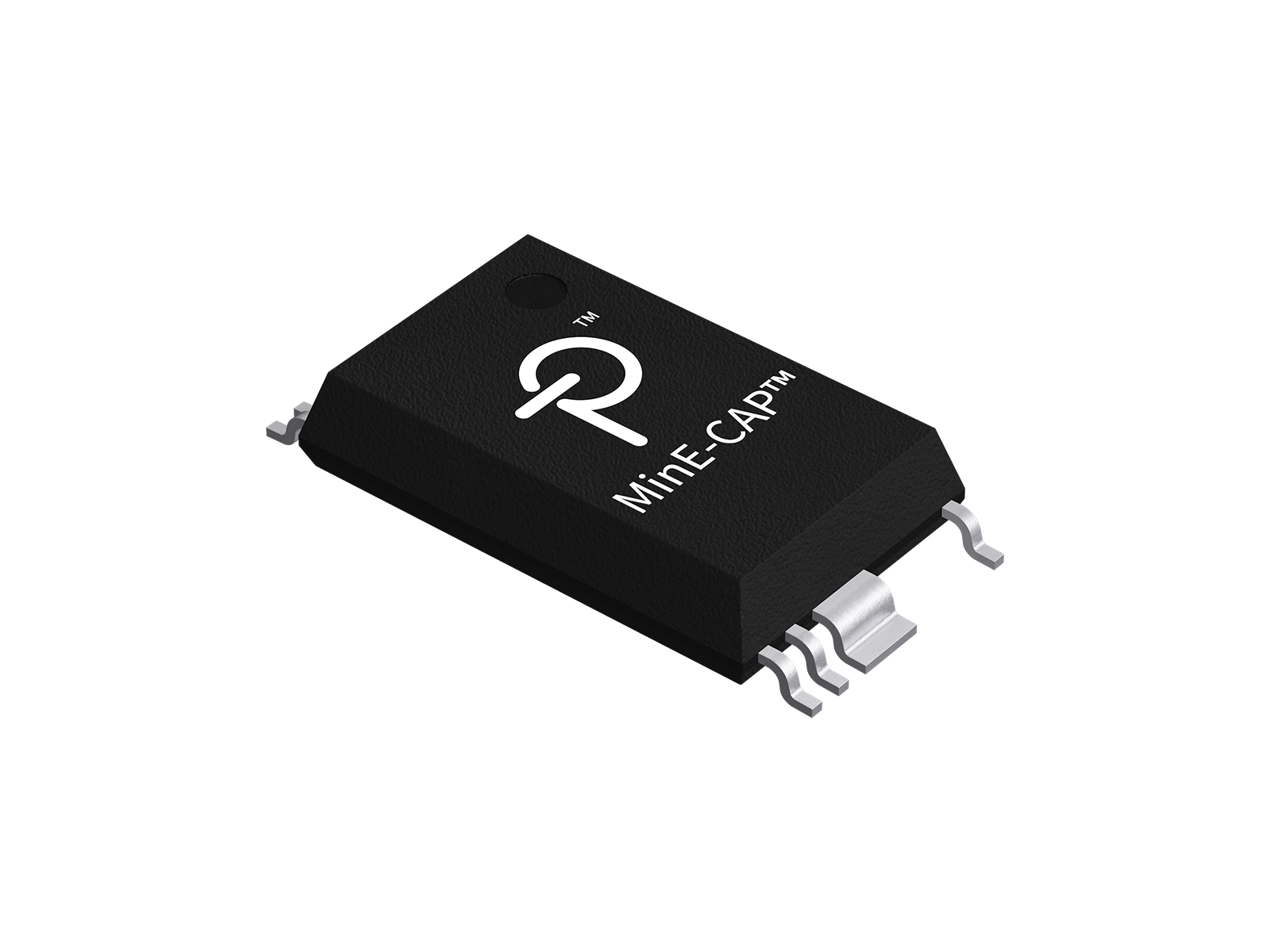

IC Package MinSOP-16A
Integrated Diode
Internal Switch
Mounting Type Surface Mount
Over-Temperature Response Hysteretic
PowiGaN? Yes
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Protection Features
Output Open Loop
Output Overvoltage
Output Short Circuit
Output Undervoltage
