- Better than ±5% Constant Current (CC) Regulation
- Power Factor Correction (PFC) for Low-Line Applications
- TRIAC Dimming and Non-Dimming Options

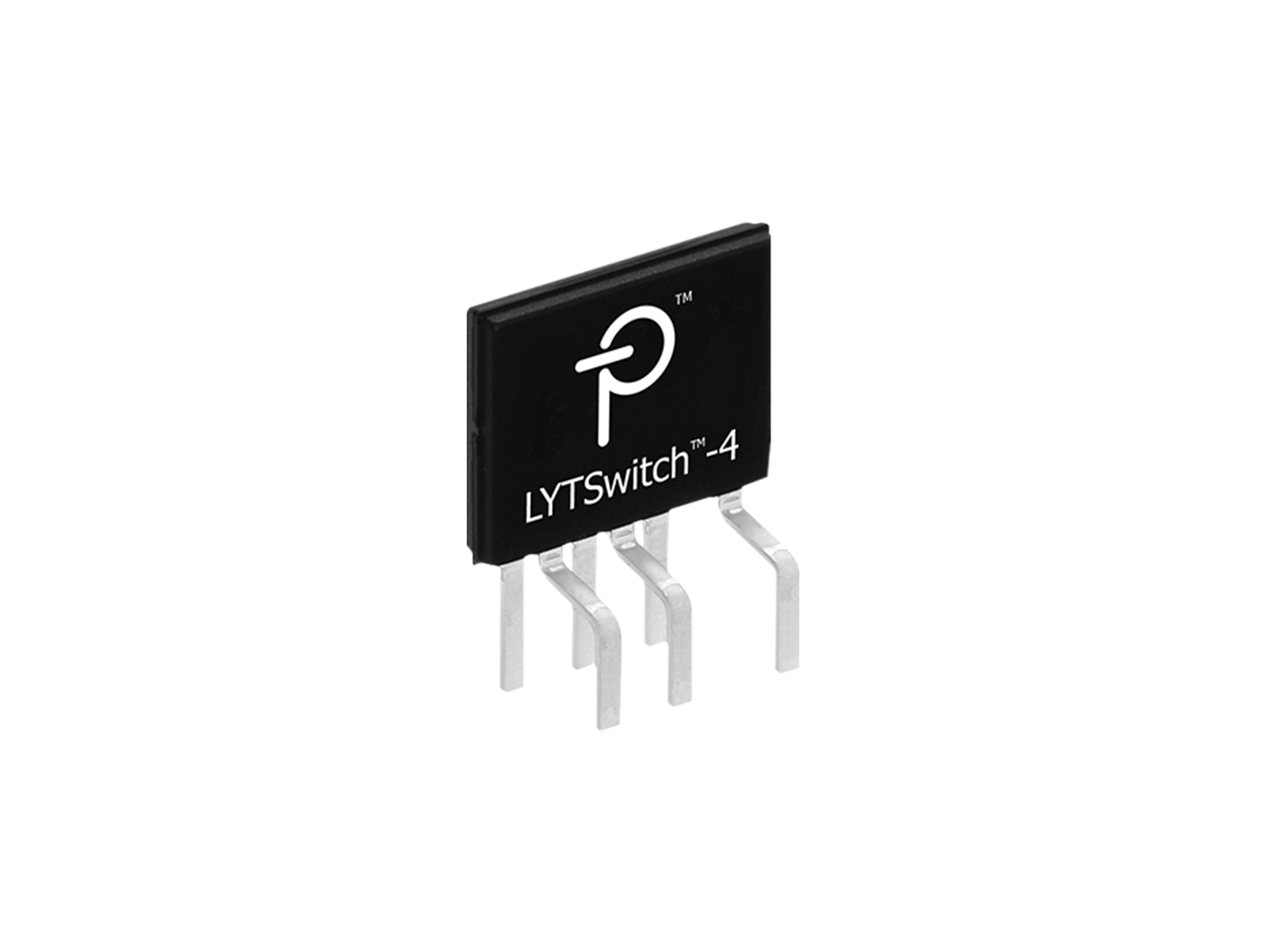

High Performance, Combined Driver, Controller, Switch
The LYTSwitch-4 family enables off-line LED drivers with high power factor which easily meet international requirements for THD and harmonics. Output current is tightly regulated with better than ±5% CC tolerance1. Efficiency of up to 92% is easily achieved in typical applications.
Supports a Wide Selection of TRIAC Dimmers
The LYTSwitch-4 family provides excellent turn-on characteristics for leading-edge and trailing-edge TRIAC dimming applications. This results in drivers with a wide dimming range and fast start-up, even when turning-on from a low conduction angle. Large dimming ratio and low "pop-on" current.
Low Solution Cost and Long Lifetime
LYTSwitch-4 ICs are highly integrated and employ a primary-side control technique that eliminates the optoisolator and reduces component count. This allows the use of low-cost single-sided printed circuit boards. Combining PFC and CC functions into a single-stage also helps reduce cost and increase efficiency. The 132 kHz switching frequency permits the use of small, low-cost magnetics.
LED drivers using the LYTSwitch-4 family do not use primary-side aluminum electrolytic bulk capacitors. This means greatly extended driver lifetime, especially in bulb and other high temperature applications.
- Fast start-up
- <250 ms at full brightness
- <1s at 10% brightness
- High power factor >0.9
- Easily meets EN61000-3-2
- Less than 10% THD in optimized designs
- Up to 92% efficient
- 132 kHz switching frequency for small magnetics
|Power - Output (Min, Low-Line)||2.50 W|
|Power - Output (Max Low-Line)||12.00 W|
|Switching Frequency (max)||132 kHz|
|Breakdown Voltage||725 V|
|Voltage - Input (Min)||85 V|
|Voltage - Input (Max)||132 V|
|Auto-Restart & Overvoltage Response||Latch Off|
|Mounting Type||Surface Mount|
|Temperature - Operating (Min)||-40 °C|
|Temperature - Operating (Max)||150 °C|
Auto-Restart/Latching Fault Response
Output Open Loop
Output Short Circuit
