IMX111J

2 Constant Voltage and 4 Channel Dimming LED Backlight CC Controller
Must be paired with InnoSwitch3-MX isolated switcher IC

Applications
Product Details

When paired with an InnoSwitch3-MX isolated switcher IC, an InnoMux controller IC dramatically simplifies the power supply design for monitors and TVs by replacing the ACDC and DCDC converters with a single-stage flyback topology. This enables very high system efficiency on a small PCB footprint.

The LED backlight control offers excellent minimum threshold regulation as well as analog and several PWM dimming options. The sequenced PWM dimming option further improves visual performance and stabilizes power demand. Extensive protection features are provided.

Product Highlights

CV and 4-Channel LED Backlight Controller

  • Eliminates buck and LED backlight boost converters
  • One or two constant voltage outputs
    - Independently regulated outputs with instantaneous transient response ±5% CV on 0%-100%-0% load step
  • Typical output voltages
    - One CV mode: 5 V to 22 V
    - Two CV mode: 5 V and 12 V to 22 V
  • 1-4 string LED backlight
    - 3% matching accuracy for LED strings
    - Analog, PWM, sequenced PWM and filtered PWM operation
    - Up to 100 V string voltage / up to 960 mA total string current
    - Up to 2:1 LED string voltage range

Advanced Protection / Safety Features

  • Individual overload protection for all outputs
  • String imbalanced / short / open protection
  • Output overvoltage set for auto-restart

Convenient Packages

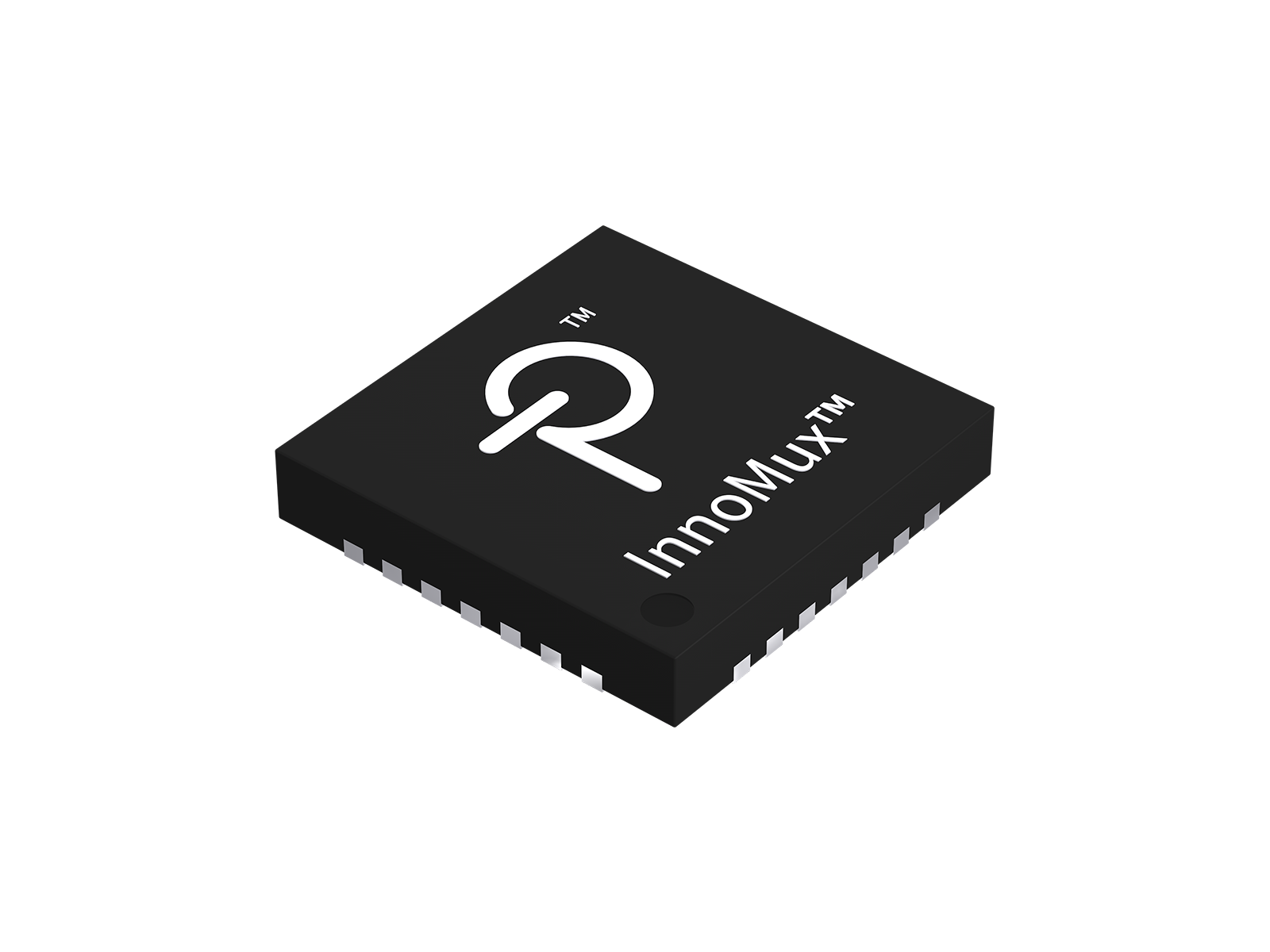

  • 28-Lead HSOP for single-sided wave soldered PCBs or small 28-Lead QFN (5x5 mm Body) for compact multilayer designs
Specifications
Specifications
Auto-Restart & Overvoltage Response Auto-restart
IC Package QFN-28
Integrated Diode
Internal Switch
Mounting Type Surface Mount
Over-Temperature Response
Auto-restart
Hysteretic
Latch Off
Output Configuration 2 CV, 1 LED string
PowiGaN?
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Dimming Interface
Analog
PWM
Protection Features
Output Open Loop
Output Overload
Output Overvoltage
Output Short Circuit
Overtemperature
Output Profile CC
Topology Flyback
Product Sub-Type Control IC
