USB Charger Physical Interface IC for Quick Charge 2.0 Applications

This is an active product that is not recommended for new designs.
Suggested Alternative: CHY103

Product Details

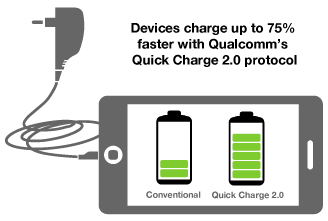

Adaptive rapid charging is the latest in USB battery charging technology that can charge devices 75% faster than conventional chargers. At the forefront of this technology is Qualcomm's Quick Charge 2.0 protocol. Quick Charge 2.0 works by detecting commands from Quick Charge 2.0 enabled devices, such as a cellphones and tablets, and adjusting the output voltage of the AC-DC charger to increase power delivery to the device’s battery.

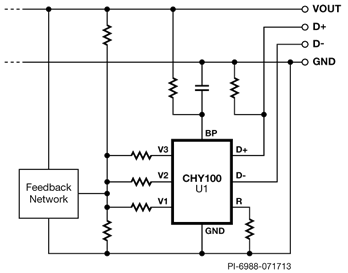

To meet the need for adaptive rapid charging systems, Power Integrations has developed the "ChiPhy" (charger physical interface) family of ICs. Used in combination with one of Power Integrations' AC-DC switcher ICs, such as TOPSwitch or TinySwitch, ChiPhy ICs add adaptive rapid charging functionality to AC-DC wall chargers.

The first in Power Integrations' line of ChiPhy ICs is the CHY100, specifically design to work with Quick Charge 2.0. If a device is not Quick Charge 2.0 compliant, the ChiPhy IC disables output voltage adjustment to ensure safe operation.

Product Highlights

Fully supports Quick Charge 2.0 specification

  • Class A: 5, 9, and 12 V output voltage
  • Class B: 5, 9, 12, and 20 V output voltage

USB battery charging specification 1.2 compatible

  • Automatic USB DCP shorting D+ to D- line
  • Default 5 V mode operation

Supports TOPSwitch and TinySwitch

Very low power consumption

  • Below 1 mW at 5 V output

Fail safe operation

  • Adjacent pin-to-pin short-circuit fault
  • Open circuit pin fault

Typical Applications

  • Battery chargers for smart phones, tablets, netbooks, digital cameras, and bluetooth accessories
  • USB power output ports
