CHY103

USB Interface IC for Class A and Class B Quick Charge 3.0 Applications

Applications
Filters Filter Products
Showing 1 - 1 of 1 Products
Product Parts Table
Product
Data Sheet
IC Package
Protection Features
Over-Temperature Response
Auto-Restart & Overvoltage Response
Mounting Type
Product Type
Temperature - Operating (Max)
Temperature - Operating (Min)
MSL Rating
Secondary Response
Data Sheet View PDF
IC Package SO-8
Protection Features Output Overvoltage, Output Short Circuit, Overtemperature, Remote Shutdown, Thermal Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Latch Off, Hysteretic
Mounting Type Surface Mount
Product Type Chip
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
MSL Rating 1
Secondary Response Latch Off

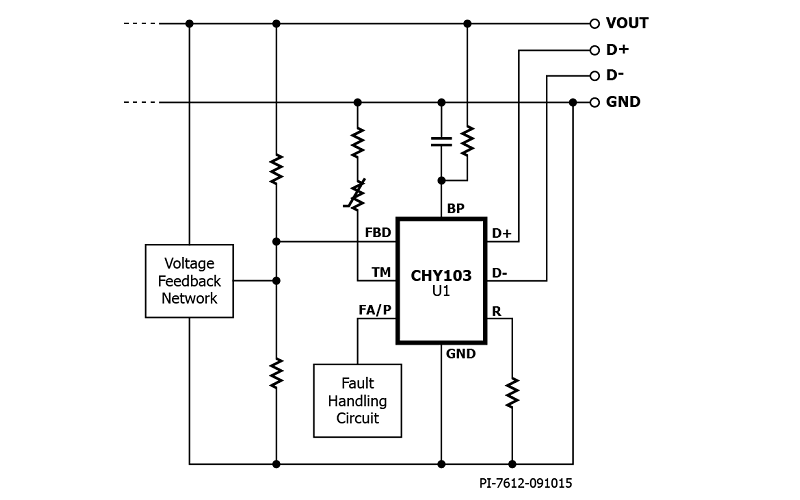

CHY103 is a USB interface IC that supports Class A and Class B of the Quick Charge 3.0 specification. It includes features that protect the power supply and its connected Powered Device (PD) from excessive output voltages, secondary-side thermal overload, and faulty power delivery while adapter is unplugged.

The CHY103 interface IC automatically detects whether a connected PD is Quick Charge 3.0 or Quick Charge 2.0 capable before enabling output voltage adjustment. If a PD that is not compliant to Quick Charge 2.0 or 3.0 is detected, the CHY103 disables output voltage adjustment to ensure safe operation with legacy 5 V-only USB PDs.

Product Highlights

  • Supports Quick Charge 3.0 specification
    • Class A: 3.6 V to 12 V output voltage
    • Class B: 3.6 V to 20 V output voltage
  • Adaptive output overvoltage protection (AOVP)
    • Protects output from exceeding 120% of set output voltage
  • Secondary over-temperature protection (SOTP)
    • NTC resistor can be freely positioned inside enclosure
  • Output soft short-circuit protection (OSSP)
    • Protects output from delivering power while unplugged
    • Monitoring initiated automatically or remotely through PD
  • Remote shutdown protection (RESP)
    • Enables Powered Device to shutdown adapter
  • Very low power consumption
    • Below 1 mW at 5 V output
  • Fail safe operation
    • Adjacent pin-to-pin short-circuit fault
    • Open-circuit pin fault
  • Supports InnoSwitch, TinySwitch, and TOPSwitch
