배터리 관리 시스템

Battery Icon배터리 관리 시스템 (BMS)

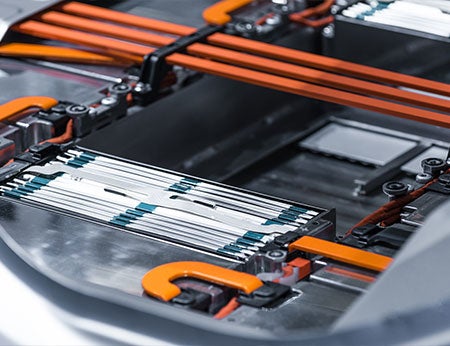

The battery pack is the most expensive single component in an EV and contains detailed monitoring and control to maintain a long, safe operating life. The BMS is responsible for monitoring individual cell health, balancing, operating pack heating and cooling systems, reporting state of charge and disconnecting power from the vehicle in a fault or collision.

This monitoring must continue even when the vehicle itself is parked and not in use. So that, for example, the pack heater can be engaged to maintain acceptable temperature in very cold conditions. This makes energy efficiency and minimizing the load on the HV battery critical to minimize range loss or worst case to prevent a dead vehicle.

PI's reinforced isolated flyback and non-isolated buck converter products are idea for generating internal low voltage supply rails. The extremely low no-load consumption and high efficiency reduce background discharge of the HV battery. Overall power loss is lower than relying on the 12 V system and provides the BMS the ability to continue to operate on loss of the 12 V system (discharged 12 V battery).

레퍼런스 디자인

관련 상품

Related Products
제품
데이터 시트
토폴로지
전압 레벨
설명
Data Sheet PDF 보기
Topology Flyback, Secondary Side - FluxLink Regulated
Power Level 70 W
Description

750V, 900 V & 1700 V MOSFET 및 FluxLink 피드백이 통합된 자동차 애플리케이션용 CV/CC QR 플라이백 스위처 IC

Data Sheet PDF 보기
Topology Non-Isolated Flyback, Buck/Boost/Buck-Boost
Power Level 360 mA
Description

적은 부품 수의 파워 서플라이를 위한 시스템 레벨 보호 기능이 통합된 자동차용 에너지 고효율 스위처 IC
