RDR-1016 - 26.5 W Dual-Output Isolated Flyback Power Supply for Appliances Using TinySwitch-5

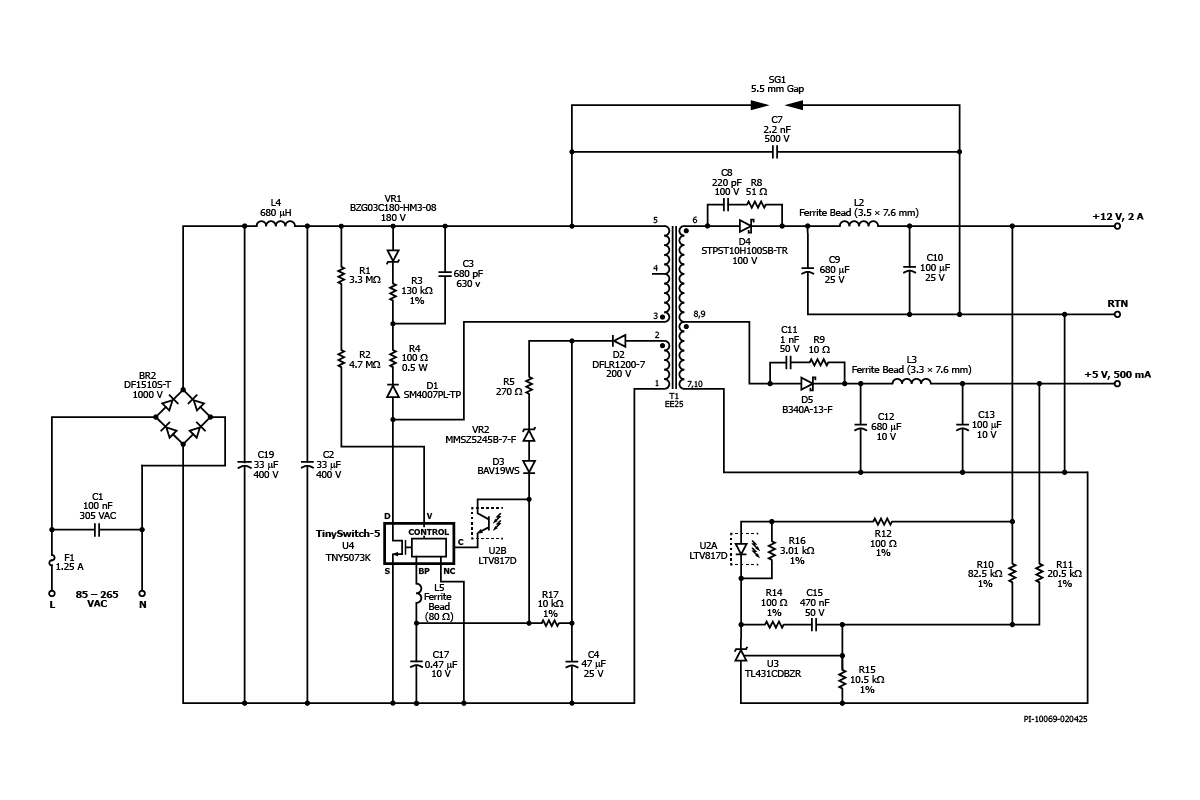

26.5 W dual-output isolated flyback power supply for appliances using TinySwitch-5 (TNY5073K)
- Output: 12 V, 2A and 5 V, 0.5 A
- Input: 85 - 265 VAC
- < 150 kHz switching frequency for small transformer
- > 86% full load efficiency at 115 VAC
- > 87% full load efficiency at 230 VAC
- > 85.5% average efficiency at 115 VAC and 230 VAC
- < 50 mW no-load input power at 230 VAC
