LinkSwitch-LP

可用於取代線性變壓器充電器且所需元件最少的切換開關

過濾器 Filter Products
顯示1 - 9項產品, 共9項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 230V
輸出功率 (最大) - 敞開式, 230V
IC封裝
輸入電壓 (最小)
輸入電壓 (最大)
控制方式
輸出功率 (最大) - 封閉式, 通用
輸出功率 (最大) - 敞開式, 通用
控制功能
保護功能
過熱反應
拓撲結構
產品類別
擊穿電壓
運作溫度 (最大)
運作溫度 (最小)
內部開關
輸出配置
次級回應
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 1.9 W
Output Power (Max) - Open Frame, 230V 1.9 W
IC Package SO-8C
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 1.9 W
Output Power (Max) - Open Frame, Univ 1.9 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 1.9 W
Output Power (Max) - Open Frame, 230V 1.9 W
IC Package SMD-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 1.9 W
Output Power (Max) - Open Frame, Univ 1.9 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 1.9 W
Output Power (Max) - Open Frame, 230V 1.9 W
IC Package DIP-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 1.9 W
Output Power (Max) - Open Frame, Univ 1.9 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 2.5 W
Output Power (Max) - Open Frame, 230V 2.5 W
IC Package SO-8C
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 2.5 W
Output Power (Max) - Open Frame, Univ 2.5 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 2.5 W
Output Power (Max) - Open Frame, 230V 2.5 W
IC Package SMD-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 2.5 W
Output Power (Max) - Open Frame, Univ 2.5 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 2.5 W
Output Power (Max) - Open Frame, 230V 2.5 W
IC Package DIP-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 2.5 W
Output Power (Max) - Open Frame, Univ 2.5 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 3.0 W
Output Power (Max) - Open Frame, 230V 3.0 W
IC Package SO-8C
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 3.0 W
Output Power (Max) - Open Frame, Univ 3.0 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 3.0 W
Output Power (Max) - Open Frame, 230V 3.0 W
IC Package SMD-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 3.0 W
Output Power (Max) - Open Frame, Univ 3.0 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 3.0 W
Output Power (Max) - Open Frame, 230V 3.0 W
IC Package DIP-8B
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 3.0 W
Output Power (Max) - Open Frame, Univ 3.0 W
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Overtemperature, Output Short Circuit, Output Open Loop
Over-Temperature Response Hysteretic
Topology Flyback
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV/CC
Secondary Response Auto-restart

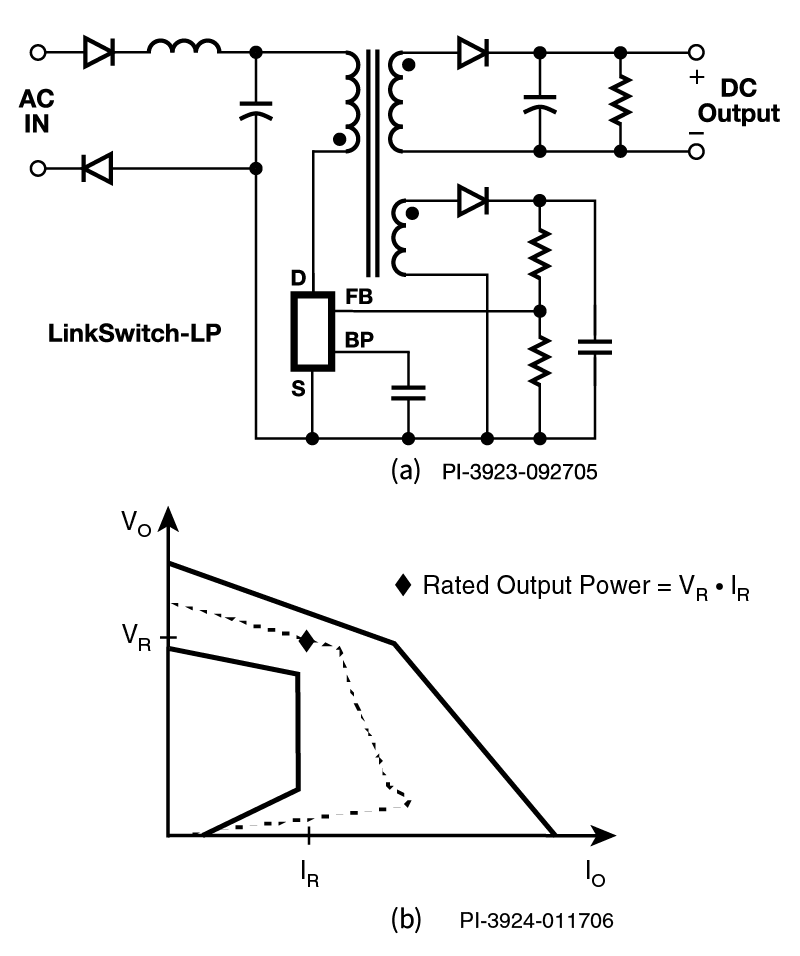

說明:

最低系統成本加上進階安全功能,展現凌駕於線性電源供應器及 RCC 設計的優異效能

  • 所需元件最少的切換開關
  • 運用專利的 IC 微調技術和變壓器構造技術,達成極嚴格的參數公差,實現 Clampless™ 設計 – 減少所需元件的數目和系統成本,並提高效率
  • 遲滯過熱關機保護功能 – 免除線性變壓器所用的溫度保險絲,或是 RCC 設計中所用的額外元件
  • 頻率抖動功能可大幅降低 EMI – 實現低成本輸入濾波器配置
  • 專利的 E-Shield™ 變壓器免除 Y 電容器
  • 全輸入電壓範圍,全世界均可使用
  • 自動重新啟動功能可在發生短路及開迴路故障狀況下,將輸出功率降低達 85% 以上
  • 簡化開/關控制,不需迴路補償
  • 高頻寬提供無超越量的快速啟動以及優異的暫態負載反應

應用:

  • 行動/無線電話、PDA、電動工具、MP3/可攜式音效設備、刮鬚刀等的充電器
  • 待機及輔助電源供應器
