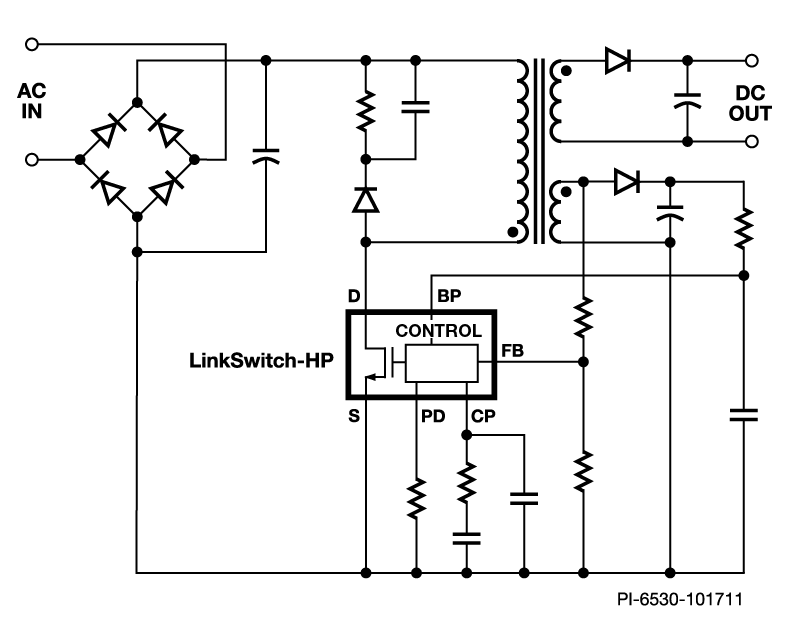

LinkSwitch-HP

具有精準的一次側調節功能 (PSR) 的節能型高功率離線式切換開關

應用
過濾器 Filter Products
顯示1 - 50項產品, 共63項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 封閉式, 230V
輸出功率 (最大) - 敞開式, 230V
擊穿電壓
IC封裝
控制方式
輸出功率 (最大) - 封閉式, 通用
輸出功率 (最大) - 敞開式, 通用
保護功能
過熱反應
自動重啟和過壓反應
開關頻率 (最大)
安裝類型
產品類別
輸入電壓 (最大)
輸入電壓 (最小)
運作溫度 (最大)
運作溫度 (最小)
內部開關
控制功能
開關頻率 (最小)
拓撲結構
次級回應
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet 檢視 PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
