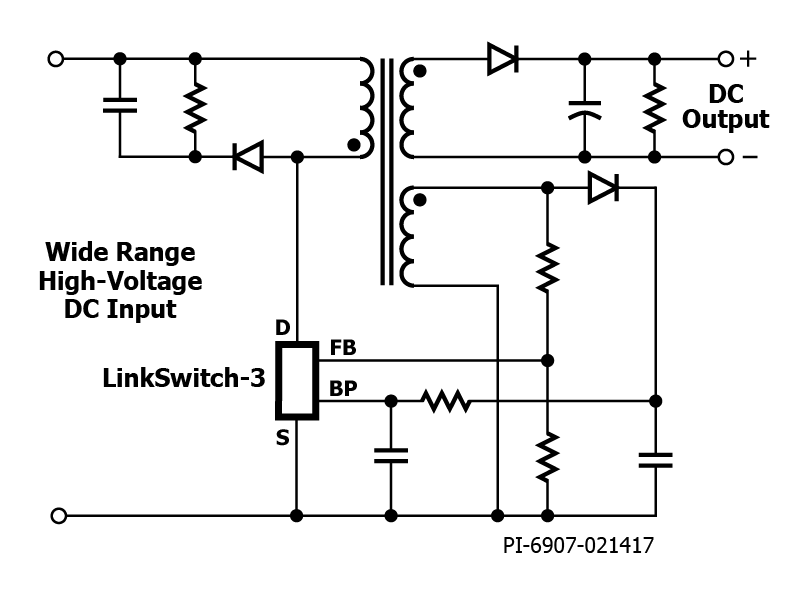

LinkSwitch-3

適用於轉換器 (Adaptor) 和充電器且具高效率、精準一次測調節 CV/CC 的切換開關

過濾器 Filter Products
顯示1 - 24項產品, 共24項
Product Parts Table
產品
產品規格型錄
RDK Available
輸出功率 (最大) - 敞開式, 通用
輸出功率 (最大) - 封閉式, 通用
擊穿電壓
IC封裝
電纜壓降補償
拓撲結構
控制方式
輸出配置
開關頻率 (最大)
保護功能
安裝類型
產品類別
輸入電壓 (最大)
輸入電壓 (最小)
運作溫度 (最大)
運作溫度 (最小)
內部開關
過熱反應
控制功能
開關頻率 (最小)
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 4.1 W
Output Power (Max) - Enclosed, Univ 3.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 4.1 W
Output Power (Max) - Enclosed, Univ 3.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.08
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet 檢視 PDF
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz

LinkSwitch-3 系列 IC 藉由免除光耦合器及二次側控制電路,大幅簡化了低功率 CV/CC 充電器的設計。本裝置採用革新的控制技術,能提供極精準的輸出電壓和電流調節,以補償變壓器、內部參數公差以及輸入電壓變異。

該裝置在單晶片 IC 上整合了一個 725 V 功率 MOSFET、新型開/關控制狀態機、用於自偏壓的高壓切換開關電流源、頻率抖動、逐週期限電流以及磁滯回復過溫保護電路。

產品特色

大幅簡化 CV/CC 轉換器

  • 免除光耦合器與所有二次側 CV/CC 控制電路
  • 免除所有控制迴路補償電路

進階效能特色

  • 可補償變壓器電感公差、輸入線路電壓變異和纜線電壓下降
  • 運用專利的微調技術,達成極嚴格的 IC 參數公差
  • 頻率抖動功能可大幅降低 EMI 濾波器成本
  • 可設定的切換頻率 (最高至 85 kHz),縮小變壓器的尺寸
  • 固定最低工作頻率,改善暫態負載反應

進階保護/安全特性

  • 磁滯回復過溫保護功能 – 自動復原能力可降低電源供應器的現場退回率
  • 無論在 PCB 板上還是在封裝上,汲極與其他所有接腳之間均滿足高壓沿面距離的要求

EcoSmart™– 節能

  • 無需新增元件即可輕鬆符合全球所有節能法規
  • 在 230 VAC 輸入且具有偏壓繞組時的無負載消耗低於 30 mW

綠色環保封裝

  • 無鹵素,符合 RoHS 標準的封裝

應用

  • 行動/無線電話的充電器
  • PDA
  • 轉換器
  • MP3/可攜式音訊裝置
