HiperLCS

整合式 LLC 控制器、高電壓功率 MOSFET 及驅動器

過濾器 Filter Products
顯示1 - 12項產品, 共12項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 連續性, 通用
IC封裝
拓撲結構
輸出配置
開關頻率 (最大)
擊穿電壓
輸入電壓 (最小)
輸入電壓 (最大)
保護功能
控制功能
過熱反應
自動重啟和過壓反應
電源電壓 (Vcc/Vdd)
安裝類型
產品類別
運作溫度 (最大)
運作溫度 (最小)
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 110 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 110 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 170 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 170 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 220 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 220 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 275 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 275 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 350 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 350 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 440 W
IC Package eSIP-16J
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet 檢視 PDF
Output Power (Max) - Continuous, Univ 440 W
IC Package eSIP-16K
Topology LLC Half Bridge
Output Profile CC
Switching Frequency (max) 800 kHz
Breakdown Voltage 530 V
Voltage - Input (Min) 90 V
Voltage - Input (Max) 380 V
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit
Control Features Soft Start, Auto-Restart/Latching Fault Response
Over-Temperature Response Latch Off
Auto-Restart & Overvoltage Response Auto-restart
Voltage - Supply (Vcc/Vdd) 12V
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C

說明

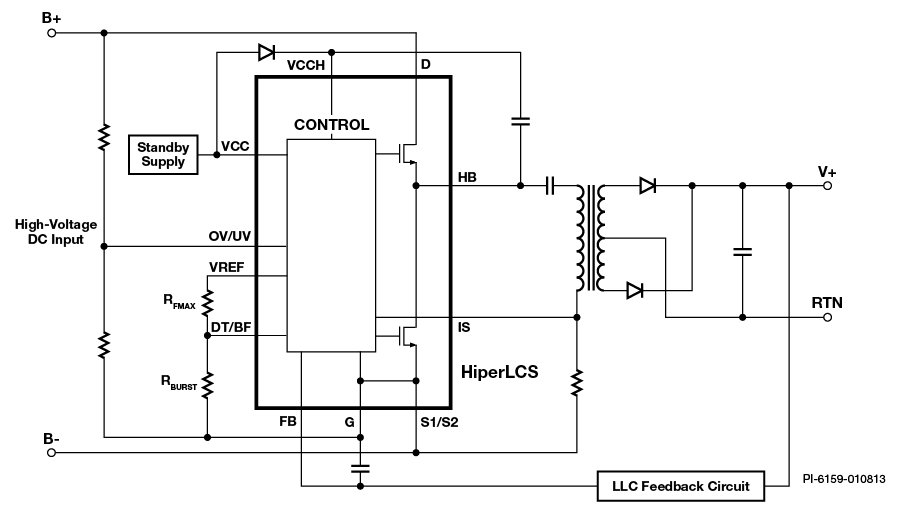

HiperLCS 屬於整合式 LLC 功率級,在其半橋式配置中整合了多功能控制器、高壓側與低壓側閘極驅動器,以及兩個功率 MOSFET。 圖 1 (上圖) 顯示 HiperLCS 功率級的簡化電路圖,其中 LLC 諧振電感器已整合了變壓器。

產品重要特色

特色

  • LLC 半橋式功率級整合了控制器、高壓側與低壓側閘極驅動及高電壓功率 MOSFET
    • 減少使用外部元件達 30 個
    • 降低組裝成本並減少 PCB 佈局迴路面積
  • 最高工作頻率達 1 MHz
    • 大幅縮小磁性元件的尺寸並採用 SMD 陶瓷輸出電容器
  • 全面性的故障處理及電流限制
    • 可設定電壓啟動/關閉臨界值與磁滯
    • 欠壓 (UV) 與過壓 (OV) 保護
    • 可設定過電流保護 (OCP)
    • 短路保護 (SCP)
    • 過溫保護 (OTP)
  • 可設定停滯時間以提供最佳化設計並提升效率
  • 可設定突波模式並可在無負載時維持穩壓,提高輕負載效率
  • 可設定軟啟動時間與軟啟動前的延遲時間
  • 專為高功率與高頻率設計的單一封裝
    • 僅使用夾子即可輕易夾扣在散熱片上
    • 外露散熱墊接到接地電位 – 封裝與散熱片間不需要絕緣墊
    • 接腳錯開排列,讓 PC 板佈線簡潔並符合高電壓沿面距離要求
  • 與 HiperPFS PFC 產品搭配使用,提供完整、高效率、低零件數的 PSU 解決方案

應用

  • 高效率電源供應器 (80 PLUS Silver 級、Gold 級與 Platinum 級)
  • LCD 電視電源供應器
  • LED 街道與區域照明
  • 印表機電源供應器
  • 音訊放大器
