TinySwitch-LT

更具灵活性及更大功率范围的高效离线式开关IC

应用
筛选器 筛选产品
显示1 - 12项产品, 共12项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 封闭式, 230V
輸出功率 (最大) - 开架式, 230V
IC封装
击穿电压
保护功能
輸出功率 (最大) - 封闭式, 通用
輸出功率 (最大) - 开架式, 通用
控制功能
过热反应
自动重启和过压反应
产品类型
输入电压 (最大)
输入电压 (最小)
运作温度 (最大)
运作温度 (最小)
控制方式
内部开关
拓扑结构
次级回应
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, 230V 11.0 W
IC Package SO-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, 230V 11.0 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SO-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 11.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 11.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
IC Package SO-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 11.5 W
Output Power (Max) - Open Frame, 230V 23.5 W
IC Package SO-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 13.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 8.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 14.5 W
Output Power (Max) - Open Frame, 230V 26.0 W
IC Package SO-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 19.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Open Frame, Univ 21.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 18.0 W
Output Power (Max) - Open Frame, 230V 32.0 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart
Data Sheet 查看PDF
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 36.5 W
IC Package DIP-8C
Breakdown Voltage 650 V
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
Output Power (Max) - Enclosed, Univ 14.0 W
Output Power (Max) - Open Frame, Univ 28.5 W
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Topology Flyback
Secondary Response Auto-restart

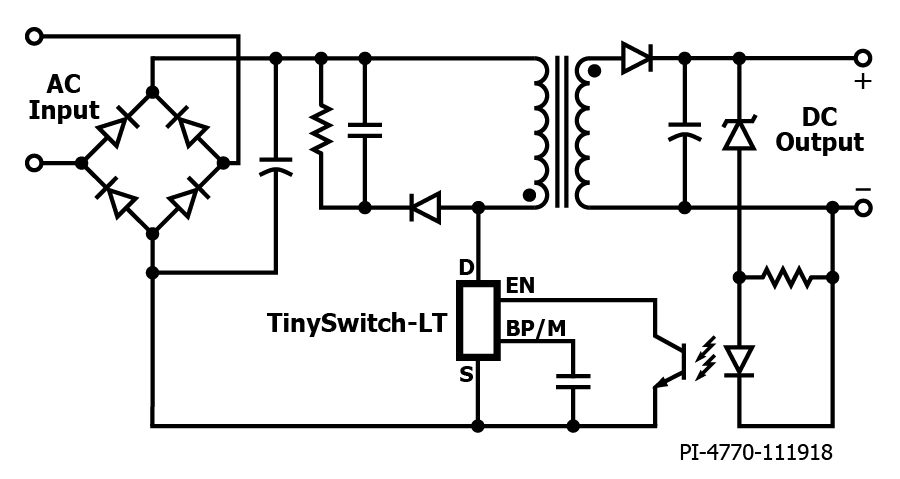

TinySwitch-LT集成了一个650 V的功率MOSFET、振荡器、高压开关电流源、电流限流(用户可选)及热关断电路。该IC产品系列采用ON/OFF控制方式,提供一个灵活的设计方案,并且实现更低的系统成本及更大的输出功率范围。

产品特色:

  • 额定值650 V的集成MOSFET
  • 简单的ON/OFF控制,无需环路补偿
  • 通过BP/M引脚电容值可选择不同的电流限流点
  • 更高的电流限流点可得到更高的峰值功率,或在敞开式应用中得到更高的连续输出功率
  • 严格的I2f参数公差范围降低系统成本;降低了最大过载功率,从而降低变压器、初级箝位及次级元件的成本
  • 导通时间延长 - 更低输入电压下维持输出的稳定/维持时间,可以使用更低容量的输入电解电容
  • 频率调制降低EMI滤波成本
