LinkZero-AX

零待机功耗集成离线式开关IC

应用
筛选器 筛选产品
显示1 - 6项产品, 共6项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 开架式, 230V
輸出功率 (最大) - 开架式, 通用
IC封装
控制功能
保护功能
输入电压 (最小)
输入电压 (最大)
过热反应
拓扑结构
控制方式
自动重启和过压反应
次级回应
安装类型
产品类型
击穿电压
运作温度 (最大)
运作温度 (最小)
内部开关
输出配置
启动电压
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 3.0 W
Output Power (Max) - Open Frame, Univ 3.0 W
IC Package SO-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 3.0 W
Output Power (Max) - Open Frame, Univ 3.0 W
IC Package SMD-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 4.5 W
Output Power (Max) - Open Frame, Univ 4.0 W
IC Package SO-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 5.0 W
Output Power (Max) - Open Frame, Univ 4.5 W
IC Package SMD-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 6.0 W
Output Power (Max) - Open Frame, Univ 5.0 W
IC Package SO-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V
Data Sheet 查看PDF
Output Power (Max) - Open Frame, 230V 6.5 W
Output Power (Max) - Open Frame, Univ 5.5 W
IC Package SMD-8C
Control Features Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control, Power-down Mode
Protection Features Output Undervoltage, Overtemperature, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Open Loop
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Over-Temperature Response Hysteretic
Topology Flyback
Control Scheme Primary-side
Auto-Restart & Overvoltage Response Latch Off
Secondary Response Auto-restart
Mounting Type Surface Mount
Product Type IC
Breakdown Voltage 700 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Output Profile CV
Voltage - Start-up 3.00V

说明

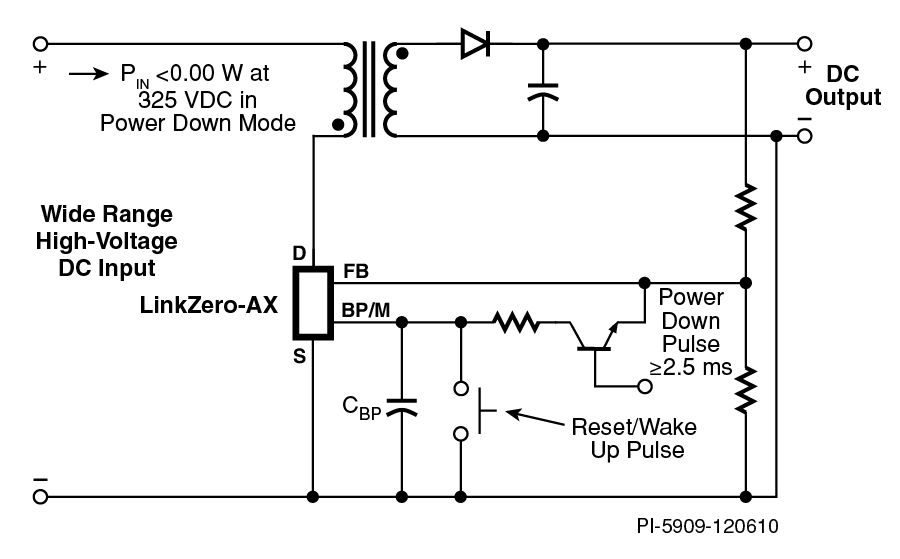

LinkZero-AX是一款集成离线式开关IC,能使设计师设计出零瓦待机功耗的辅助电源。LinkZero-AX采用创新的断电模式,可在最终产品闲置或待机时有效关断辅助电源。断电模式由微控制器可获取的信号触发,它可以完全关断内部开关控制电路。然而,在断电模式下,旁路引脚仍维持调整,通过复位脉冲或按键操作即可将LinkZero-AX IC唤醒。

当与CAPZero和SENZero配合使用时,LinkZero-AX能够将高功率产品的待机功耗降低至5 mW,甚至近乎零瓦。或者,在断电模式下,LinkZero-AX从经调整的旁路引脚便可提供500 µA, 4 V的电流。该电流可以在断电模式下为系统唤醒传感器供电,而系统的其他元件均处于待机状态。该功能虽然会增大系统待机功耗,但能为低电流传感器直接供电,不需要电源进行开关操作。

产品特色

零待机功耗实现最低系统成本

  • 系统配置简单,通过用户控制的唤醒功能即可实现零待机/断电功耗
  • 非常严格的IC参数容差可提高系统制造良品率
  • 适合低成本无箝位设计
  • 频率调制技术可极大降低EMI滤波元件的成本
  • 增大的封装爬电距离可提高系统的应用可靠性

先进的保护/安全特性

  • 迟滞热关断保护-自动恢复功能降低了电源从故障现场的回收
  • 通用输入范围可在全世界范围内使用
  • 自动重启动功能在短路及开环电路故障状况下可将输出功率降低85%以上
  • 简单的ON/OFF控制,无需环路补偿
  • 高带宽提供了快速的无过冲启动

EcoSmart – 高效节能

  • 在230 VAC输入下待机/断电功耗低于3 mW*
  • 无需增加任何元件,轻松满足全球所有的节能标准
  • ON/OFF控制可在极轻负载时具备恒定的效率

应用

  • 超低功耗待机及辅助电源

*IEC 62301第4.5条规定低于5 mW的待机功率为零功耗。
