InnoSwitch3-PD

内部集成USB Type-C和USB-PD控制器、高压开关、同步整流和FluxLink反馈功能的准谐振离线反激式开关IC

应用
筛选器 筛选产品
显示1 - 8项产品, 共8项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 封闭式, 通用
击穿电压
PowiGaN?
PDOs & APDOs
保护功能
自动重启和过压反应
次级回应
输出电压 (最小)
输出电压 (最大)
输入电压 (最小)
输入电压 (最大)
开关频率 (最小)
开关频率 (最大)
IC封装
拓扑结构
输出配置
产品类型
控制方式
内部开关
电缆压降补偿
过热反应
运作温度 (最小)
运作温度 (最大)
MSL等级
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 20.0 W
Breakdown Voltage 650 V
PDOs & APDOs 5V/3A, 9V/2.22A, 12V/1.67A, 3.3-5.9V/3A, 3.3-11V/2.2A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 30.0 W
Breakdown Voltage 650 V
PDOs & APDOs 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 3.3-11V/3A, 3.3-16V/2A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 65.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, 3.3-21V/3A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 100.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A, 3.3-21V/5A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 45.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A, 3.3-16V/3A, 3.3-21V/2.25A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 30.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 3.3-11V/3A, 3.3-16V/2A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 60.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/3A, 9V/3A, 15V/3A, 20V/3A, 3.3-21V/3A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available
Data Sheet 查看PDF
Output Power (Max) - Enclosed, Univ 45.0 W
Breakdown Voltage 750 V
PowiGaN? Yes
PDOs & APDOs 5V/5A, 9V/5A, 15V/3A, 20V/2.25A, 3.3-11V/5A, 3.3-16V/3A, 3.3-21V/2.25A
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Secondary Response Auto-restart, Latch Off
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Switching Frequency (min) 25 kHz
Switching Frequency (max) 95 kHz
IC Package inSOP-24D
Topology Flyback
Output Profile CV/CC
Product Type IC
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Over-Temperature Response Hysteretic
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
RDK Available

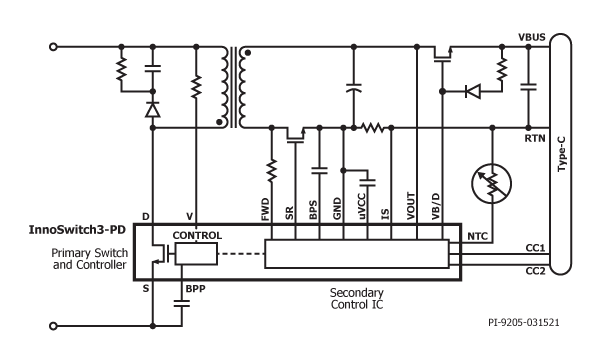

InnoSwitch3-PD将初级开关和控制器、隔离反馈、次级控制和USB-PD控制器集成到同一个封装中,大大简化了USB-PD电源的开发和制造。

其架构采用一种创新性磁感耦合反馈机制,即Fluxlink技术,提供一种安全可靠且低成本的控制方式,传递精确的输出电压和输出电流直接检测信息。InnoSwitch3-PD的初级控制器是准谐振(QR)反激式控制器,它能够在连续导通模式(CCM)下同时采用变频和变流控制方案进行工作。InnoSwitch3-PD次级控制器包括磁感耦合至初级接收器的发射器电路、控制电源参数和遥测功能的I2C接口、4.4V稳压器、SR FET驱动器、准谐振(QR)模式电路、振荡器和时钟功能电路以及众多集成的保护特性。

产品特色

  • USB Type C和PD控制器
  • USB PD 3.0 + PPS提供商和QC4支持
  • 符合USB Type-C Rev. 1.3标准
  • 具有软启动和过流保护功能的集成VCONN FET
  • 支持电子标识线缆
  • 可设定的上拉电阻Rp
  • 片内温度传感器
  • 提供电源状态和故障监测的遥测技术
  • 采用PowiGaN技术 – 在无需散热片的情况下可提供高达100W输出功率
  • 专用NTC引脚提供温度检测

高度集成,外形紧凑

  • 多模式准谐振(QR)/DCM/CCM反激式控制器、高压开关、次级侧检测和同步整流驱动器
  • 可在所有输入电压及负载下实现效率的优化
  • 反馈方式采用内部集成的FluxLink技术,且满足HIPOT(高压绝缘)要求
  • 即时快速的动态响应
  • 可驱动低成本的N通道FET串联负载开关

EcoSmart – 高效节能

  • 空载功耗低至14mW
  • 使电源设计能够轻松符合所有全球能效标准
  • 低散热

先进的保护/安全特性

  • 对输入电压进行监测,以便进行精确的电压缓升/跌落保护和过压保护
  • 可单独设定输出过压/欠压故障的响应方式
  • SR FET栅极驱动开路检测
  • 迟滞热关断保护
  • 可对用于系统故障情况下的Watchdog电路响应时间进行设定
  • 内部集成高压FET,可对CC1、CC2提供VBUS短路保护

完全符合各项安规要求

  • 加强绝缘
  • 绝缘强度>4000VAC
  • 产品100%进行HIPOT合规性测试
  • 符合UL1577和TUV (EN60950)标准

环保封装

  • 无卤素且符合RoHS标准
