RDK-953Q - 100 W Power Supply Replacing 12 V Battery in 400 V BEV System Using InnoSwitch3-AQ (900 V PowiGaN Switch)

RDK-953Q - 100 W Power Supply Replacing 12 V Battery in 400 V BEV System Using InnoSwitch3-AQ (900 V PowiGaN Switch)

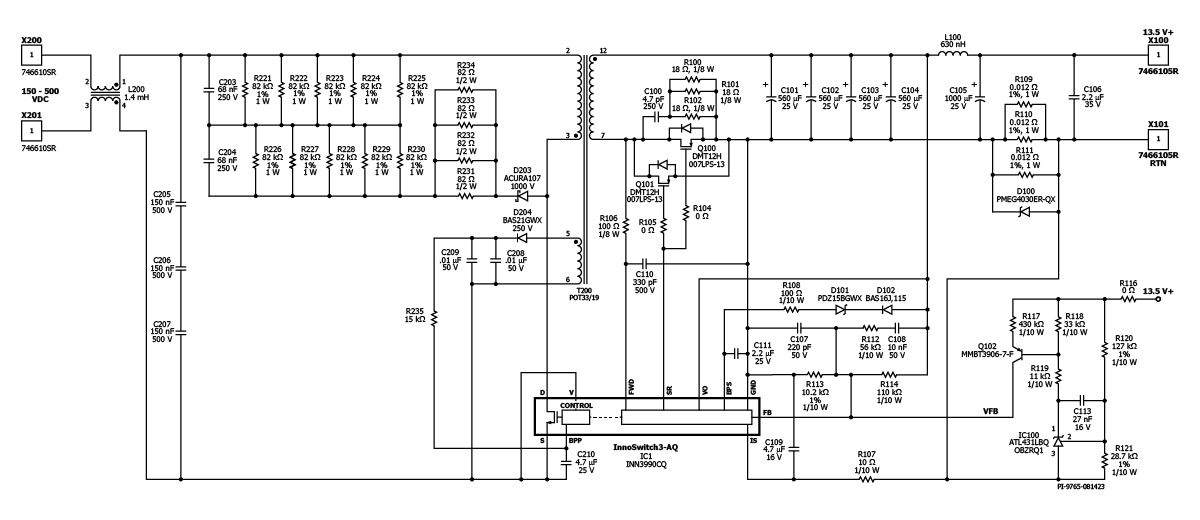

100 W flyback power supply for 400 V DC BEV automotive applications as a replacement for the 12 V lead-acid auxiliary battery, using 900 V PowiGaN-based InnoSwitch3-AQ (INN3990CQ)

应用

Design Document

下载PDF 查看PDF

经销商
产品规格
相关资源

经销商
产品规格
相关资源

查看其他经销商

回到顶部

产品规格

Associated Product Numbers INN3990CQ

设计类型 Reference Design Reports (RDR)

拓扑结构 Flyback

Vout (max) 7.40 V

Vout 1 13.50 V

Vin (min) 150

Vin (max) 400

效率 92.00%

是否隔离？ Yes

输出数量 1

输出功率 100.00 W

OVP? Yes

使用产品型号 INN3990CQ

Gerber File RDR-953Q Gerber Files
