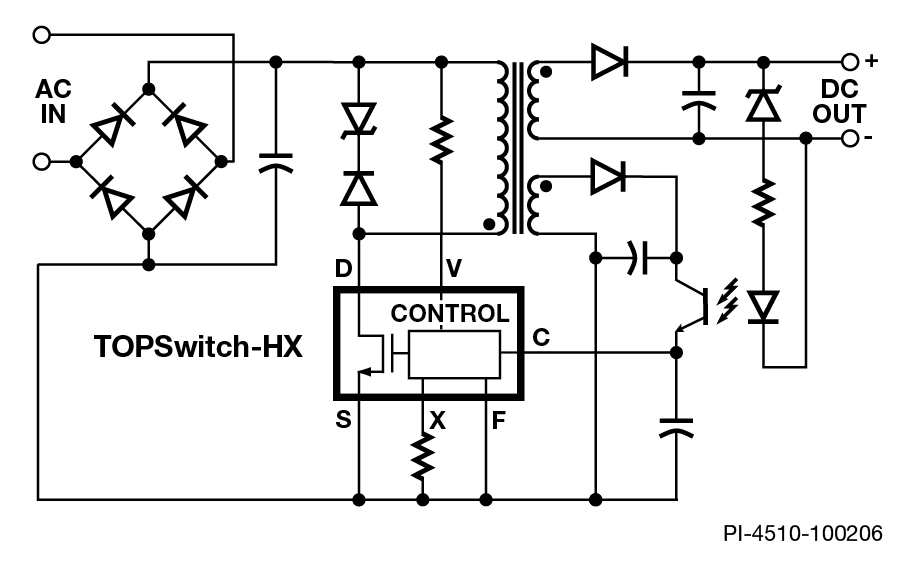

TOPSwitch-HX

Enhanced EcoSmart, Integrated Off-Line Switcher with Advanced Feature Set and Extended Power Range

Applications
Filters Filter Products
  • Filters
    • Output Power (Max) - Enclosed, 230V (W)
      Output Power (Max) - Enclosed, 230V (W)
    • Output Power (Max) - Open Frame, 230V (W)
      Output Power (Max) - Open Frame, 230V (W)
    • IC Package
      IC Package
    • Output Power (Max) - Enclosed, Univ (W)
      Output Power (Max) - Enclosed, Univ (W)
    • Output Power (Max) - Open Frame, Universal (W)
      Output Power (Max) - Open Frame, Universal (W)
Showing 1 - 50 of 58 Products
Product Parts Table
Product
Data Sheet
Output Power (Max) - Enclosed, 230V
Output Power (Max) - Open Frame, 230V
IC Package
Breakdown Voltage
Output Power (Max) - Enclosed, Univ
Output Power (Max) - Open Frame, Univ
Switching Frequency (max)
Control Features
Protection Features
Auto-Restart Threshold
Mounting Type
Product Type
Voltage - Input (Max)
Voltage - Input (Min)
Temperature - Operating (Max)
Temperature - Operating (Min)
Control Scheme
Internal Switch
Auto-Restart & Overvoltage Response
Over-Temperature Response
Topology
Secondary Response
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 64.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 105.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 78.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 122.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 92.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 162.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 120.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet View PDF
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart

Description:

The TOPSwitch-HX is a highly integrated monolithic off-line switcher IC designed for off-line power supplies. TOPSwitch-HX integrated circuits enable design of power supplies up to 195 W, while providing high efficiency under all load conditions. TOPSwitch-HX also provides very good performance at low load and during standby (no load) operation. The TOPSwitch-HX Family allows the designer to meet the efficiency requirements for the new energy-efficiency standards. Innovative and proprietary features enable design of compact and cost effective switching power supplies while reducing overall design cycle time and system cost. The TOPSwitch-HX Family also enables the design of power supplies with robust functionality and provides enhanced safety features such as output overvoltage protection, overload power limiting and hysteretic thermal protection.

Lower System Cost, Higher Design Flexibility

  • Multi-mode operation maximizes efficiency at all loads
  • New eSIP-7C and eSIP-7F packages build on PI’s experience with high power and high reliability packages
  • No heatsink required up to 35 W (up to 48 W at 230 VAC) using P, G or M packages
  • Output overvoltage protection (OVP) is user programmable for latching/non-latching shutdown with fast AC reset
  • Line undervoltage (UV) detection prevents turn-off glitches
  • Line overvoltage (OV) shutdown extends line surge limit
  • Accurate programmable current limit
  • Optimized line feed-forward for line ripple rejection
  • 132 kHz frequency (254Y-258Y and all E packages) reduces transformer and power supply size (half frequency option for video applications)
  • Tight I2f parameter tolerance reduces system cost
  • Frequency jittering reduces EMI filter cost
  • Heatsink is connected to SOURCE for low EMI
  • Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions
  • Accurate hysteretic thermal shutdown function automatically recovers without requiring a reset
  • Fully integrated soft-start for minimum start-up stress
  • Extended creepage between DRAIN and all other pins improves field reliability

EcoSmart – Energy Efficient

  • Energy efficient over entire load range
  • No-load consumption
    • Less than 200 mW at 230 VAC
  • Standby power for 1 W input
    • >600 mW output at 110 VAC input
    • >500 mW output at 265 VAC input

eSIP (E) Package (eSIP Package Information)

  • Low junction-to-case thermal impedance (2 °C per watt)
  • Low height is ideal for adapters where space is limited
  • Simple clip-mounted heatsink reduces manufacturing cost

Applications:

  • LCD monitors
  • Personal computers
  • Small servers
  • Laptop adapters
  • Set-top boxes
  • Digital TVs
  • Printers
  • DVD Players and Recorders
  • UPS
  • Video Games
  • Broadband Modems
  • Cellular phone adapters
  • Audio Amplifiers
