SENZero

Zero Loss High Voltage Sense Signal Disconnect IC

Applications
Filters Filter Products
Showing 1 - 2 of 2 Products
Product Parts Table
Product
Data Sheet
Disconnect MOSFETs
Control Features
Breakdown Voltage
IC Package
Protection Features
Mounting Type
Product Type
Temperature - Operating (Max)
Temperature - Operating (Min)
Data Sheet View PDF
Disconnect MOSFETs 3
Control Features Sense Signal Disconnect
Breakdown Voltage 650 V
IC Package SO-8
Protection Features Remote Shutdown
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Data Sheet View PDF
Disconnect MOSFETs 2
Control Features Sense Signal Disconnect
Breakdown Voltage 650 V
IC Package SO-8
Protection Features Remote Shutdown
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C

Description

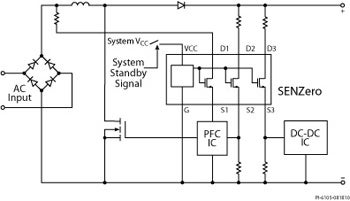

SENZero is a compact low cost solution to eliminate losses in resistive signal paths connected between high-voltage rails and switching power supply controller(s). Examples include feedforward or feedback signal paths connected to boost controllers in power factor corrected systems and feedforward signal paths in two switch forward / LLC / half and full bridge converters.

The device is available in 2 (SEN012) and 3 (SEN013) channel versions according to the application’s requirements. The internal gate drive and protection circuitry provides gate drive signals to the internal 650 V MOSFETs in response to the voltage applied to the VCC pin. This simple configuration provides easy integration into existing systems by using the system VCC rail as an input to the SENZero.

The SENZero family uses a low cost compact SO-8 package to reduce PCB area while the pin configuration is designed to meet pin-pin fault conditions.

Product Highlights

  • Eliminates significant standby losses
    • Disconnects unnecessary circuit blocks during standby, remote-off, or light-load conditions
  • Ultra low leakage (maximum 1 µA) 650 V MOSFETs
    • < 0.5 mW per channel during standby
  • Single component provides remote disconnect functionality
    • No external components or additional bias supply needed for remote-off
    • Integrates multiple disconnect MOSFETs, gate drive, and protection
    • Minimal component count provides higher reliability
  • Protection features to help production/manufacturing yields
    • Pin-to-pin fault and ESD protection
  • Triggerable via remote-off signal or load conditions
    • Integrated gate pull down circuit protects against loss of trigger signal fault
  • Green package technology
    • RoHS compliant and halogen free
  • Withstands high differential surge conditions
    • S1, S2 and S3 interface with controller pins up to 6.5 V above system ground

EcoSmart – Energy Efficient

  • <3 mW loss at 230 VAC in Off/standby mode

Applications

  • ACDC converters with high-voltage resistive signal paths
  • Ideal for all very low standby systems such as those meeting EuP Lot 6 and similar energy efficiency standards
