1SP0630S2M1R-CM1200HC-66X

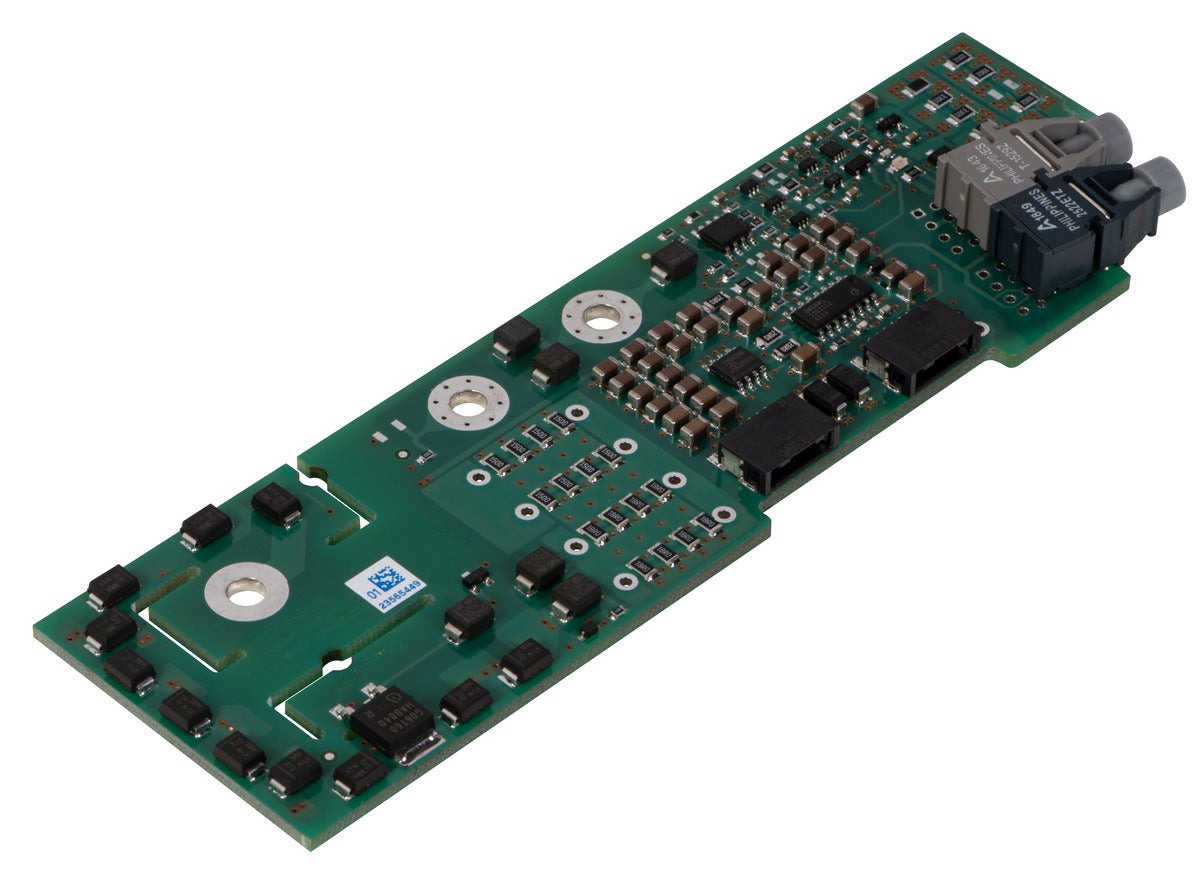

Compact single-channel intelligent plug-and-play gate driver optimized for 130 x 140 mm single IGBT High Power (IHM) modules

Applications
Product Details

The Plug-and-Play 1SP0630 gate drivers are compact single-channel intelligent gate drivers optimized for 130 x 140 mm single IGBT High Power (IHM) modules, which are used in railway and other long-life applications.  The compact SCALE-2 gate drivers match the footprint of the smaller IHM single-channel IGBT module formats with 1200 A to 1400 A output current and 3300 V IGBT blocking voltage.

These gate drivers meet IEC 61373 specifications for shock and vibration and IEC 60068-2-xx environmental requirements. Units are also EMC-qualified according to EN 50121-3-2 and IEC 6100-4-x. With standard conformal coating, the new gate drivers can also undergo burn-in on request for added reliability. Improved connectors increase interconnection security and facilitate fast release without tooling. Fiber-optic interfaces are provided.

All 1SP0630 gate drivers feature Power Integrations’ Dynamic Advanced Active Clamping, which allows an extended DC-link voltage range in IGBT "off" state for up to 60 seconds in railway and regenerating applications.  Also included is short-circuit and under-voltage lock-out protection, along with failure status output.

A complete solution is comprised of a "main" driver ("V2M1" or "S2M1"), one or more "peripheral" drivers ("D2S1"), and an external power supply (ISO6125R-33).  Cables (RLC-IMS-61-050-0, and RLC-PSI-41-050-0) connect the drivers, power supply, and external control circuitry.





Specifications
Supported Module(s) CM1200HC-66X
Max Switching Frequency 10.00 kHz
IGBT Voltage Class 3300 V
Technology SCALE-2
Product Type Plug-and-Play Driver
Power - Output/Channel (Max) 1.60 W
Temperature - Operating (Min) -40 ℃
Temperature - Operating (Max) 85 ℃
Interface Type Fiber Optic
Module Housing 130x140mm
IGBT Manufacturer Mitsubishi
Number of Channels 1
Gate Peak Current (Max) +30 A
Product Type Board
Product Sub-Type PnP Driver
Supported Module Type IGBT
Main/Peripheral Main
Supported Topologies 3-level NP-Clamped - Type 1 3-level NP-Clamped - Type 2 2-level Voltage Source Multi-Level NP-Clamped
Paralleling Support? Yes
Protection Features Dynamic Adv Active Clamping Short Circuit UVLO(Pri-side)
Conformal Coated? No
Driving Mode Halfbridge
Connection Type to IGBT Direct
Gate Boosting? No
