Six-Channel SCALE™-1 Driver Core

This product is in End-of-Life status and is no longer available.
Suggested Alternative: 2SC0108T

Product Details

6SD106EI series 6-channel SCALE-1 driver cores for IGBTs up to 1700 V have a gate current capability of ±6 A and are optimized for IGBTs from 50 A to typically 200 A. The six drive channels feature electrical isolation between the control electronics and the power section. The gate voltage is ±15 V.
Each channel is equipped with a programmable Vce-monitoring function for protection against short circuit and overcurrent.

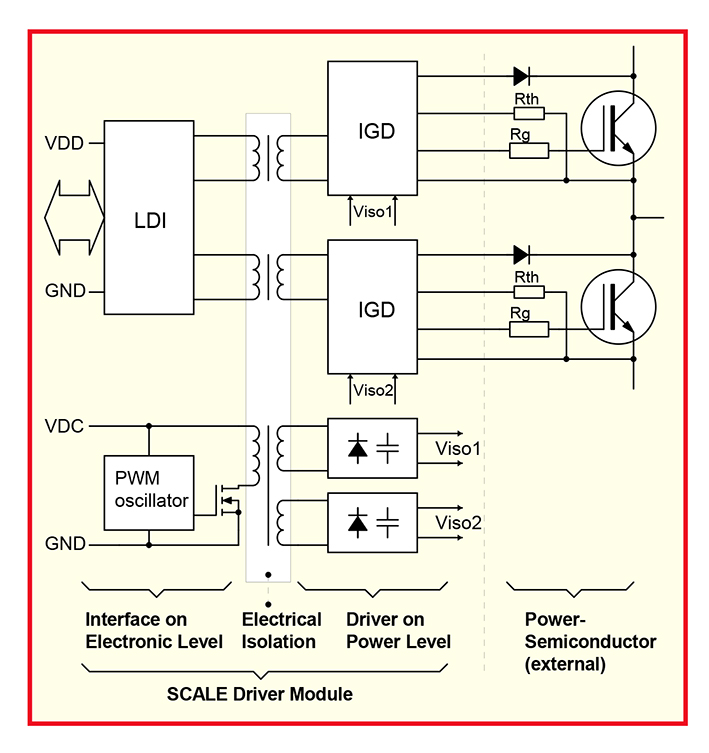

The driver is equipped CONCEPT's SCALE-1 driver chipset and can be operated in two modes: either with two independent driver channels or as a half-bridge driver with internal dead-time generation.

The integrated, electrically-isolated DC/DC converter supplies a drive power of 1 W per channel.

Highest Reliability
SCALE-1 drivers have been established as an industrial standard since 1999, and the 6SD106EI has been proven in numerous industrial and rail applications.

Key Features

  • Suitable for IGBTs up to 1700V
  • Interface with 5V...15V logic level
  • Schmitt-trigger inputs
  • Short-circuit and overcurrent protection
  • Supply undervoltage lockout
  • Isolated DC/DC converter
  • Signal transformer isolation
  • Isolated status feedback
  • Reliable, long service life
