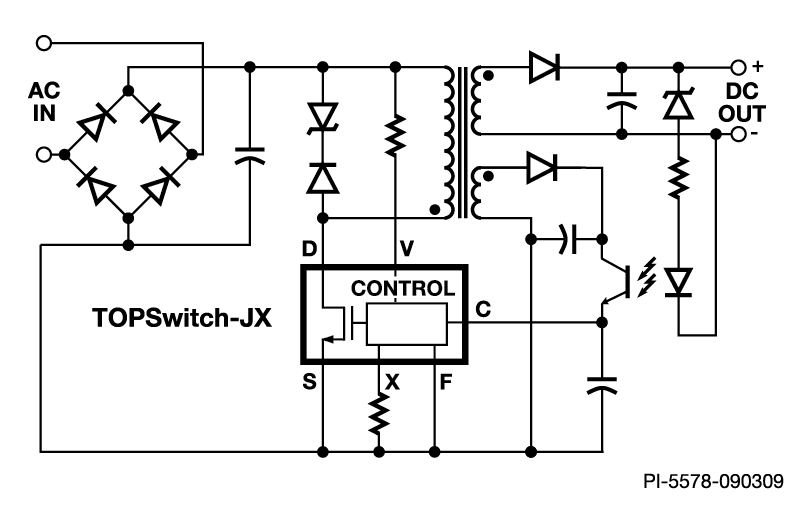

TOPSwitch-JX

PSUコントローラ及び725 V MOSFETの搭載により待機時の超低消費電力を実現

アプリケーション
フィルタ 製品を隠す
1 ~ 24個の商品を表示、 合計24個
Product Parts Table
製品
データ シート
出力 (最大) 密閉型, 230V
出力 (最大) オープンフレーム, 230V
ICパッケージ
絶縁破壊電圧
保護機能
出力 (最大) 密閉型, ユニバーサル
出力 (最大) オープンフレーム, ユニバーサル
スイッチング周波数 (最大)
制御機能
自動再起動しきい値
入力電圧 (最小)
入力電圧 (最大)
取付タイプ
製品タイプ
動作温度 - 最大
動作温度 - 最小
制御方式
内部スイッチ
自動再起動と過電圧応答
過熱応答
トポロジー
二次応答
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 49.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 16.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 53.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 22.5 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 36.0 W
Output Power (Max) - Open Frame, 230V 58.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 23.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 24.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 17.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 137.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 103.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 27.5 W
Output Power (Max) - Open Frame, 230V 137.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 103.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 148.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 112.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 46.0 W
Output Power (Max) - Open Frame, 230V 73.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 30.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 148.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 21.5 W
Output Power (Max) - Open Frame, Univ 112.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 162.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 120.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 33.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 32.0 W
Output Power (Max) - Open Frame, 230V 162.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 22.5 W
Output Power (Max) - Open Frame, Univ 120.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 190.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 140.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 56.0 W
Output Power (Max) - Open Frame, 230V 91.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 60.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 34.0 W
Output Power (Max) - Open Frame, 230V 190.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 24.5 W
Output Power (Max) - Open Frame, Univ 140.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 177.0 W
Output Power (Max) - Open Frame, 230V 244.0 W
IC Package eSIP-7C
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 118.0 W
Output Power (Max) - Open Frame, Univ 177.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 63.0 W
Output Power (Max) - Open Frame, 230V 102.0 W
IC Package eSOP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 66.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Surface Mount
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 36.0 W
Output Power (Max) - Open Frame, 230V 244.0 W
IC Package eDIP-12B
Breakdown Voltage 725 V
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 177.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart Threshold 5.8
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart

概要

TOPSwitch-JX は、低コストで725 V 耐圧 MOSFET、高電圧スイッチング、マルチモード PWM 制御回路、発振器、過熱保護、保護回路及びその他の制御回路をワンチップ上に集積しています。

製品ハイライト

EcoSmart - 高いエネルギー効率

  • 全負荷範囲で高効率化
  • 230 VAC 入力時、無負荷時消費電力 70 mW 未満を実現
  • 230 VAC 入力、1 W 出力時に待機電力750 mW 以下

低システムコスト、高い設計自由度

  • 全負荷範囲で最大効率を実現するマルチモード PWM 制御
  • 132 kHz 動作周波数によりトランスおよび電源を小型化
    • 最高レベルのエネルギー効率基準に適合する 66kHz 動作オプション
  • 外部設定可能な高精度カレント リミット
  • 最適化されたライン フィードフォワードによる入力リップルの低減
  • 周波数ジッタリングにより、EMI フィルタコストを削減
  • ソフトスタート機能内蔵で、起動時の部品へのストレス低減
  • 725 V 耐圧の MOSFET
    • 設計ディレーティング基準に容易に対応

優れた保護特性

  • オートリスタート機能により過負荷時の電力を 3% 未満に低減
    • 出力短絡保護 (SCP)
    • 出力過電流保護 (OCP)
    • 出力過負荷保護 (OPP)
  • 出力過電圧保護 (OVP)
    • 自動復帰型/ラッチ停止型タイプ保護にユーザー設定可能
    • 容易に AC 高速リセットに対応
    • 一次側あるいは二次側センス双方に対応
  • 低入力電圧 (UV) 検出により、ターンオフ時のグリッチを解消
  • 過入力電圧 (OV) シャットダウンにより入力サージ耐量を拡大
  • ヒステリシスを十分確保した高精度過熱保護機能 (OTP)

高機能パッケージ オプション

  • eDIP-12 パッケージ:
    • 極薄型設計対応 低背型形状
    • 基板及びヒートシンクへの熱放散
    • 外付けヒートシンク取り付け時、TO-220 と同等の熱抵抗対応
  • eSIP-7C パッケージ:
    • 基板実装を最小限に抑えた垂直形状
    • 金具を使った簡単なヒートシンク取り付けにより、TO-220 と同等の熱抵抗対応
  • eSOP-12 package:
    • 66 W universal input output power capability
    • Low profile surface mounted for ultra-slim designs
    • Heat transfer to PCB via exposed pad and SOURCE pins
    • Supports wave or reflow soldering
