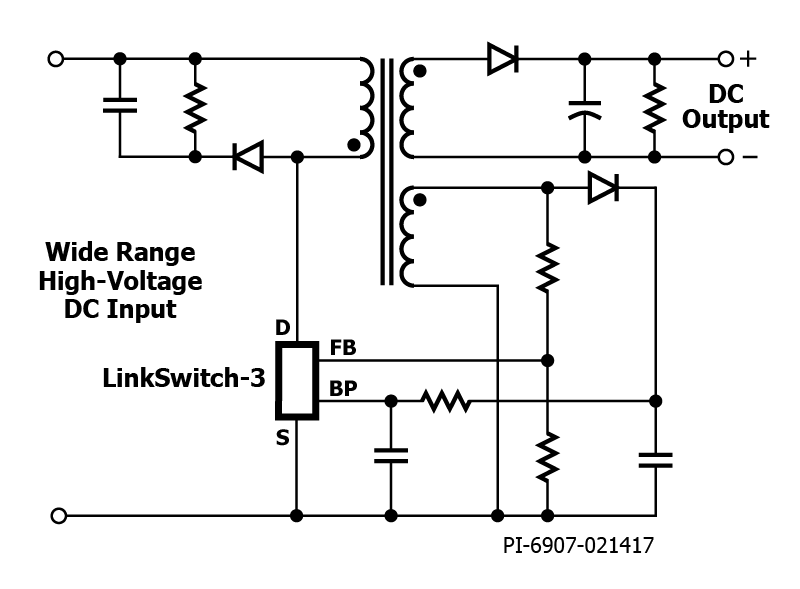

LinkSwitch-3

アダプタや充電器に適した高エネルギー効率、高精度の一次側制御 CV/CC スイッチング電源用 IC

アプリケーション
フィルタ 製品を隠す
1 ~ 24個の商品を表示、 合計24個
Product Parts Table
製品
データ シート
RDK Available
出力 (最大) オープンフレーム, ユニバーサル
出力 (最大) 密閉型, ユニバーサル
絶縁破壊電圧
ICパッケージ
ケーブル落下補償
トポロジー
制御方式
出力プロファイル
スイッチング周波数 (最大)
保護機能
取付タイプ
製品タイプ
入力電圧 (最大)
入力電圧 (最小)
動作温度 - 最大
動作温度 - 最小
内部スイッチ
過熱応答
制御機能
スイッチング周波数 (最小)
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 4.1 W
Output Power (Max) - Enclosed, Univ 3.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.02
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.04
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 4.1 W
Output Power (Max) - Enclosed, Univ 3.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 5.1 W
Output Power (Max) - Enclosed, Univ 4.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 7.5 W
Output Power (Max) - Enclosed, Univ 7.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 9.0 W
Output Power (Max) - Enclosed, Univ 8.5 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.06
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.08
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 6.1 W
Output Power (Max) - Enclosed, Univ 5.5 W
Breakdown Voltage 725 V
IC Package SO-8C
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz
Data Sheet PDF を表示
RDK Available
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Enclosed, Univ 10.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Cable Drop Compensation 1.01
Topology Flyback
Control Scheme Primary-side
Output Profile CV/CC
Switching Frequency (max) 85 kHz
Protection Features Output Open Loop, Output Short Circuit, Overtemperature
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 264 V
Voltage - Input (Min) 90 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Over-Temperature Response Hysteretic
Control Features Cable Drop Compensation, Selectable Current Limit, Frequency Jittering, Programmable Switching Frequency, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 60 kHz

LinkSwitch-3 ファミリーの IC により、フォトカプラ及び二次側制御回路が不要となり、低電力 CV/CC (定電圧/定電流) チャージャーの設計は、従来より大幅に簡素化されました。このデバイスは、画期的な制御技術によって、トランス及び内部パラメータ公差や入力電圧の変動を補正し、出力電圧及び電流に対する高いレギュレーション特性を実現しています。

このデバイスには、725 V パワー MOSFET、ON/OFF 制御ステートマシン、自己バイアス用高電圧スイッチング電流源、周波数ジッタリング機能、パルス・バイ・パルス・カレント リミット、及び自動復帰タイプ過熱保護回路がワンチップに組み込まれています。

製品ハイライト

大幅に簡素化された CV/CC コンバータ

  • フォトカプラ及びすべての二次側 CV/CC 制御回路が不要
  • すべての位相補償回路が不要

優れた動作特性

  • トランスのインダクタンス バラつき、入力電圧の変動、ケーブルの電圧降下を補正
  • 独自のトリミング技術により、高精度な IC パラメータ補償を実現
  • 周波数ジッタリングにより EMI フィルタコストを大幅に削減
  • 最大 85 kHz のプログラム可能なスイッチング周波数によりトランスの小型化が可能
  • 最低動作周波数を固定し、負荷過渡応答を改善

保護/安全面の特長

  • ヒステリシス付き過熱保護機能 – 自動復帰機能により電源装置 の市場返品が減少
  • 基板上及び IC パッケージ上の双方において、ドレイン ピンとその他全部のピン間との高電圧沿面距離要求に適合

EcoSmart™ - 高エネルギー効率

  • 追加部品無しで世界のすべてのエネルギー効率規制に容易に適合
  • 230 VAC 入力、バイアス巻線使用時、無負荷時消費電力30 mW 以下

グリーンパッケージ

  • ハロゲン化合物不使用、RoHS 指令適合パッケージ

アプリケーション

  • 携帯及びコードレス電話の充電器
  • PDA
  • アダプタ
  • MP3/ポータブル オーディオ機器
