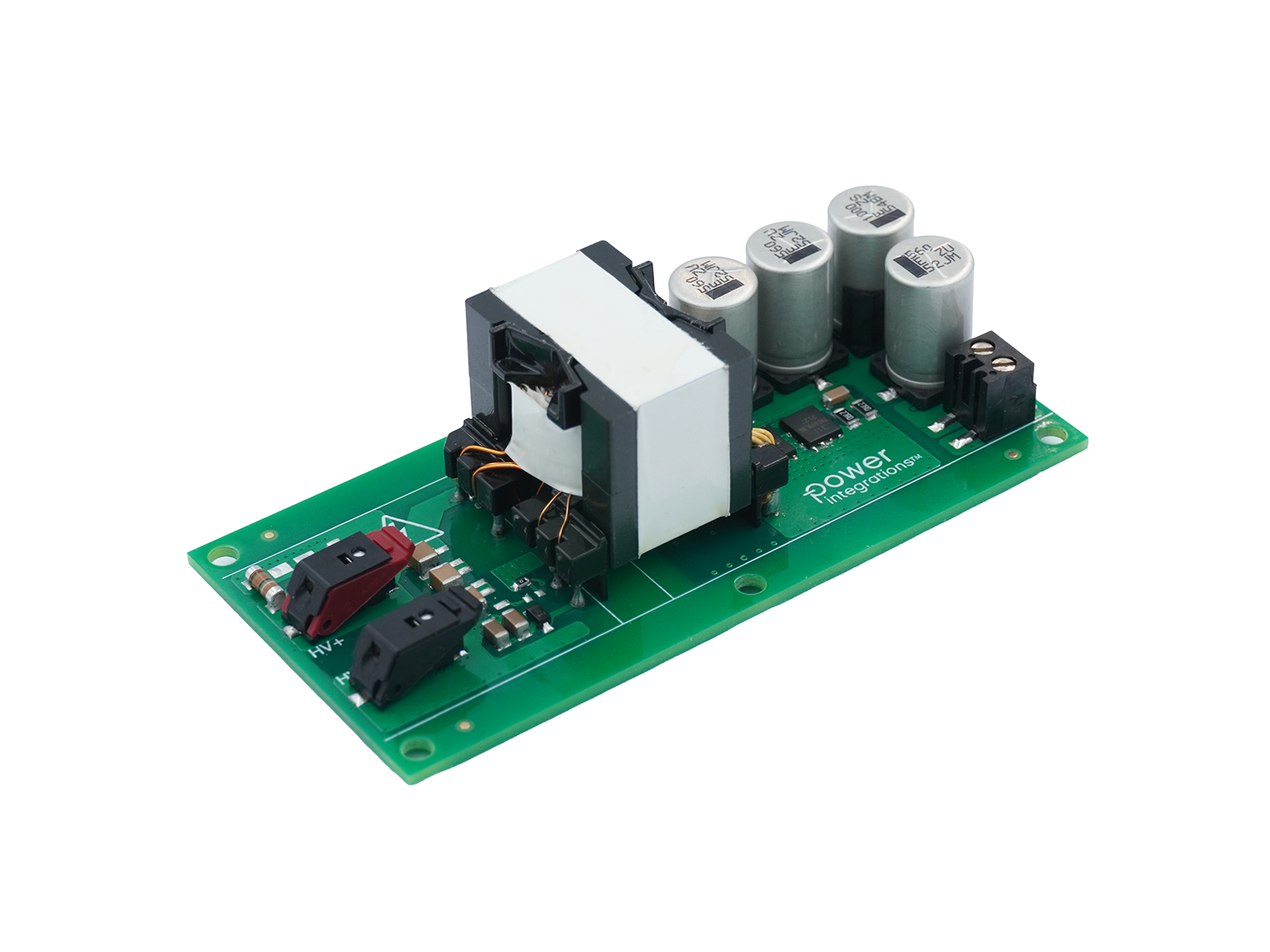

RDK-85SLR - 46 W DC-DC Converter for Solar Racing Car Using InnoSwitch3-AQ (750 V PowiGaN) 适合汽车应用的集成750 V、900 V及1700 V开关和FluxLink反馈技术的恒压/恒流准谐振反激式开关IC 应用 Design Document 下载PDF 查看PDF 经销商 产品规格 相关资源 经销商 产品规格 相关资源 查看其他经销商 回到顶部 产品规格 Associated Product Numbers INN3990CQ 设计类型 Reference Design Reports (RDR) 拓扑结构 Flyback RoHS? Yes Vout 1 12.00 V Vin (min) 100 Vin (max) 150 P (NoLoad) 14.30 mW 恒压/恒流 CV/CC 效率 95.20% 是否隔离？ Yes 输出数量 1 输出功率 46.00 W OVP? Yes PFC? No 使用产品型号 INN3990CQ 回到顶部 相关资源 应用指南 AN-106Q - InnoSwitch3-AQ产品系列设计指南，适合汽车应用 AN-79 - InSOP-24和HSOP-28波峰焊接设计指南 Certificates VDE 0884-17 Certificate of Conformity with Factory Surveillance - InnoSwitch-3 & InnoMux-2 数据手册 InnoSwitch3-AQ 汽车专用产品系列数据手册 设计范例 RDR-85SLR - 46 W DC-DC Converter for Solar Racing Car Using InnoSwitch3-AQ (750 V PowiGaN) RDR-994Q - 35 W Ultra-Low Profile Power Supply with 200-1000 VDC Input and 24 V Output Using InnoSwitch3-AQ (1700 V Sic Switch) DER-1045Q - 16 W 4-Output Inverter Gate Drive Power Supply for 800 V BEV Using InnoSwitch3-AQ (1700 V SiC Switch) DER-1030Q - 20 W 4-Output Emergency Power Supply for 800 V BEV Using InnoSwitch3-AQ (1700 V SiC Switch) RDR-1054Q - 120 W Power Supply with Planar Transformer Replacing 12 V Battery in 800 V BEV Systems Using InnoSwitch3-AQ (1700 V SiC Switch) RDR-1039Q - 18 W Power Supply with Planar Transformer for 800 V BEV Systems Using InnoSwitch3-AQ (1700 V SiC Switch) RDR-952Q - 86 W Power Supply for 800 V Bus Using InnoSwitch3-AQ (1700 V SiC Switch) DER-1035Q - 70 W Power Supply Replacing 12 V Battery in 400 V BEV Systems Using InnoSwitch3-AQ (1700 V SiC Switch) RDR-953Q - 100 W 反激式电源，替代400 V DC电动汽车的12 V铅酸辅助电池，采用基于900 V PowiGaN的InnoSwitch3-AQ DER-948Q - 35 W Power Supply for 800 V Bus with 30-1000 VDC Input and 15 V Output Using InnoSwitch3-AQ (1700 V SiC Switch) DER-956Q - 13 W 双路输出电源，适用于800V电池供电的电动汽车，使用 InnoSwitch3-AQ (1700 V 氮化硅开关) DER-946Q - 10 W, 7.5 V Output Power Supply for 800 V Bus Using InnoSwitch3-AQ (1700 V SiC Switch) DER-913Q - 35 W Power Supply for 800 V Bus with 40-1000 VDC Input Using InnoSwitch3-AQ (1700 V SiC Switch) DER-926Q - 13 W Triple-Output Power Supply for 400 V Bus with 40-530 VDC Input Using InnoSwitch3-AQ RDR-840Q - 30 W Power Supply for 400 V Bus with 30-550 VDC Input Using InnoSwitch3-AQ 通用 Moisture Sensitivity Level (MSL) Packaging Information General Package Information 产品选择指南和数据手册 产品简介 – InnoSwitch3-AQ 产品简介 - PowiGaN技术 白皮书 Evaluating the Safety Isolation of the Package in an Integrated Power Device Reaching Beyond 1200 V: Lateral GaN HEMTs for High-Reliability EV and Industrial Applications InnoSwitch3-AQ Flyback Switcher IC Family AEC-Q100 Qualification Report (INN3947CQ & INN3949CQ) 视频 Design Example Unboxing - DER-1030Q - 20 W 4-Output Automotive Power Supply Using 1700 V InnoSwitch3-AQ Design Example Unboxing - DER-1045Q - 16 W 4-Output Automotive Power Supply Using 1700 V InnoSwitch3-AQ Design Example Unboxing - RDK-994Q - 35 W Automotive Power Supply Using 1700 V InnoSwitch3-AQ and Planar Transformer Design Example Unboxing - RDK-1054Q - 120 W Automotive Power Supply Using 1700 V InnoSwitch3-AQ and Planar Transformer Wide-Creepage InnoSwitch3-AQ Switcher ICs Boost Reliability for 800 V Electric Vehicles Design Example Unboxing - RDK-1039Q - 18 W Automotive Power Supply Using 1700 V InnoSwitch3-AQ and Planar Transformer PI Webinar - PowiGaN Enables More Efficient Power Supplies for Electric Vehicles Design Example Unboxing - RDK-953Q - 100 W Automotive Power Supply Using 900 V PowiGaN-based InnoSwitch3-AQ Design Example Unboxing - DER-946Q - 10 W Automotive Emergency Power Supply Using 1700 V InnoSwitch3-AQ Charging Your EV on a Quick Grocery Run Who Needs 900 V GaN? Design Example Unboxing - DER-956Q - 13 W Dual-Output Automotive Power Supply Using 1700 V InnoSwitch3-AQ InnoSwitch3-AQ ICs with 900 V PowiGaN Switch Support 400 V EV Systems Up to 100 W PI Webinar - Reduce the Complexity of Heavy Vehicle Traction Inverters Design Tips for Using Thermal Pads and Metal Enclosures in Power Supplies for EVs Eliminating 12 V Lead-Acid Batteries in EVs InnoSwitch3-AQ Now Supports 30-1000 V Input with 1700 V SiC Switch PI 线上直播点看 - 采用800 V输入汽车变逆器的应急电源解决方案 PI Webinar On-Demand - High Voltage Power Supply and Gate Driver Solutions for Electric Vehicles PI Webinar On-Demand - Industry Tech Days Pt 2: Electronic Vehicle Emergency Power Supply that Operates with 800 V Bus PI Webinar On-Demand - Charged Conference 2020: IC Solutions for Safe and Reliable Propulsion Inverters 设计工具 Download ECad Models SIMPLIS Model for InnoSwitch-3
设计类型 Reference Design Reports (RDR) 拓扑结构 Flyback RoHS? Yes Vout 1 12.00 V Vin (min) 100 Vin (max) 150 P (NoLoad) 14.30 mW 恒压/恒流 CV/CC 效率 95.20% 是否隔离？ Yes 输出数量 1 输出功率 46.00 W OVP? Yes PFC? No 使用产品型号 INN3990CQ
