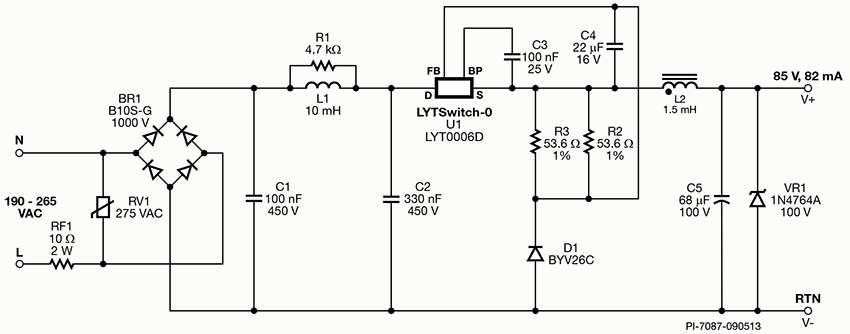

RDK-378 - Reference Design Kit for LYTSwitch-0

7 W Non-Dimmable, Non-Isolated Buck LED Driver (A17/A19 Lamp Replacement) Output: 7 W (85 V, 82 mA), 190-265 VAC

Applications
Design Document
Download PDF View PDF
Specifications
Associated Product Numbers LYT0006D
Design Type Reference Design Reports (RDR)
Topology Buck
RoHS? Yes
Vout 1 85.00 V
Vin (min) 190
Vin (max) 265
TRIAC dimmable? No
CV/CC CC
Efficiency 91.00%
Isolated? Yes
Number of outputs 1
Output Power 7.00 W
PFC? Yes
Associated Parts LYT0006
Gerber File rd378gerber.zip
