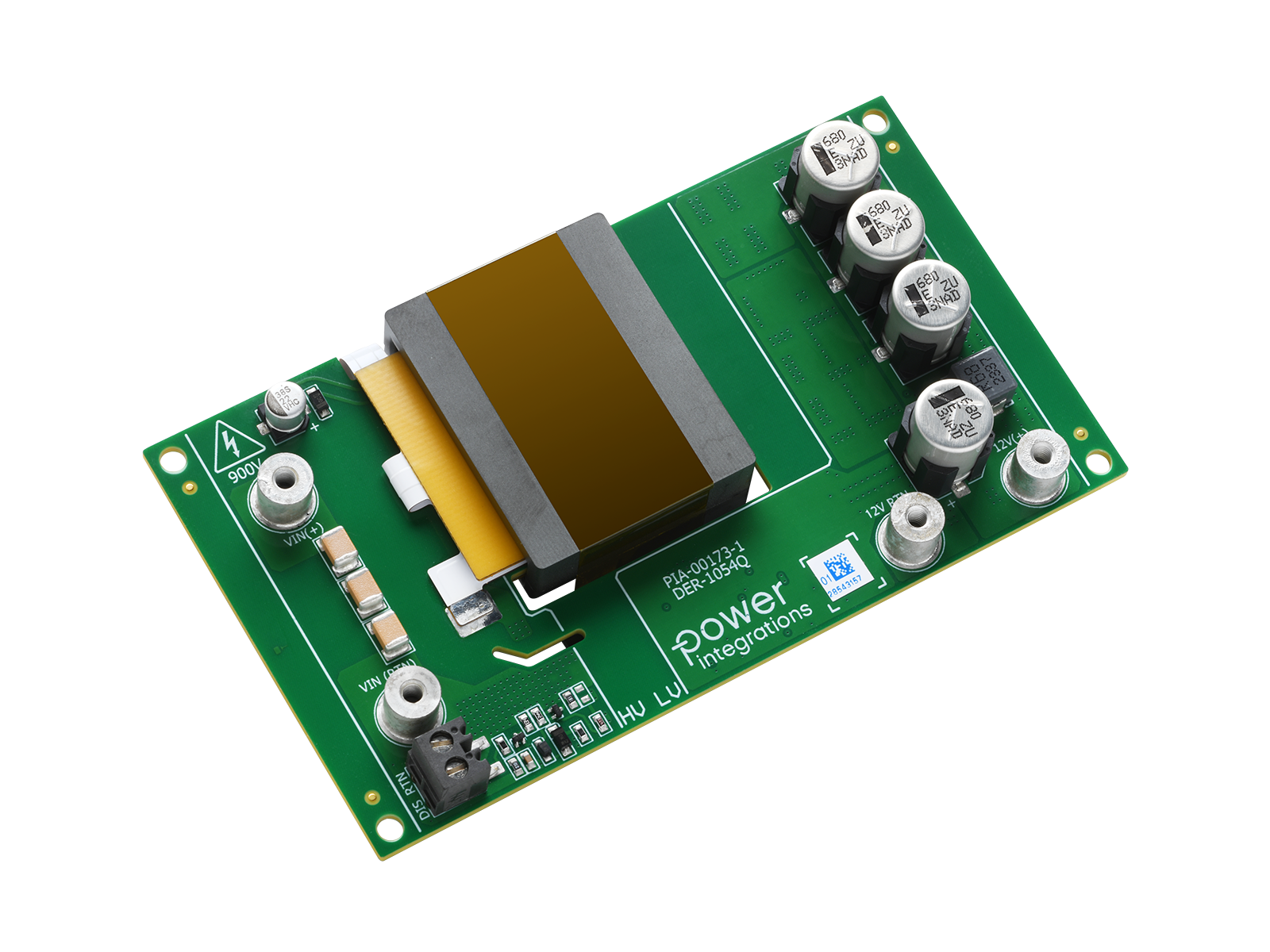

RDR-1054Q - 120 W Power Supply with Planar Transformer Replacing 12 V Battery in 800 V BEV Systems Using InnoSwitch3-AQ (1700 V SiC Switch)

120 W, 800 V Flyback Power Supply for µDCDC or Battery Replacement Using InnoSwitch3-AQ with 1700 V SiC (INN3949FQ)

下載 PDF 檢視 PDF View Report

應用

經銷商
產品規格
資源

經銷商
產品規格
資源

查看其他經銷商

回到頂部

產品規格

Associated Product Numbers INN3949FQ

設計類型 Reference Design Reports (RDR)

拓撲結構 Flyback

Vout 1 12.00 V

Vin (min) 200

Vin (max) 900

Efficiency 91.00%

隔離式？ Yes

Number of outputs 1

輸出功率 120.00 W

OVP? Yes

Associated Parts INN3949FQ

Gerber File RDR-1054Q Gerber Files
