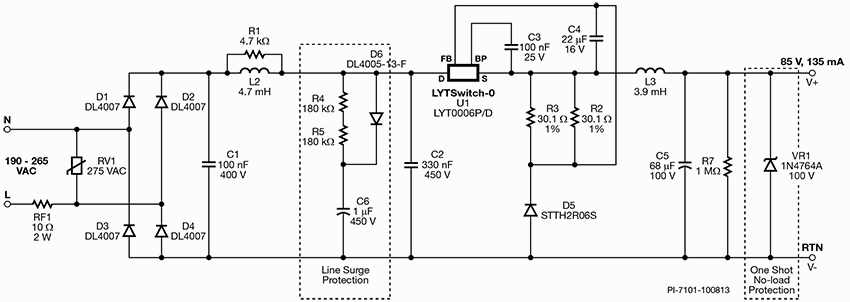

DER-384 - 12 W Non-Dimmable, Non-Isolated Buck LED Driver for T8 Lamps
Applications
Specifications
Design Type
Design Example Reports (DER)
RoHS?
Yes
Vout 1
85.00 V
Vin (min)
190
Vin (max)
265
TRIAC dimmable?
No
CV/CC
CC
Efficiency
90.00%
Isolated?
No
Number of outputs
1
Output Power
12.00 W
PFC?
Yes
Associated Parts
LYT0006
Gerber File
rd384gerber.zip
