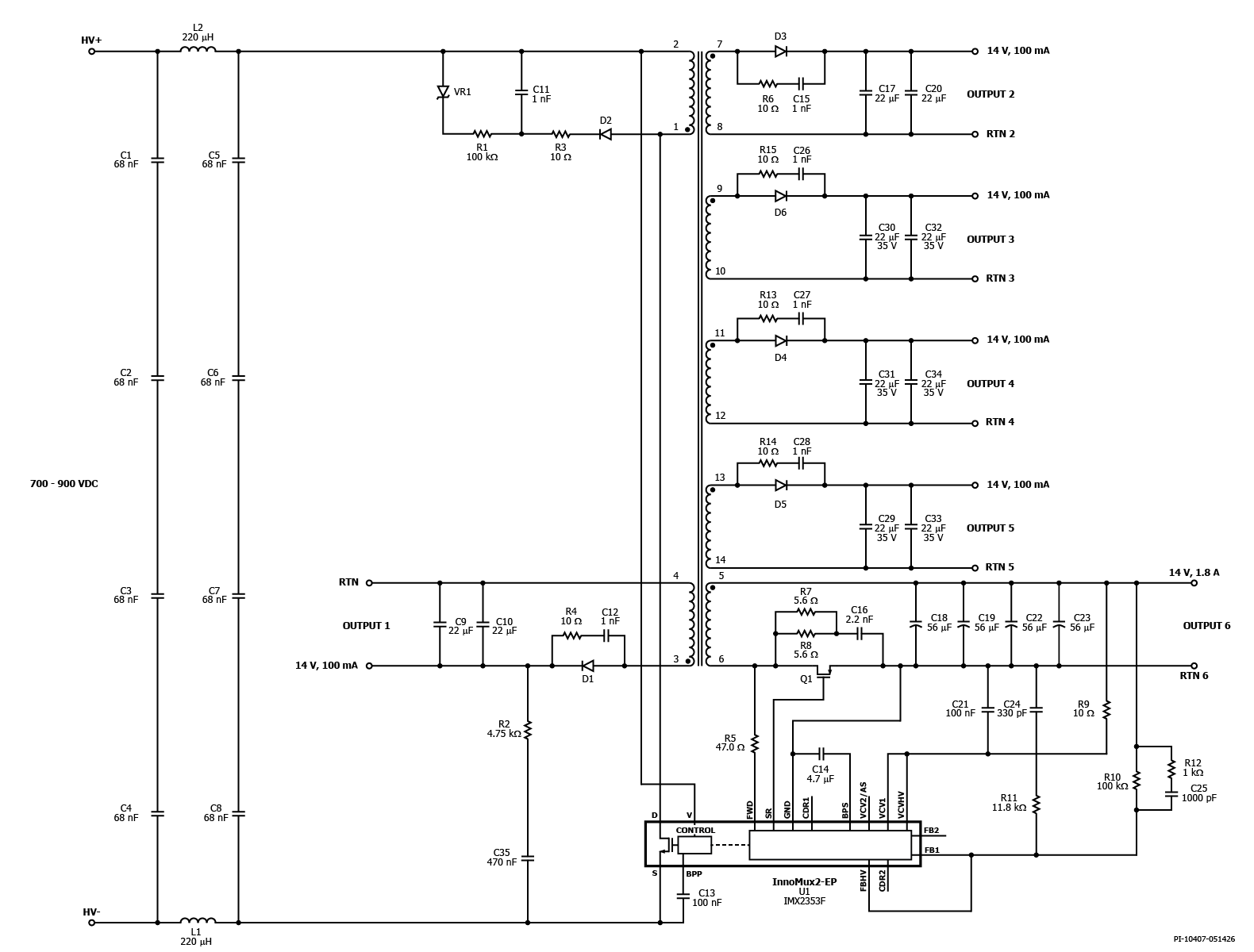

DER-1110 - 35 W Multi-Output Flyback Auxiliary Power Supply for 800 VDC AI Data Center Using InnoMux2-EP (1700 V PowiGaN)
Low-profile isolated flyback power supply delivering 14 VDC / 2 A output, plus 5 additional 14 VDC / 0.1 A outputs for server applications. It is designed to provide auxiliary power for NVIDIA™ Kyber 800 VDC AI data center applications.
- Input range: 700 VDC - 900 VDC
- Output 1: 14 VDC / 2 A
- Output 2-5 (secondary side): 14 VDC / 0.1 A
- Output 6 (primary side): 14 VDC / 0.1 A
- Zero voltage switching (ZVS)
- Low profile, < 8 mm high
- Low component count: 62 parts
- Low dissipation for excellent thermal performance with top side liquid cool configuration
