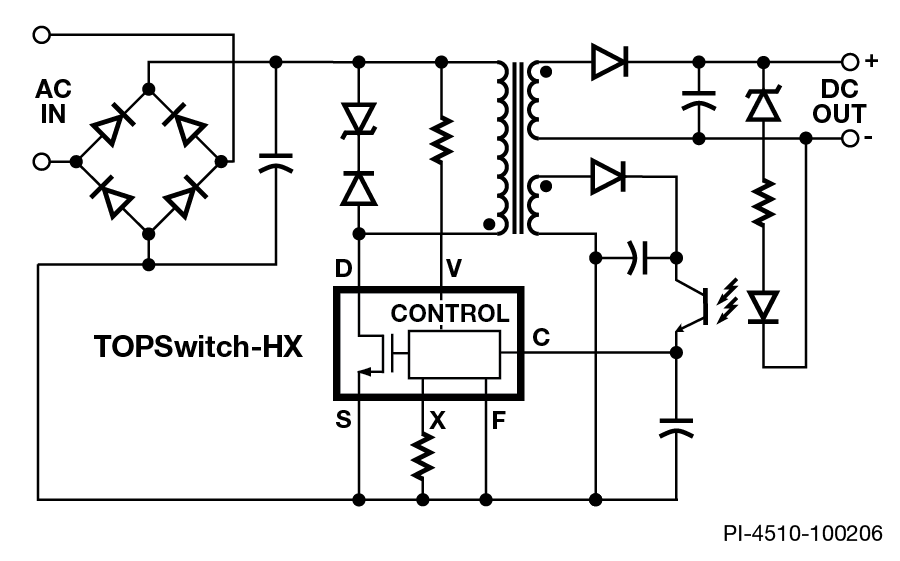

TOPSwitch-HX

고급 기능 세트 및 확장된 전력 범위를 가지는 향상된 EcoSmart 통합 오프라인 스위처

애플리케이션
필터 제품 숨기기
  • 필터
    • Output Power (Max) - Enclosed, 230V (W)
      오픈 프레임 (최대) - 폐쇄 형, 230V (W)
    • Output Power (Max) - Open Frame, 230V (W)
      출력 전력 (최대) - 오픈 프레임, 230V (W)
    • IC Package
      IC 패키지
    • Output Power (Max) - Enclosed, Univ (W)
      출력 전력 (최대) - 폐쇄 형, 범용 (W)
    • Output Power (Max) - Open Frame, Universal (W)
      Output Power (Max) - Open Frame, Universal (W)
1 - 50 개 제품 총 58 개 전시
Product Parts Table
제품
데이터 시트
오픈 프레임 (최대) - 폐쇄 형, 230V
출력 전력 (최대) - 오픈 프레임, 230V
IC 패키지
항복 전압
출력 전력 (최대) - 폐쇄 형, 범용
출력 전력 (최대) - 오픈 프레임, 범용
스위칭 주파수 (최대)
제어 기능
보호 기능
자동 재시작 임계 값
장착 유형
상품 유형
입력 전압 (최대)
입력 전압 (최소)
작동 온도 (최대)
작동 온도 (최소)
제어 체계
내부 스위치
자동 재시작 및 과전압 응답
과열 반응
토폴로지
2 차 응답
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 64.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 105.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 78.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 122.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 92.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package SDIP-10C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 162.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 120.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Remote Shutdown
Auto-Restart Threshold 5.8
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Auto-Restart & Overvoltage Response Auto-restart
Over-Temperature Response Hysteretic
Topology Flyback
Secondary Response Auto-restart

설명:

TOPSwitch-HX는 700V 파워 MOSFET, 고전압 스위칭 전류 소스, PWM 제어 및 오실레이터, 써멀 셧다운 회로, 고장 보호 회로 및 기타 제어 회로를 모놀리식 디바이스에 통합했습니다.

시스템 비용 감소 및 설계 유연성 증가

  • 멀티모드 동작으로 전체 부하에서 효율 극대화
  • 고전력 및 고신뢰성 패키지에 대한 Power Integrations만의 노하우로 탄생된 새로운 eSIP-7C 및 eSIP-7F 패키지
  • P, G 또는 M 패키지를 사용해 최대 35W(230VAC에서는 최대 48W)까지 히트싱크 불필요
  • 빠른 AC 리셋 기능으로 래칭/비래칭 셧다운을 위한 사용자 프로그래밍이 가능한 OVP(Output Overvoltage Protection)
  • UV(Line undervoltage) 탐지 기능으로 턴오프 글리치 방지
  • OV(Line overvoltage) 셧다운 기능으로 라인 서지 제한 확대
  • 정확한 프로그래밍이 가능한 current limit
  • 라인 리플 제거를 위한 최적화된 라인 피드 포워드
  • 132kHz 주파수(254Y-258Y 및 모든 E 패키지) 이용으로 트랜스포머 및 전원 공급 장치 크기 감소(비디오 애플리케이션의 경우 1/2 주파수 옵션)
  • 좁은 I2f 파라미터 오차로 시스템 비용 절감
  • 주파수 지터링으로 EMI 필터 비용 절감
  • 낮은 EMI를 위해 SOURCE에 연결된 히트싱크
  • 개선된 오토 리스타트 기능으로 단락 회로 및 오픈 루프 고장 상태에서 최대 전력의 3% 미만 소모
  • 정확한 히스테리시스를 갖고 있는 써멀 셧다운 기능을 통해 리셋할 필요 없이 자동으로 재복구
  • 시작 스트레스 최소화를 위한 완전 통합형 소프트 스타트 기능
  • DRAIN 및 기타 모든 핀 간에 연면거리 확대로 필드 신뢰성 향상

EcoSmart - 에너지 효율적

  • 전체 부하 범위에서 에너지 효율적
  • 무부하 소비 전력
    • 230VAC에서 200mW 미만
  • 1W 입력에 대한 대기 전력
    • 110VAC 입력에서 600mW 이상 출력
    • 265VAC 입력에서 500mW 이상 출력

eSIP (E) 패키지 (eSIP 패키지 정보)

  • 낮은 졍선-케이스 써멀 임피던스(W당 2°C)
  • 높이가 낮아 공간 제약적인 어댑터에 이상적
  • 단순한 클립 실장형 히트싱크로 제조 비용 절감
  • 클립 장착형 히트싱크로 IEC 60068의 충격 및 진동 테스트 통과
  • eSIP 클립 및 스트랩 제조업체 정보
  • 118W(230VAC에서 177W)의 어댑터 애플리케이션 지원
  • 외부 current limit 조절 및 원격 ON/OFF 기능
  • 전압 모니터 핀(OV, UV, 라인 피드 포워드, OVP, 리셋)
  • 스위칭 주파수 선택 가능(132/66kHz)

애플리케이션:

  • LCD 모니터
  • 개인 컴퓨터
  • 소형 서버
  • 노트북 어댑터
  • 셋톱 박스
  • 디지털 TV
  • 프린터
  • DVD 플레이어 및 레코더
  • UPS
  • 비디오 게임
  • 광대역 모뎀
  • 휴대 전화기 어댑터
  • 오디오 앰프
