TinySwitch-III

유연성이 향상되고 전력 범위가 확장된 에너지 효율적 오프라인 스위처

애플리케이션
필터 제품 숨기기
1 - 14 개 제품 총 14 개 전시
Product Parts Table
제품
데이터 시트
오픈 프레임 (최대) - 폐쇄 형, 230V
출력 전력 (최대) - 오픈 프레임, 230V
IC 패키지
항복 전압
보호 기능
출력 전력 (최대) - 폐쇄 형, 범용
출력 전력 (최대) - 오픈 프레임, 범용
과열 반응
자동 재시작 및 과전압 응답
장착 유형
상품 유형
입력 전압 (최대)
입력 전압 (최소)
작동 온도 (최대)
작동 온도 (최소)
제어 체계
내부 스위치
제어 기능
토폴로지
2 차 응답
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, 230V 11.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, 230V 11.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 11.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 11.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 13.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 8.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 13.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 8.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Open Frame, Univ 21.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Open Frame, Univ 21.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 18.0 W
Output Power (Max) - Open Frame, 230V 32.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 18.0 W
Output Power (Max) - Open Frame, 230V 32.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 36.5 W
IC Package SMD-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 14.0 W
Output Power (Max) - Open Frame, Univ 28.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, 230V 36.5 W
IC Package DIP-8C
Breakdown Voltage 700 V
Protection Features Output Open Loop, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Power (Max) - Enclosed, Univ 14.0 W
Output Power (Max) - Open Frame, Univ 28.5 W
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Latch Off
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme Secondary-side
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Topology Flyback
Secondary Response Auto-restart

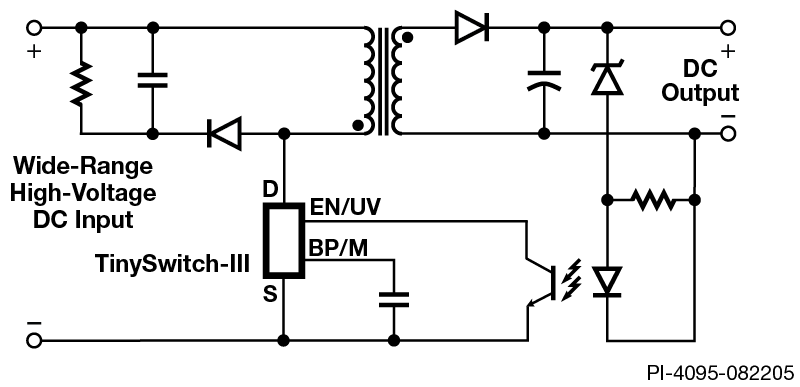

설명:

  • 단순 ON/OFF 컨트롤. 루프 보상이 필요 없습니다.
  • BP/M 커패시터 값을 통해 current limit가 선택 가능합니다.
  • 더 높은 current limit는 피크 전력을 확장하거나 오픈 프레임 애플리케이션에서 최대 연속 전력을 확장합니다.
  • 좁은 I2f 파라미터 오차를 통해 시스템 비용을 절감하고 최대 과부하 전력을 최소화하며 트랜스포머, 1차 클램프 및 2차 부품의 비용을 줄입니다.
  • 온타임 익스텐션을 통해 최소 라인 안정화율 범위 및 출력 유지 시간을 확장하여 입력 벌크 커패시턴스를 줄입니다.
  • 주파수 지터링으로 EMI 필터 비용을 절감합니다.

애플리케이션:

  • 휴대 전화기/무선 전화기, PDA, 디지털 카메라, MP3/휴대용 오디오 디바이스, 면도기용 충전기/어댑터
  • PC 대기 전력 및 기타 보조 전력 공급 장치
  • DVD/PVR 및 기타 저전력 셋톱 디코더
  • 가전 제품, 공업용 시스템 및 측정기용 공급 장치

리소스
