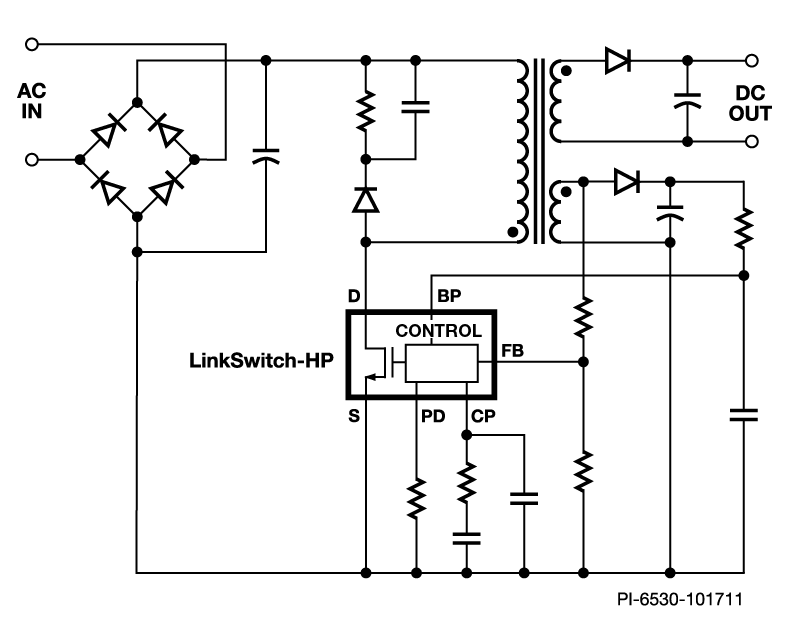

LinkSwitch-HP

정확한 1차측 레귤레이션(PSR)이 탑재된 에너지 효율적인 고전력 오프라인 스위처

애플리케이션
필터 제품 숨기기
1 - 50 개 제품 총 63 개 전시
Product Parts Table
제품
데이터 시트
오픈 프레임 (최대) - 폐쇄 형, 230V
출력 전력 (최대) - 오픈 프레임, 230V
항복 전압
IC 패키지
제어 체계
출력 전력 (최대) - 폐쇄 형, 범용
출력 전력 (최대) - 오픈 프레임, 범용
보호 기능
과열 반응
자동 재시작 및 과전압 응답
스위칭 주파수 (최대)
장착 유형
상품 유형
입력 전압 (최대)
입력 전압 (최소)
작동 온도 (최대)
작동 온도 (최소)
내부 스위치
제어 기능
스위칭 주파수 (최소)
토폴로지
2 차 응답
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart

LinkSwitch-HP 플라이백 파워 서플라이 IC 제품군은 1차측 레귤레이션(PSR) 컨트롤러 및 고전압 파워 MOSFET를 단일 패키지에 통합시킨 제품입니다. 이 IC 제품군에는 전력 범위 9W ~ 90W의 정전압(CV) 작동에 최적화된 디바이스가 포함되어 있습니다. LinkSwitch-HP IC 컨트롤러는 +/-5% CV의 정확성과 선택 가능한 전류 제한 기능, 래칭 또는 히스테리시스(Hysteresis) OVP/UVP/OTP 프로그래밍 기능을 제공합니다. 또한 전 입력 전압에 걸쳐 향상된 과부하 전력 보정 기능과 빠른 AC 리셋, 프로그래밍 가능한 셧다운 지연 시간 기능을 제공합니다.

제품의 주요 특징

EcoSmart – 에너지 효율성

  • 멀티모드 컨트롤을 통해 풀부하 범위에 걸쳐 효율 극대화
  • 30mW 미만의 무부하 소비 전력 달성(기준: 230VAC)
  • 1W의 입력 시, >75%의 효율 구현(기준: 230VAC)
  • 0.1W의 입력 시, >50%의 효율 구현(기준: 230VAC)

저가형 시스템용 설계에 높은 유연성 제공

  • 대폭 간소화된 파워 서플라이 설계
  • 132kHz에서 작동하여 트랜스포머 및 파워 서플라이의 크기 절감
  • 프로그래밍이 가능한 정확한 전류 제한 기능 탑재
  • 주파수 지터링으로 EMI 필터 비용 절감
  • 스타트업 스트레스를 최소화하기 위한 소프트 스타트 기능 내장
  • 725V MOSFET로 손쉽게 정격 전압 감소 규격 충족(LNK677x)
  • 시스템 비용이 가장 저렴한 650V MOSFET 사용(LNK676x/LNK666x)
  • 신속한 과도 응답 제품군 옵션(LNK666x)

다양한 보호 기능

  • 출력 회로 단락 보호(SCP)
  • 출력 과부하/과전류 보호(OPP, OCP)
  • 확장된 셧다운 지연 시간 옵션
  • 히스테리시스 또는 래칭 출력 과전압 보호(OVP)
  • 입력 브라운인/브라운아웃 보호(입력 UV)
  • 입력 과전압(OV) 셧다운 기능으로 라인 서지 내성 확대
  • 정확한 히스테리시스 또는 래칭 써멀 셧다운(OTP)

고급 친환경 패키지 옵션

  • eSIP-7C 패키지:
    • 수직 방향 실장 방식으로 PCB 풋프린트 최소화
    • 클립 또는 접착식 패드를 사용해 간단한 히트싱크 장착
  • eSOP-12B 패키지:
    • 초슬림 설계를 위한 로우 프로파일 표면 장착
    • 노출 패드와 SOURCE 핀을 통해 PCB로 열을 전달
    • 웨이브 솔더링 또는 IR 리플로우 솔더링 지원
  • eDIP-12B 패키지:
    • 초슬림 설계에 적합한 로우 프로파일 스루홀 장착
    • 노출 패드 또는 금속 히트싱트(옵션)를 통해 PCB로 열 전달
  • DRAIN 핀으로 연면거리 확장
  • 낮은 EMI를 위해 히트싱크를 SOURCE로 연결
  • 할로겐을 사용하지 않고 RoHS를 준수

응용 분야

  • LCD 모니터 및 TV
  • 어댑터
  • 가전 제품
  • 내장형 파워 서플라이(DVD, 셋톱박스)
  • 산업용 제품
