InnoSwitch3-Pro

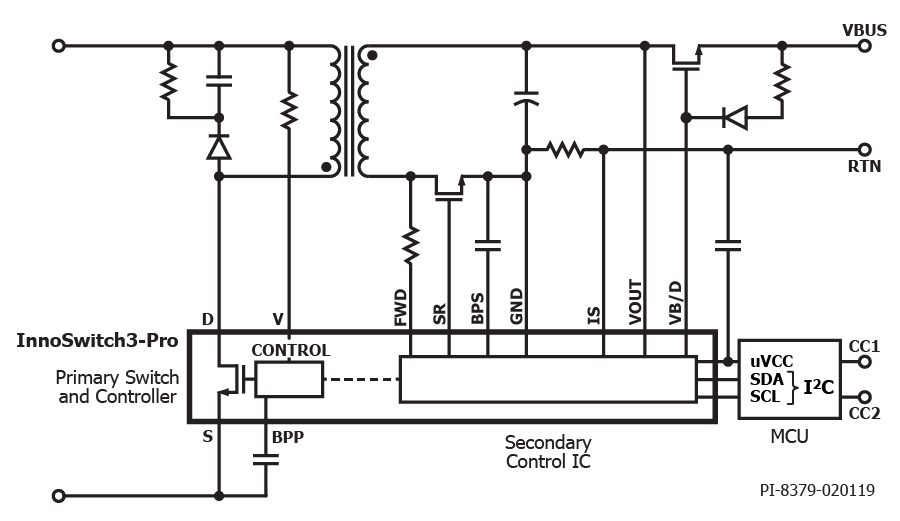

고전압 스위치, 동기 정류 및 FluxLink 피드백이 통합된 디지털 제어 가능한 오프라인 CV/CC QR 플라이백 스위처 IC

애플리케이션
필터 제품 숨기기
1 - 17 개 제품 총 17 개 전시
Product Parts Table
제품
데이터 시트
오픈 프레임 (최대) - 폐쇄 형, 230V
출력 전력 (최대) - 오픈 프레임, 230V
PowiGaN?
항복 전압
출력 전력 (최대) - 폐쇄 형, 범용
출력 전력 (최대) - 오픈 프레임, 범용
보호 기능
출력 프로파일
제어 체계
토폴로지
과열 반응
자동 재시작 및 과전압 응답
상품 유형
입력 전압 (최대)
입력 전압 (최소)
작동 온도 (최대)
작동 온도 (최소)
내부 스위치
케이블 드롭 보상
IC 패키지
출력 전압 (최소)
출력 전압 (최대)
스위칭 주파수 (최대)
스위칭 주파수 (최소)
MSL 등급
2 차 응답
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 45.0 W
Output Power (Max) - Open Frame, 230V 50.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 55.0 W
Output Power (Max) - Open Frame, 230V 65.0 W
Breakdown Voltage 650 V
Output Power (Max) - Enclosed, Univ 50.0 W
Output Power (Max) - Open Frame, Univ 55.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Open Frame, 230V 100.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 75.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 35.0 W
Output Power (Max) - Open Frame, 230V 40.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 27.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 45.0 W
Breakdown Voltage 725 V
Output Power (Max) - Enclosed, Univ 36.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Open Frame, 230V 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off
Data Sheet PDF 보기
Output Power (Max) - Enclosed, 230V 80.0 W
Output Power (Max) - Open Frame, 230V 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Output Power (Max) - Enclosed, Univ 65.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Output Profile CV/CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Cable Drop Compensation X
IC Package inSOP-24D
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart, Latch Off

InnoSwitch3-Pro 시리즈 IC 제품군은 완전히 프로그래밍 가능한 고효율 파워 서플라이, 특히 소형 케이스 내에 들어가는 파워 서플라이의 개발 및 제조를 획기적으로 간소화합니다. 유니버셜 I²C 인터페이스를 통해 출력 전압 및 전류의 동적 제어 및 기타 구성 가능한 다수의 기능을 실현합니다. 원격 측정은 프로그래밍된 기능 및 fault 모드의 리포팅 기능을 제공합니다.

InnoSwitch3-Pro 디바이스는 출력 전압 및 전류의 미세 조정(10mV, 50mA)이 필요한 AC/DC 파워 서플라이 애플리케이션에 적합합니다. 일반적인 구현은 시스템 마이크로프로세서 또는 전용 마이크로 컨트롤러 및 I²C 포트(전력 하위 시스템 동작을 구성, 제어 및 감시하는 데 사용됨)로 구성됩니다. uVCC 핀은 USB PD 어댑터 및 충전기 등 독립 실행형 구현의 마이크로프로세서에 바이어스를 제공합니다.

제품의 주요 특징

I²C 인터페이스를 통한 디지털 제어

  • 파워 서플라이 전압 및 전류의 유동적인 조정
  • 프로세서 중단 시 원격 측정 상태 다시 읽기
  • 구성 가능한 기능을 포괄하는 세트

PowiGaN 기술

높은 집적도 작은 공간

  • 멀티 모드 유사 공진(QR)/CCM 플라이백 컨트롤러, 고전압 스위치, 2차측 센싱 및 동기 정류 드라이버
  • 전체 라인 및 부하 범위에서 최적화된 효율
  • 집적된 FluxLink, HIPOT 절연, 피드백 링크
  • 즉각적인 과도 응답
  • 저렴한 비용의 N-채널 FET 시리즈 부하 스위치 구동
  • 외부 MCU용 통합된 3.6V 서플라이
  • 4.7 Ω SR 풀다운 저항 (H302 부품과 함께 사용 가능)

EcoSmart – 에너지 효율적

  • 30mW 미만의 무부하 전력(라인 센싱 및 MCU 포함)
  • 전 세계의 모든 에너지 효율성 규정 준수
  • 낮은 열 손실

고급 보호 및 안전 기능

  • 정확한 브라운인/브라운아웃 및 과전압 보호 기능을 갖춘 입력 전압 모니터
  • 독립 구성 응답을 통한 출력 OV/UV 고장 감지
  • 오픈 SR FET 게이트 감지
  • 히스테리시스 써멀 셧다운
  • 시스템 고장에 대한 프로그래밍 가능한 워치도그 타이머 기능
  • 파워 서플라이 상태 원격 측정 및 고장 모니터링
  • IS 핀 단락 / 출력 단락 회로 오류 검출 (H302 부품과 함께 사용 가능)

높은 안전성 및 규정 준수

  • 절연 강화
  • 절연 전압 > 4000VAC
  • 100% 생산 HIPOT 준수 테스트
  • UL1577 및 TUV(EN60950, EN62368) 안전성 승인

친환경 패키지

  • 할로겐 프리 및 RoHS 준수

애플리케이션

  • 고효율 USB PD 3.0 + PPS/QC 어댑터
  • QuickCharge, AFC, FCP, SCP를 포함하는 멀티 프로토콜 어댑터
  • Direct-charge 모바일 디바이스 충전기
  • Multi-chemistry tool 및 범용 배터리 충전기
  • 조정 가능한 CV 및 CC LED 밸러스트 설계

리소스
