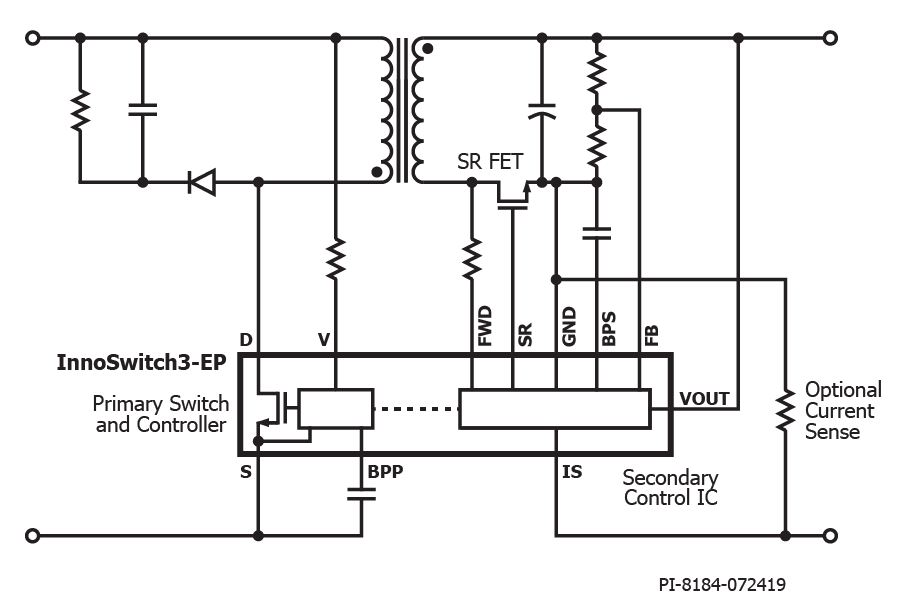

InnoSwitch3-EP

1 차측 스위치, 동기 정류 및 FluxLink 피드백을 갖춘 오프라인 CV/CC QR 플라이백 스위처 IC

애플리케이션
필터 제품 숨기기
1 - 30 개 제품 총 30 개 전시
Product Parts Table
제품
데이터 시트
출력 전력 (최대) - 오픈 프레임, 230V
출력 전력 (최대) - 오픈 프레임, 범용
PowiGaN?
항복 전압
보호 기능
출력 프로파일
제어 체계
토폴로지
과열 반응
자동 재시작 및 과전압 응답
상품 유형
입력 전압 (최대)
입력 전압 (최소)
작동 온도 (최대)
작동 온도 (최소)
내부 스위치
자동 재시작 임계 값
케이블 드롭 보상
IC 패키지
출력 전압 (최소)
출력 전압 (최대)
스위칭 주파수 (최대)
스위칭 주파수 (최소)
MSL 등급
2 차 응답
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 12.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 12.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 12.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 15.0 W
Output Power (Max) - Open Frame, Univ 12.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 15.0 W
Output Power (Max) - Open Frame, Univ 12.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 15.0 W
Output Power (Max) - Open Frame, Univ 12.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 25.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 25.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 25.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 30.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 30.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 30.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 30.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 40.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 40.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 40.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 40.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 45.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 45.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 45.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 45.0 W
Output Power (Max) - Open Frame, Univ 40.0 W
Breakdown Voltage 725 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 65.0 W
PowiGaN? Yes
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 85.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CC
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold 90%
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 85.0 W
Output Power (Max) - Open Frame, Univ 75.0 W
PowiGaN? Yes
Breakdown Voltage 750 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 12.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Breakdown Voltage 900 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 25.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Breakdown Voltage 900 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart
Data Sheet PDF 보기
Output Power (Max) - Open Frame, 230V 35.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Breakdown Voltage 900 V
Protection Features Input Overvoltage, Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature
Output Profile CV
Control Scheme Fluxlink
Topology Flyback
Over-Temperature Response Hysteretic
Auto-Restart & Overvoltage Response Auto-restart
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Auto-Restart Threshold OL
Cable Drop Compensation 0 mV
IC Package inSOP-24D
Voltage - Output (Min) 5 V
Voltage - Output (Max) 24 V
Switching Frequency (max) 95 kHz
Switching Frequency (min) 25 kHz
MSL Rating 3
Secondary Response Auto-restart

InnoSwitch3-EP IC 제품군은 플라이백 전력 컨버터(특히 고효율 및 소형의 사이즈를 요구하는 경우)의 설계 및 제조를 획기적으로 간소화합니다. InnoSwitch3-EP 제품군은 1차측 및 2차측 컨트롤러와 안정성이 검증된 피드백을 단일 IC에 통합합니다.

InnoSwitch3-EP 제품군 디바이스는 라인 과전압 및 저전압 보호, 출력 과전압 및 과전류 제한, 과열 셧다운을 비롯한 여러 보호 기능을 통합합니다. 해당 디바이스는 가전 제품, 서버 대기, 산업용 제품, 유틸리티 미터기, 스마트 그리드, 태양광 인버터 및 스마트 조명과 같은 애플리케이션에 필요한 래칭 및 오토-리스타트 동작의 일반적인 조합을 지원합니다.

제품의 주요 특징

높은 집적도, 작은 공간

  • 전 부하 범위에서 매우 높은 효율
  • 멀티모드 유사 공진(QR)/CCM 플라이백 컨트롤러, 고전압 스위치, 2차측 센싱 및 동기 정류 드라이버 통합
  • 가중 SSR 피드백 및 동기 FET를 통한 우수한 다출력 크로스 레귤레이션
  • FluxLink, HIPOT 절연, 피드백 링크 통합
  • 외부 부품의 영향을 받지 않는 뛰어난 CV/CC 정확성
  • 외부 출력 센싱을 사용하여 조정 가능한 정확한 출력 전류 센싱

PowiGaN 기술

EcoSmart – 에너지 효율적

  • 30 mW 미만의 무부하 전력 소비(라인 센싱 포함)
  • 전 세계의 모든 에너지 효율성 규정 준수
  • 낮은 열 손실

고급 보호 및 안전 기능

  • 오픈 SR FET-게이트 감지
  • 빠른 입력 라인 UV/OV 보호
  • 출력 OVP용 오토-리스타트 또는 래칭 고장 응답
  • 탁월한 서지 보호를위한 725/750 V 스위치
  • 산업 디자인 또는 추가 안전을위한 900 V 스위치

선택적 기능

  • 피크 전력 공급을위한 옵션으로 자동 재시작 출력 UV 차단

높은 안전성 및 규정 준수

  • 절연 강화
  • 절연 전압 > 4000VAC
  • 100% 생산 HIPOT 테스트
  • UL1577 및 TUV(EN60950, EN62368) 안전성 승인
  • 뛰어난 노이즈 내성을 통해 EN61000-4-2, 4-3(30V/m), 4-4, 4-5, 4-6, 4-8(100A/m) 및 4-9(1000A/m)를 포함하는 EN61000-4 세트 및 Ford FMC1278(RI-115)의 클래스 “A” 성능 기준을 구현하는 설계 실현
