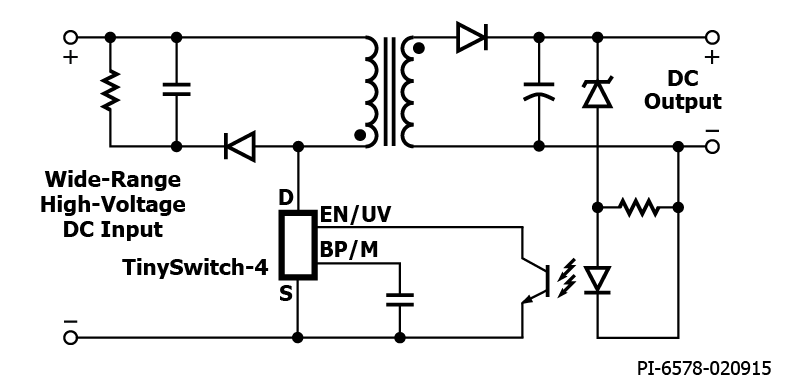

TinySwitch-4

高エネルギー効率の、過負荷電力の入力 補正対応オフライン スイッチング用 IC

アプリケーション
フィルタ 製品を隠す
1 ~ 19個の商品を表示、 合計19個
Product Parts Table
製品
データ シート
出力 (最大) 密閉型, ユニバーサル
出力 (最大) 密閉型, 230V
出力 (最大) オープンフレーム, ユニバーサル
出力 (最大) オープンフレーム, 230V
取付タイプ
絶縁破壊電圧
入力電圧 (最大)
入力電圧 (最小)
制御方式
保護機能
自動再起動と過電圧応答
過熱応答
二次応答
トポロジー
出力プロファイル
動作温度 - 最小
動作温度 - 最大
制御機能
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Output Power (Max) - Open Frame, 230V 11.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Output Power (Max) - Open Frame, 230V 11.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 5.0 W
Output Power (Max) - Enclosed, 230V 6.0 W
Output Power (Max) - Open Frame, Univ 8.5 W
Output Power (Max) - Open Frame, 230V 11.0 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, Univ 11.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 7.5 W
Output Power (Max) - Enclosed, 230V 11.0 W
Output Power (Max) - Open Frame, Univ 11.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Enclosed, 230V 8.5 W
Output Power (Max) - Open Frame, Univ 11.5 W
Output Power (Max) - Open Frame, 230V 15.0 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 9.5 W
Output Power (Max) - Enclosed, 230V 13.5 W
Output Power (Max) - Open Frame, Univ 15.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Output Power (Max) - Open Frame, 230V 19.0 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 7.0 W
Output Power (Max) - Enclosed, 230V 11.5 W
Output Power (Max) - Open Frame, Univ 18.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Enclosed, 230V 18.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 8.0 W
Output Power (Max) - Enclosed, 230V 13.0 W
Output Power (Max) - Open Frame, Univ 18.0 W
Output Power (Max) - Open Frame, 230V 23.5 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Enclosed, 230V 14.5 W
Output Power (Max) - Open Frame, Univ 19.5 W
Output Power (Max) - Open Frame, 230V 26.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 14.5 W
Output Power (Max) - Enclosed, 230V 23.0 W
Output Power (Max) - Open Frame, Univ 21.5 W
Output Power (Max) - Open Frame, 230V 28.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 10.0 W
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, Univ 21.5 W
Output Power (Max) - Open Frame, 230V 28.0 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 17.0 W
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Output Power (Max) - Open Frame, 230V 32.0 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 12.0 W
Output Power (Max) - Enclosed, 230V 18.0 W
Output Power (Max) - Open Frame, Univ 25.0 W
Output Power (Max) - Open Frame, 230V 32.0 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Enclosed, 230V 28.0 W
Output Power (Max) - Open Frame, Univ 28.5 W
Output Power (Max) - Open Frame, 230V 36.5 W
Mounting Type Surface Mount
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Data Sheet PDF を表示
Output Power (Max) - Enclosed, Univ 14.0 W
Output Power (Max) - Enclosed, 230V 20.0 W
Output Power (Max) - Open Frame, Univ 28.5 W
Output Power (Max) - Open Frame, 230V 36.5 W
Mounting Type Through Hole
Breakdown Voltage 725 V
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Control Scheme Secondary-side
Protection Features Output Undervoltage, Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Line-compensated Overload
Auto-Restart & Overvoltage Response Latch Off
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Topology Flyback
Output Profile CV
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control

概要

入力電圧補正過負荷保護機能により、TinySwitch-4 デバイスはユニバーサル入力電圧範囲で最大過負荷の変動を劇的に抑えます。 これは PC の待機電源や CV アダプタなどのアプリケーションで過負荷異常状態時の最大出力を制限するのに特に有用です。 また、TinySwitch-4 には 725 V MOSFET が搭載されており、跳ね返り電圧及びバス電圧の高い設計において容易に 80% のディレーティングを可能にします。 BP/M ピンにより MOSFET のカレントリミットを調整することができ、様々な実装状況において電力供給と効率の最適化を図ることができます。 ON 時間延長機能は、低入力電圧時のレギュレーション範囲を拡大し、低い入力容量で必要な保持時間が得られます。

製品ハイライト

最小システム コスト、高い設計自由度

  • 725 V 耐圧の MOSFET
    • BV ディレーティング マージンを拡大
  • 入力電圧補正過負荷保護 - 追加部品不要
    • ユニバーサル入力電圧範囲で最大過負荷の変動を激減
  • ±5% のターンオン UV スレッシュホールド: 外付け抵抗ひとつで入力電圧を検出
  • シンプルな ON/OFF 制御で位相補正回路が不要
  • BP/M コンデンサの値によりカレント リミットを選択可能
    • 回路の再設計無しに、最適な TinySwitch-4 デバイスへの置き換えが可能
  • 高精度 I2f パラメータ公差によりシステム コストを低減
    • MOSFET 及びトランスの使用率を最大化
  • ON 時間延長 - 低入力レギュレーション範囲/保持時間を拡大し、入力コンデンサを削減
  • 自己バイアス: バイアス巻線及びバイアス部品不要
  • 周波数ジッタリングにより、EMI フィルタ コストを削減

高度な安全機能及び信頼性機能

  • 高精度な自動復帰タイプ過熱保護機能により手動リセット不要
  • オートリスタート機能により、ショート、オープン ループ不良時の最大電力を 3% 以下に低減
  • オプションのツェナーで出力過電圧シャットダウンが可能
    • オプションの UV 外付け抵抗で高速 AC リセットが可能
  • 非常に少ない部品点数により信頼性を高め、片面基板レイアウトが可能に
  • バンド幅が広く、オーバーシュートの無い速いターンオンと優れた負荷過渡応答を実現

EcoSmart - 高エネルギー効率

  • 各国のすべてのエネルギー効率規制に容易に適合
  • 無負荷時はバイアス巻線有りで 30 mW 以下、バイアス巻線無しで 265 VAC 入力時 150 mW 以下
  • ON/OFF 制御により、軽負荷時でも高い効率を維持 - CEC 規制及び ErP 待機電力要求に適応

用途

  • PC 待機電源やその他の補助電源
  • DVD/PVR、その他の低電力セット トップ デコーダ
  • 家電製品、産業用装置、測定機器類の電源
  • 携帯電話/コードレス電話、PDA、デジタル カメラ、MP3/ポータブル オーディオ、電気カミソリ等の充電器/アダプタ
