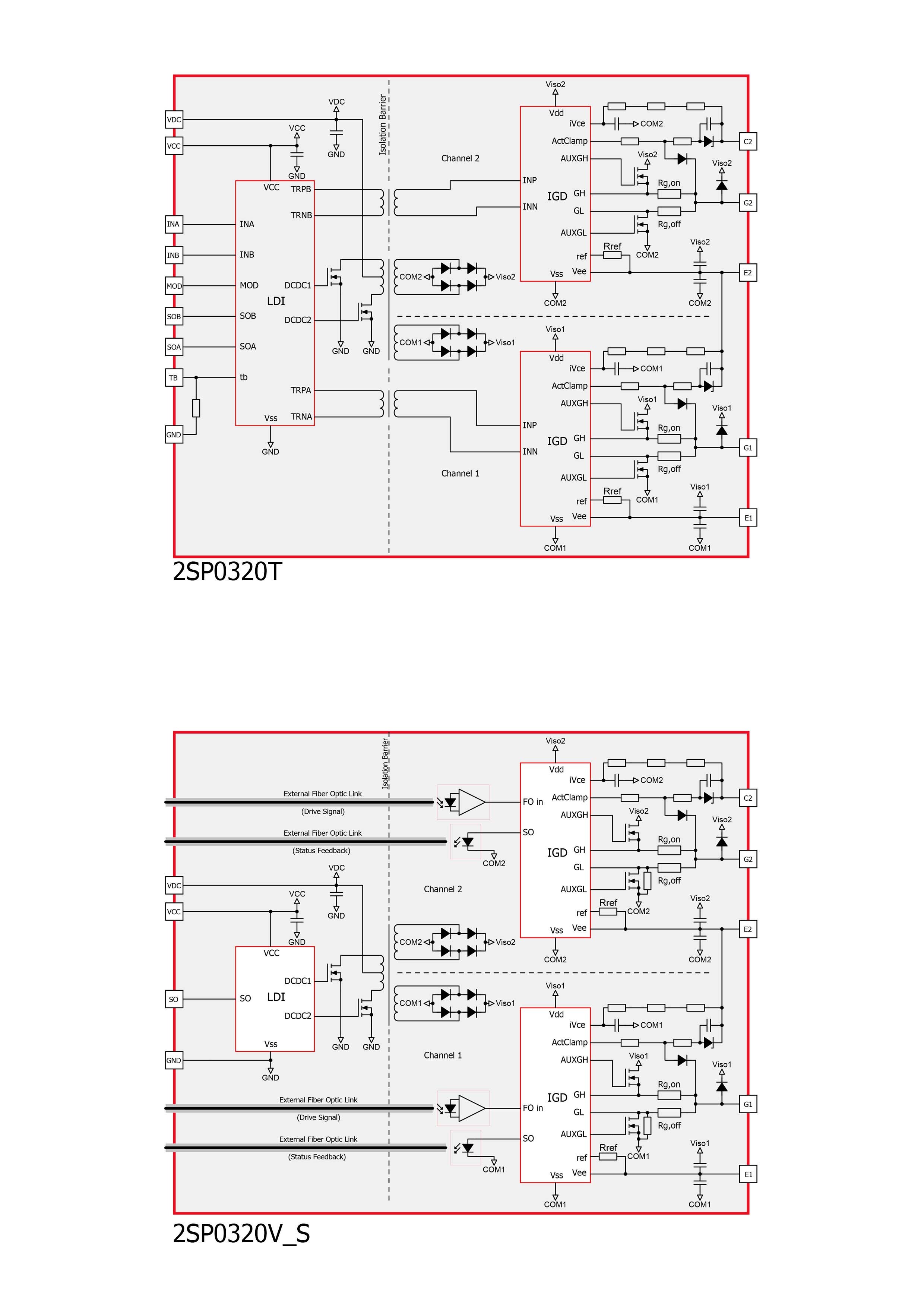

SCALE-2 2SP0320T Module
SCALE-2 2SP0320T Module
PI 线上直播点看 - SCALE 门极驱动器

2SP0320

PrimePACK™ IGBT モジュール用のデュアルチャンネル SCALE-2 プラグアンドプレイ ドライバ、電気的インターフェースまたは光ファイバ インターフェース

アプリケーション
AC Motors Icon
Motor Control Icon
Servo Motor Icon
Railway Icon
Solar Icon
Industrial Motors Icon
Industrial Icon
Wind Icon
フィルタ 製品を隠す
  • フィルタ
    • 高度なフィルター
      • Supported Module(s)
        サポートされているモジュール
      • Protection Features
        保護機能
      • Interface Type
        インターフェイスタイプ
      • Supported Topologies
        サポートされているトポロジ
      • Max Switching Frequency (kHz)
        最大スイッチング周波数 (kHz)
1 ~ 50個の商品を表示、 合計118個
Product Parts
製品
データ シート
IGBT 電圧クラス
ゲートターンオン電圧
ゲートターンオフ電圧
最大スイッチング周波数 (kHz)
Gate Peak Current (Max)
サポートされているモジュールタイプ
サポートされているモジュール
IGBTのメーカー
チャネル数
樹脂コーティング？
ロジック入力電圧
保護機能
技術
インターフェイスタイプ
サポートされているトポロジ
供給電圧 (標準)
出力電力/チャネル-最大
隔離タイプ
分離技術
時間 - 出力低下
時間 - 出力の上昇
ドライブモード
Connection Type to IGBT
SCALE-2 2SP0320T Module

2SP0320S2A0-12

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Number of Channels 2
Conformal Coated? No
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320S2A0-17

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Number of Channels 2
Conformal Coated? No
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320S2A0-2MBI650VXA-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Max Switching Frequency 14.5 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI650VXA-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320S2A0-FF1200R12IE5

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1200R12IE5
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320S2A0C-2MBI650VXA-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Max Switching Frequency 14.5 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI650VXA-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320S2A0C-FF1200R12IE5

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --9.9 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1200R12IE5
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Fiber Optic
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-12

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-17

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1000VXB-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 11.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1000VXB-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1400VXB-120E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-120E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1400VXB-120P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-120P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1400VXB-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1400VXB-170P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-170P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI1800XXF170-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1800XXF170-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI650VXA-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 14.5 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI650VXA-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI900VXA-120E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 12.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI900VXA-120E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-2MBI900VXA-120P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 12.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI900VXA-120P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-DP1000B1700T103715

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 15.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1000B1700T103715
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-DP1400B1200T103714

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 16.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1400B1200T103714
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-DP1400B1700TU103726

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1400B1700TU103726
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF1000R17IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 13.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1000R17IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF1000R17IE4D_B2

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 13.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1000R17IE4D_B2
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF1200R12IE5

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1200R12IE5
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF1400R12IP4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 14.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1400R12IP4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF1400R17IP4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 10.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1400R17IP4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF450R12IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 37.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF450R12IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF450R17IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 28.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF450R17IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF600R12IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 28.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF600R12IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF650R17IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF650R17IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF650R17IE4D_B2

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF650R17IE4D_B2
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF900R12IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 19.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF900R12IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0-FF900R12IP4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF900R12IP4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? No
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1000VXB-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 11.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1000VXB-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1400VXB-120E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-120E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1400VXB-120P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-120P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1400VXB-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 8.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1400VXB-170P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1400VXB-170P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI1800XXF170-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI1800XXF170-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI650VXA-170E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 14.5 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI650VXA-170E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI900VXA-120E-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 12.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI900VXA-120E-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-2MBI900VXA-120P-50

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 12.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) 2MBI900VXA-120P-50
IGBT Manufacturer Fuji
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-DP1000B1700T103715

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 15.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1000B1700T103715
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-DP1400B1200T103714

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 16.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1400B1200T103714
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-DP1400B1700TU103726

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 9.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) DP1400B1700TU103726
IGBT Manufacturer Danfoss
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF1000R17IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 13.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1000R17IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF1200R12IE5

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 20.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1200R12IE5
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF1400R12IP4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 14.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1400R12IP4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF1400R17IP4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 10.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF1400R17IP4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF450R12IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1200 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 37.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF450R12IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
SCALE-2 2SP0320T Module

2SP0320T2A0C-FF450R17IE4

詳細を見る
Data Sheet PDF を表示
IGBT Voltage Class 1700 V
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage --10.4 V
Max Switching Frequency 28.0 kHz
Gate Peak Current (Max) +20 A
Supported Module Type IGBT
Supported Module(s) FF450R17IE4
IGBT Manufacturer Infineon
Number of Channels 2
Conformal Coated? Yes
Logic Input Voltage 5
Protection Features Adv Active Clamping, Over-voltage, Short Circuit, UVLO(Sec-side), UVLO(Pri-side)
Technology SCALE-2
Interface Type Electrical
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Supply Voltage (Typ) 15 V
Power - Output/Channel (Max) 3.0 W
Isolation Type Reinforced
Isolation Technology Galvanic
Time - Output Fall 25 ns
Time - Output Rise 7 ns
Driving Mode Halfbridge, Direct-Independent
Connection Type to IGBT Direct
1 ~ 50個の商品を表示、 合計118個
