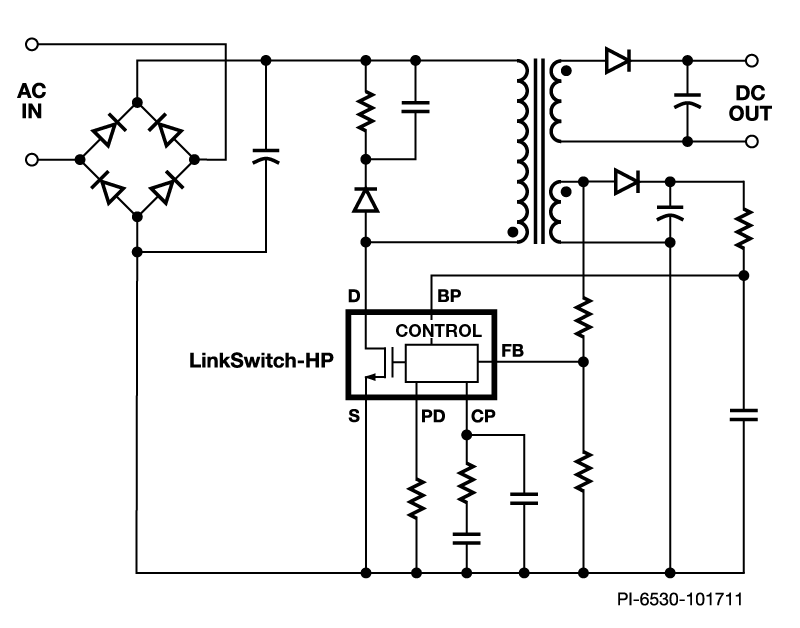

標準的なアプリケーション回路図
LinkSwitch-HP in eDIP-12B Package
LinkSwitch-HP in eSIP-7C Package
標準的なアプリケーション回路図
LinkSwitch-HP in eDIP-12B Package
LinkSwitch-HP製品デモ
+ 1 LinkSwitch-HP in eSIP-7C Package

LinkSwitch-HP

高精度な一次側レギュレーション (PSR)に対応した高エネルギー効率/高電力 オフライン スイッチング電源用 IC

アプリケーション
Appliances Icon
Chargers & Adapters Icon
Meter Icon
TV
設計開始
フィルタ 製品を隠す
フィルタを非表示
Filter Products
1 ~ 50個の商品を表示、 合計63個
Product Parts Table
製品
データ シート
出力 (最大) 密閉型, 230V
出力 (最大) オープンフレーム, 230V
絶縁破壊電圧
ICパッケージ
制御方式
出力 (最大) 密閉型, ユニバーサル
出力 (最大) オープンフレーム, ユニバーサル
保護機能
過熱応答
自動再起動と過電圧応答
スイッチング周波数 (最大)
取付タイプ
製品タイプ
入力電圧 (最大)
入力電圧 (最小)
動作温度 - 最大
動作温度 - 最小
内部スイッチ
制御機能
スイッチング周波数 (最小)
トポロジー
二次応答
linkswitch-hp_esip-7c

LNK6663E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6663K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6663V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6664E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6664K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6664V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6665E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6665K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6665V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6666E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6666K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6666V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6667E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6667K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6667V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6668E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6668K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6668V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6669E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6669K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6669V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6763E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6763K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6763V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6764E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6764K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6764V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6765E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6765K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 42.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 31.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6765V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6766E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 88.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 68.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6766K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 37.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6766V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6767E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 117.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6767K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6767V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6768E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 98.0 W
Output Power (Max) - Open Frame, 230V 135.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 63.0 W
Output Power (Max) - Open Frame, Univ 104.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6768K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 68.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 48.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6768V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 21.0 W
Output Power (Max) - Open Frame, Univ 34.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6769E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 111.0 W
Output Power (Max) - Open Frame, 230V 153.0 W
Breakdown Voltage 650 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 72.0 W
Output Power (Max) - Open Frame, Univ 118.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6769K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 77.0 W
Breakdown Voltage 650 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 56.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6769V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 33.0 W
Output Power (Max) - Open Frame, 230V 54.0 W
Breakdown Voltage 650 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 25.0 W
Output Power (Max) - Open Frame, Univ 39.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6773E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 27.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6773K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 35.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 21.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6773V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6774E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 47.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 36.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esop-12b

LNK6774K

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 39.0 W
Breakdown Voltage 725 V
IC Package eSOP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 28.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Surface Mount
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
LinkSwitch-HP eDIP-12B Image

LNK6774V

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
Breakdown Voltage 725 V
IC Package eDIP-12B
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
Topology Flyback
Secondary Response Auto-restart
linkswitch-hp_esip-7c

LNK6775E

詳細を見る
Data Sheet PDF を表示
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 59.0 W
Breakdown Voltage 725 V
IC Package eSIP-7C
Control Scheme Primary-side
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 45.0 W
Protection Features Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload, Line-compensated Overload
Over-Temperature Response Hysteretic, Latch Off
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 136 kHz
Mounting Type Through Hole
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Internal Switch Yes
Control Features Selectable Current Limit, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response, On/Off Control
Switching Frequency (min) 120 kHz
