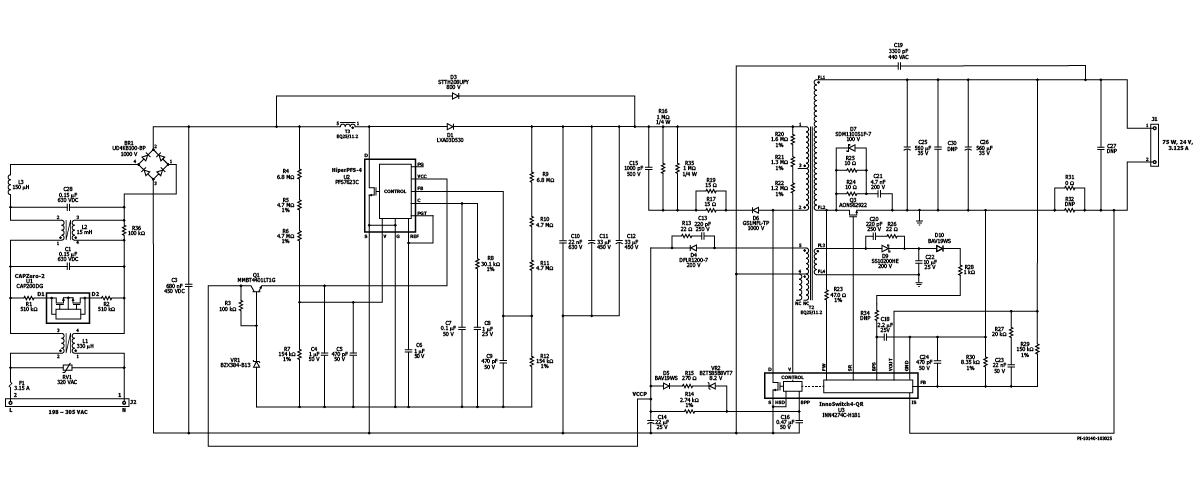

DER-1061 - 75 W Low-Profile LED Driver Using InnoSwitch4-QR (750 V PowiGaN), CAPZero-2 and HiperPFS-4
75 W, 24 V low-profile constant voltage LED driver for industrial and smart lighting using 750 V PowiGaN-based InnoSwitch4-QR (INN4274C-H181), CAPZero-2 (CAP200DG) and HiperPFS-4 (PFS7623C)
- Input: 198 VAC - 305 VAC
- Nominal Output: 24 V , 3.13 A
- > 92% full load efficiency at 230 VAC
- Low profile <16 mm high
- Low components count (80 parts)
- High power factor, >0.93 from 230 - 277 VAC
- Low THD, <10 % from 230 - 277 VAC
- High efficiency eliminates heatsinks
