DER-1001 - 100 W Programmable Industrial Power Supply with 5-28 V Adjustable Output Using InnoSwitch5-Pro

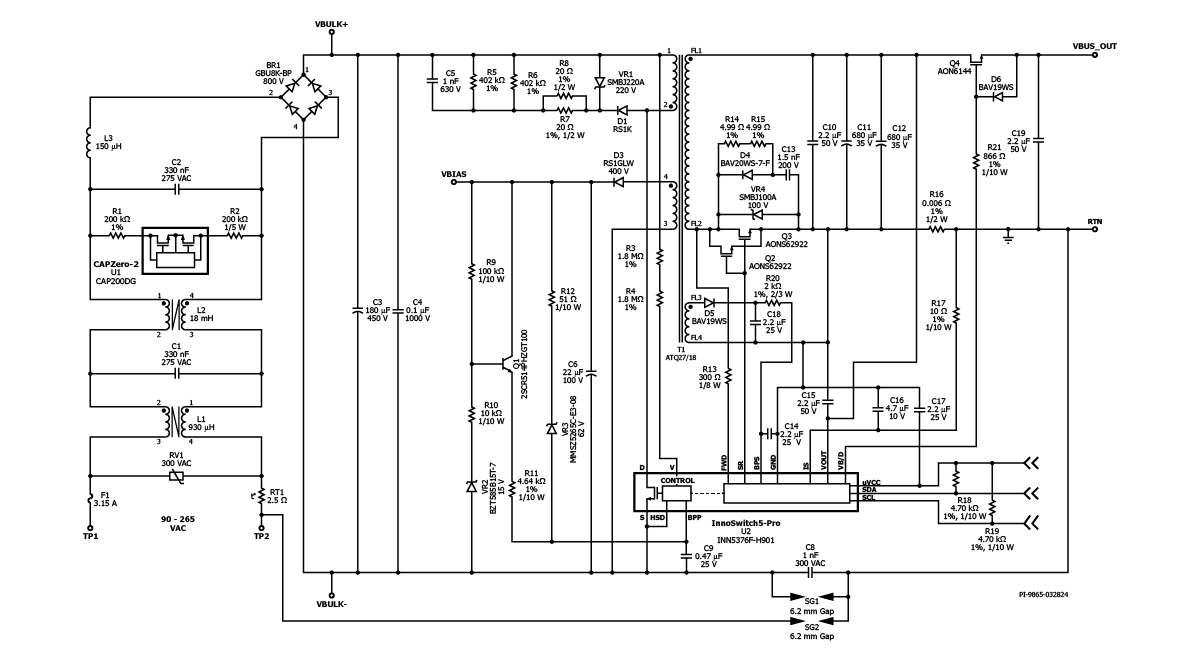

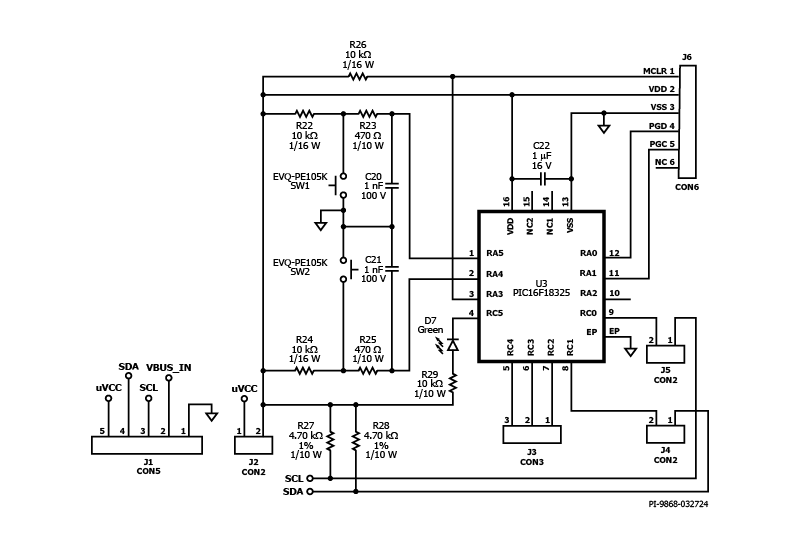

100 W isolated flyback power supply with adjustable output for industrial applications using InnoSwitch5-Pro digitally programmable switcher IC (INN5.376F-H901)

  • Comprehensive protection features with fault monitoring and telemetry reporting of power supply status.
  • Advanced SR FET control enables Zero voltage switching (ZVS) across line and output voltage range.
  • Easily meets DOE6 and CoC v5 2016 average efficiency requirements
    • 5 V output: 92.5% at 115 VAC (16.25 W) (10.7% margin);
      92.6% at 230 VAC (25 W) (10.8% margin)
    • 20 V output: 92.3% at 115 VAC (65 W) (3.3% margin);
      93.5% at 230 VAC (100 W) (4.49% margin)
    • 28 V output: 91% at 115 VAC (65 W) (2.05% margin);
      92.8% at 230 VAC (100 W) (3.81% margin)
  • Meets CoC v5 2016 10% requirements with >8% margin
  • <35 mW no-load input power at 230 VAC
  • Easily meets CISPR22 / EN55022 Class B conducted EMI
  • >5 dB margin -worst case (28 V / 3.57 A (100 W), 230 VAC)
  • High power density: 11.13 W / in3 without enclosure
    • 3.31” x 2.95” x 0.92” form factor
  • Only 84 electrical components
